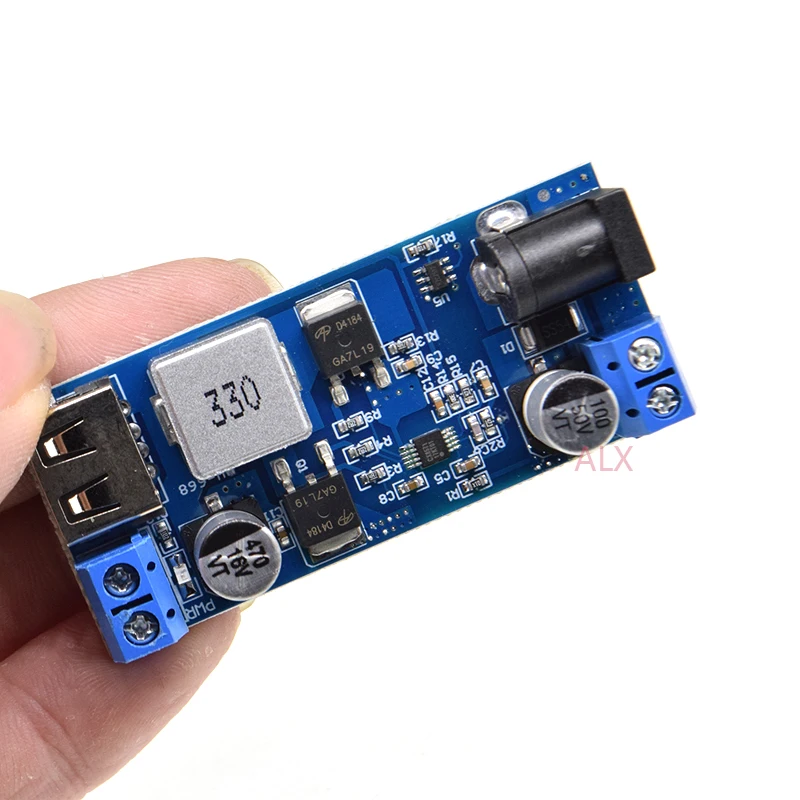

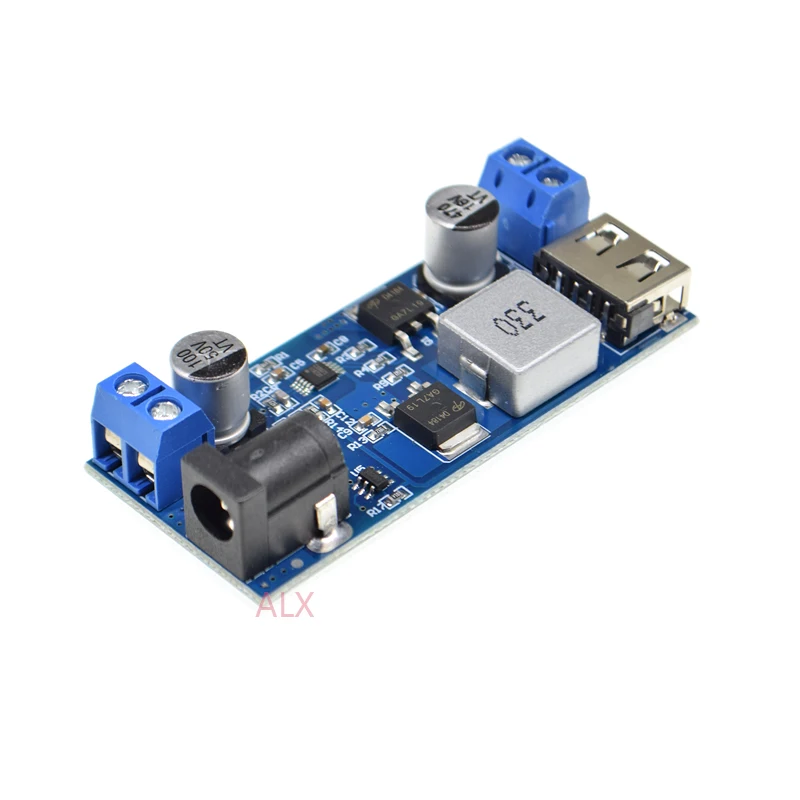

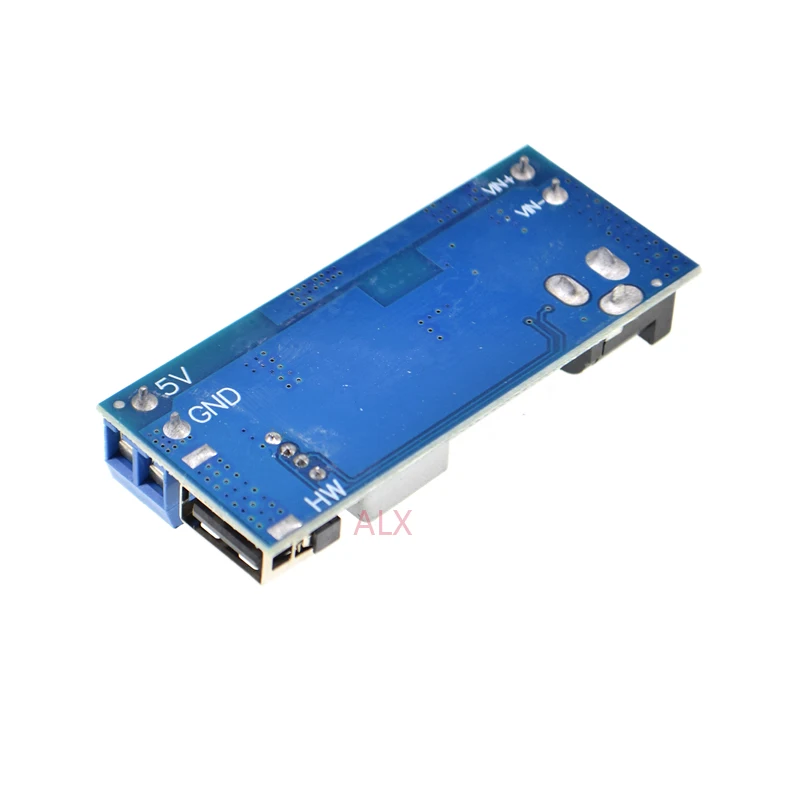

5A DC-DC 9V 12V 24V TO 5V step-down Voltage regulator power supply module board Buck Converter with usb out for phone Charging
Original price was: $17.40.$8.12Current price is: $8.12.
96792 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: ALINSIN
Current Type: DC
High-concerned chemical: None
Model Number: LM2596
Origin: Mainland China
Phase: single phase
Use: SVC
is_customized: Yes
Highlights of the module:
1. Synchronous rectification scheme, wide voltage, large current, high efficiency;
2. With DC plug and wiring terminal, easy to use;
3. USB port and quick charging identification chip are compatible with android iphone
Product parameters:
1: working voltage: DC 9V–36V;
2: output voltage: 5.2v /5A/25W
3. Output capacity:
9~24V input: output 5.2v /6A/30W
24~32V input: output 5.2v /5A/25W
32~36V input: output 5.2v / 3.5a /18W
4: size: 63*27*10mm (length * width * height)
5: weight: 22g
