5.8G 3 Channel Video Switcher Module 3 way Video Switch Unit for RC FPV Camera Drone

SKU: _d6lqtpjmiq7000deckvg Category: Others

Description

SPECIFICATIONS

Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Cars

Four-wheel Drive Attributes: Motors

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Metal

Model Number: VZFR0612

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Gyros

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: Other

Use: Vehicles & Remote Control Toys

Wheelbase: Screws

100% Brand New and High Quality!

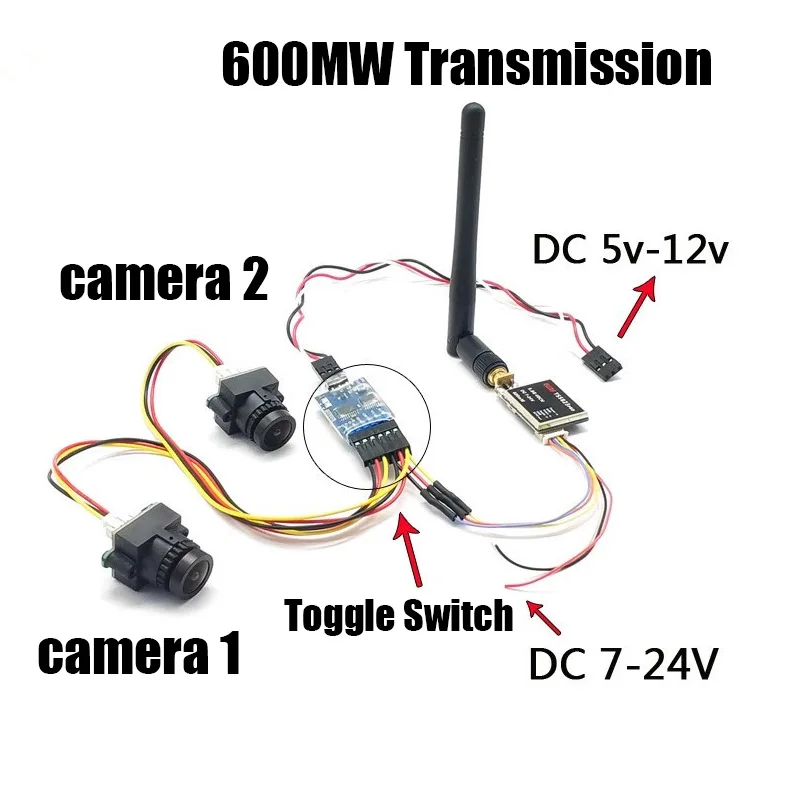

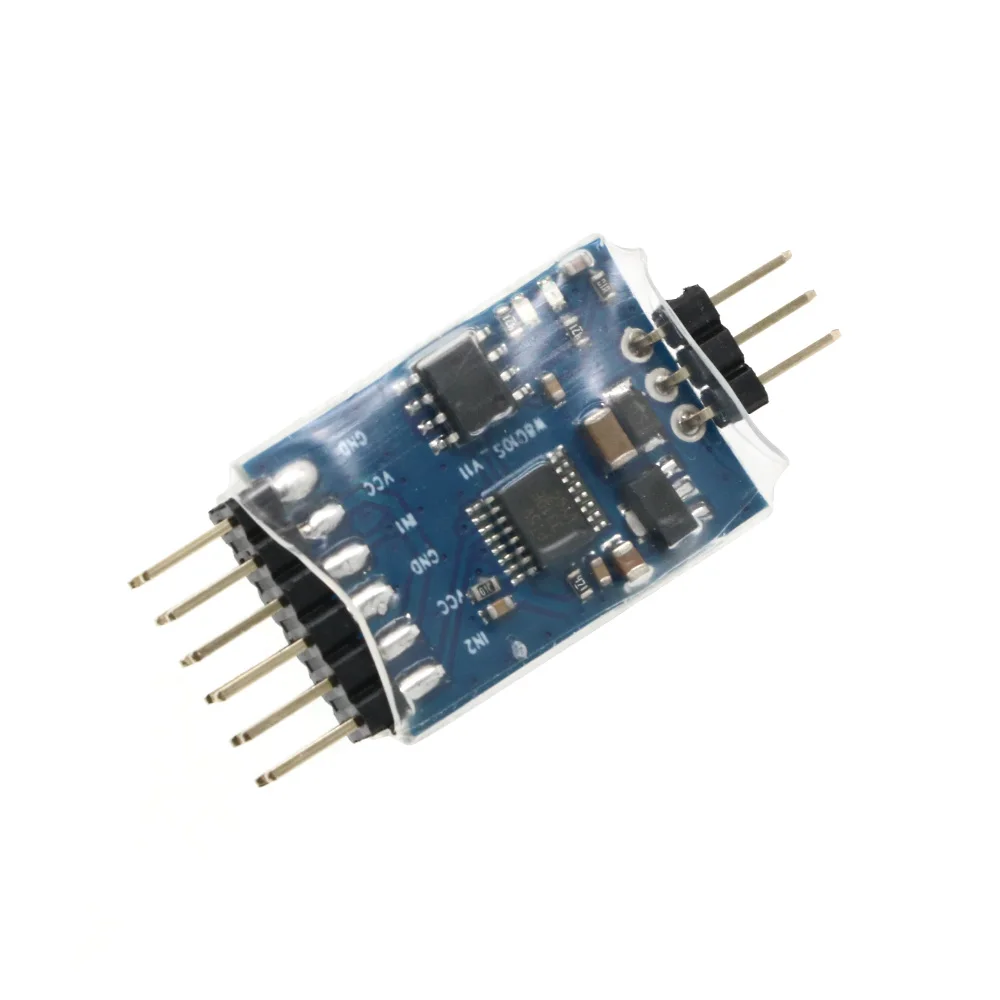

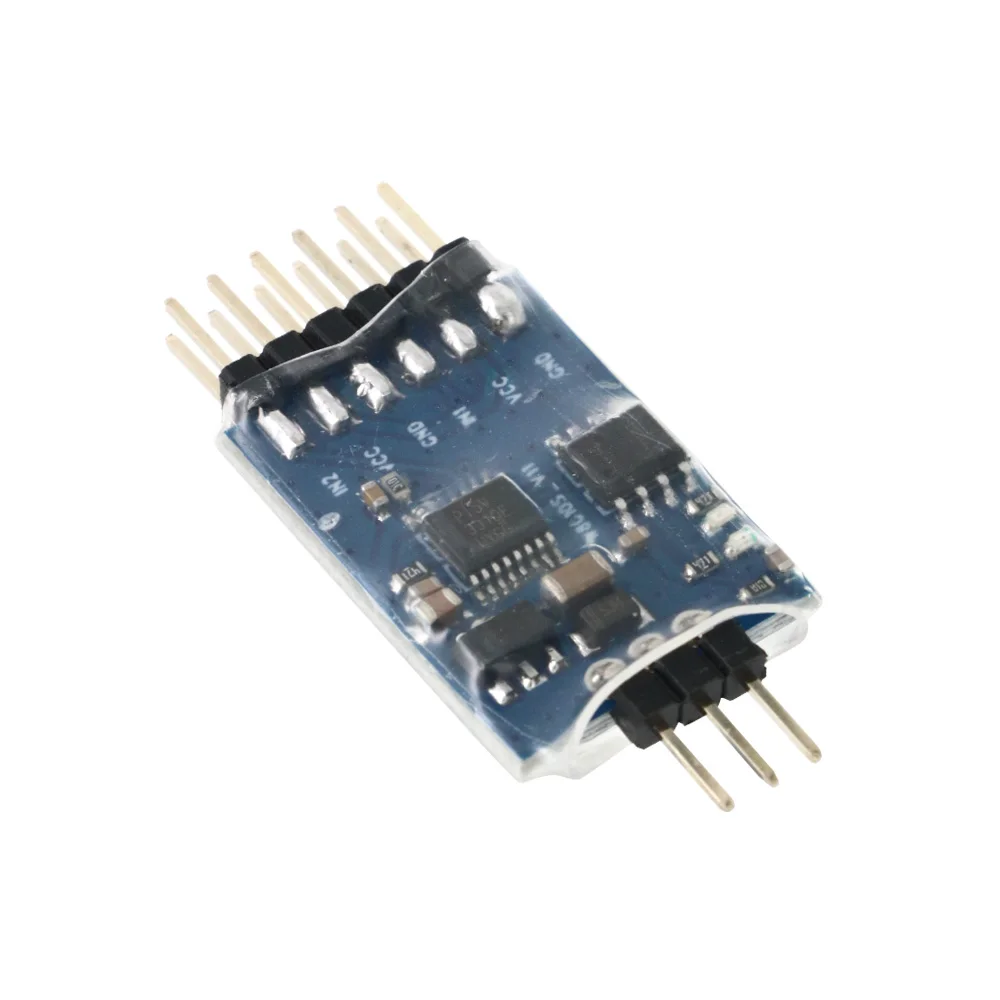

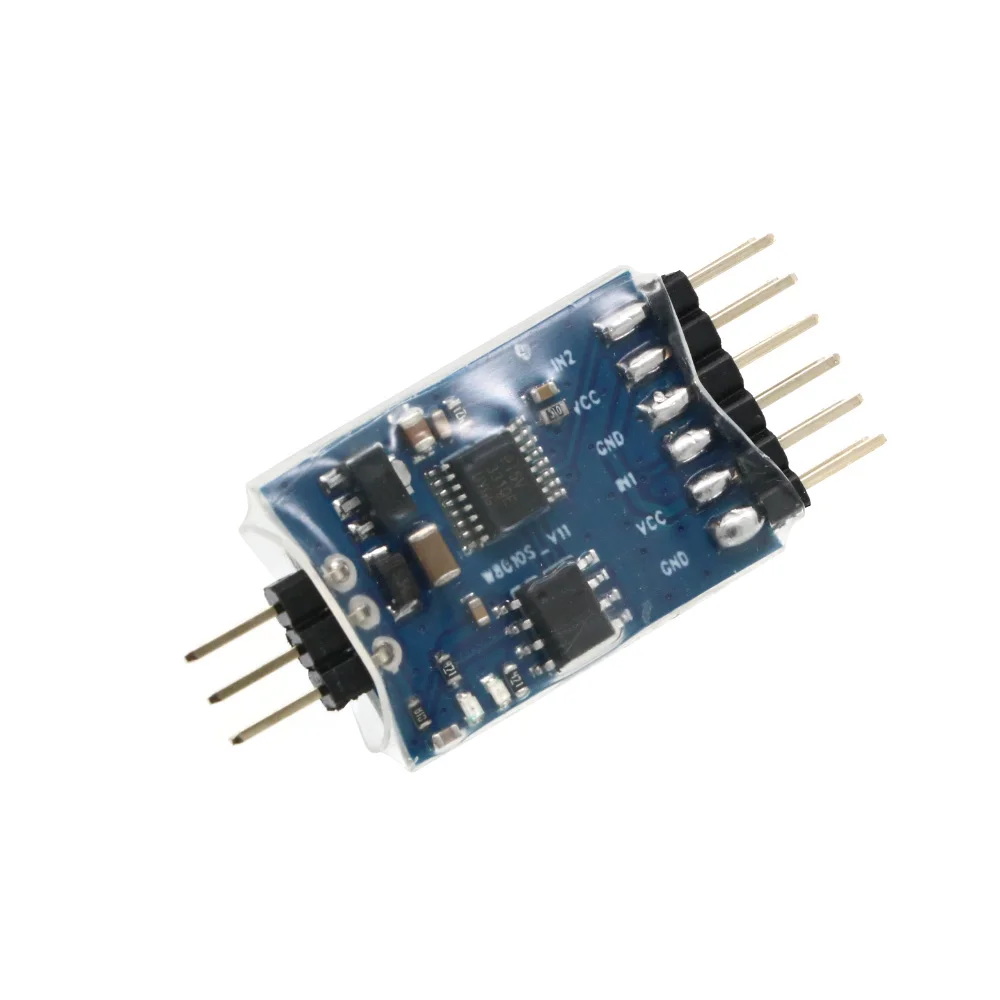

This module can connect 3 video sources and you can switch between different video sources with a 3 position switch to your ground station. If you have multiple cameras on your plane, this is what you need.

3 channel Switchover module,adopts high speed video switch chip,effectively reduce the vibration of the Video image.

The control channel can be any proportional channel or 3-position switch channel. (2-position switch channel can only switch within two video input signals)

Specifications:

Model: PV3IN1

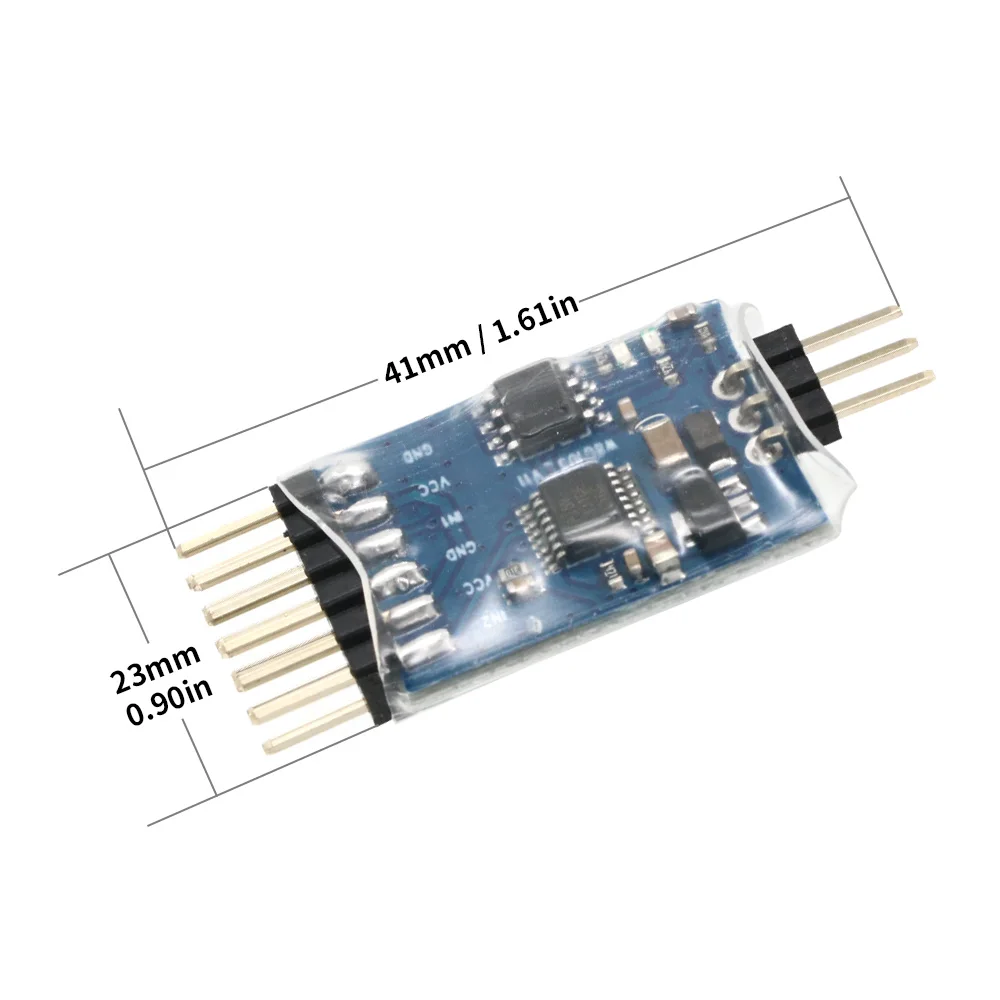

Size: approx. 4.0*1.8*0.5cm
Input voltage: 4.8-6V
Input channels:3
Output channel: 1Video signal impedance: 75Ω

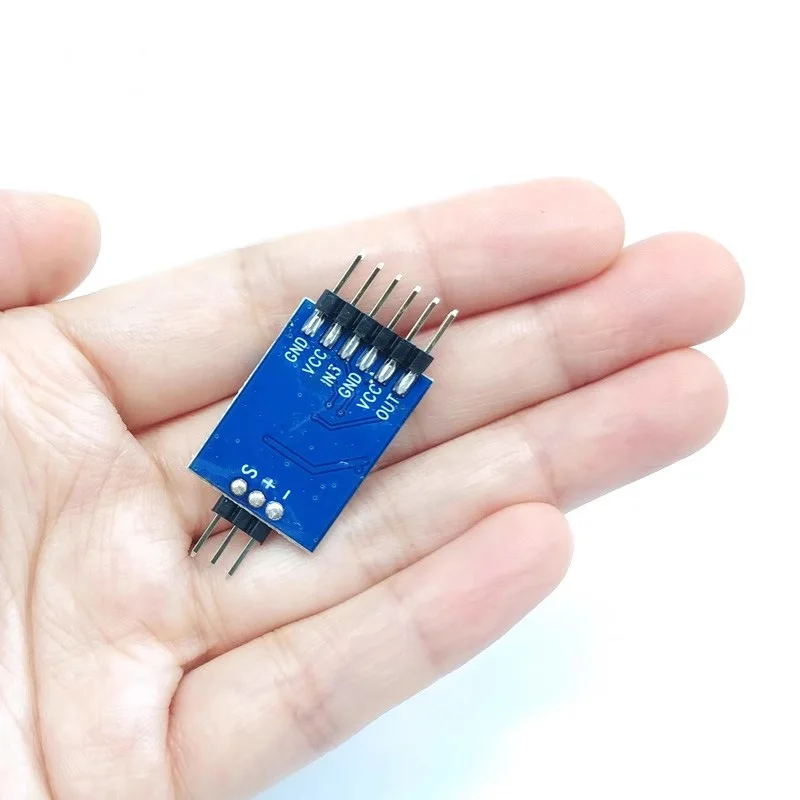

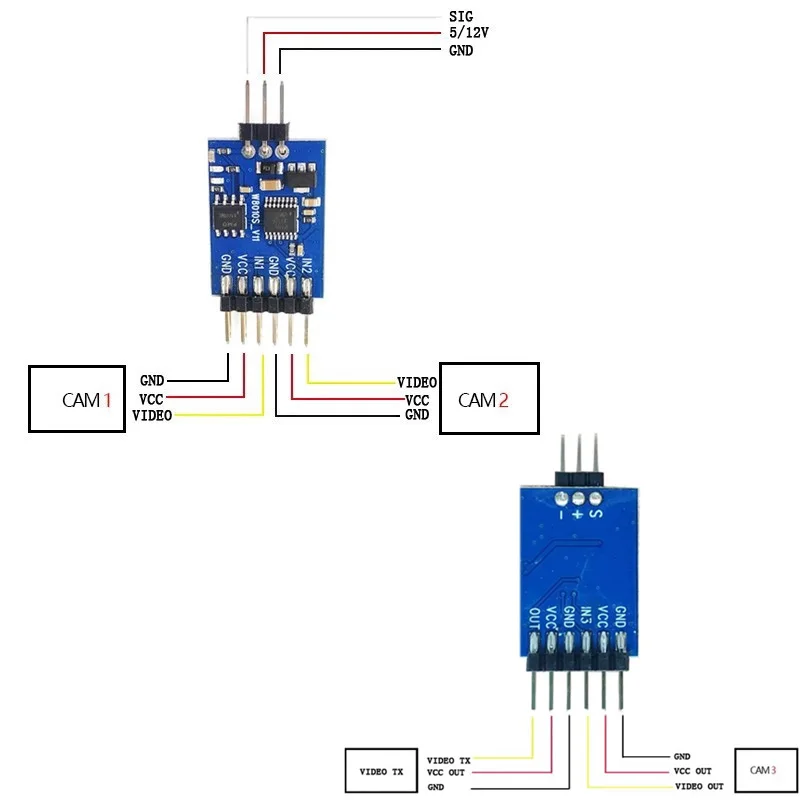

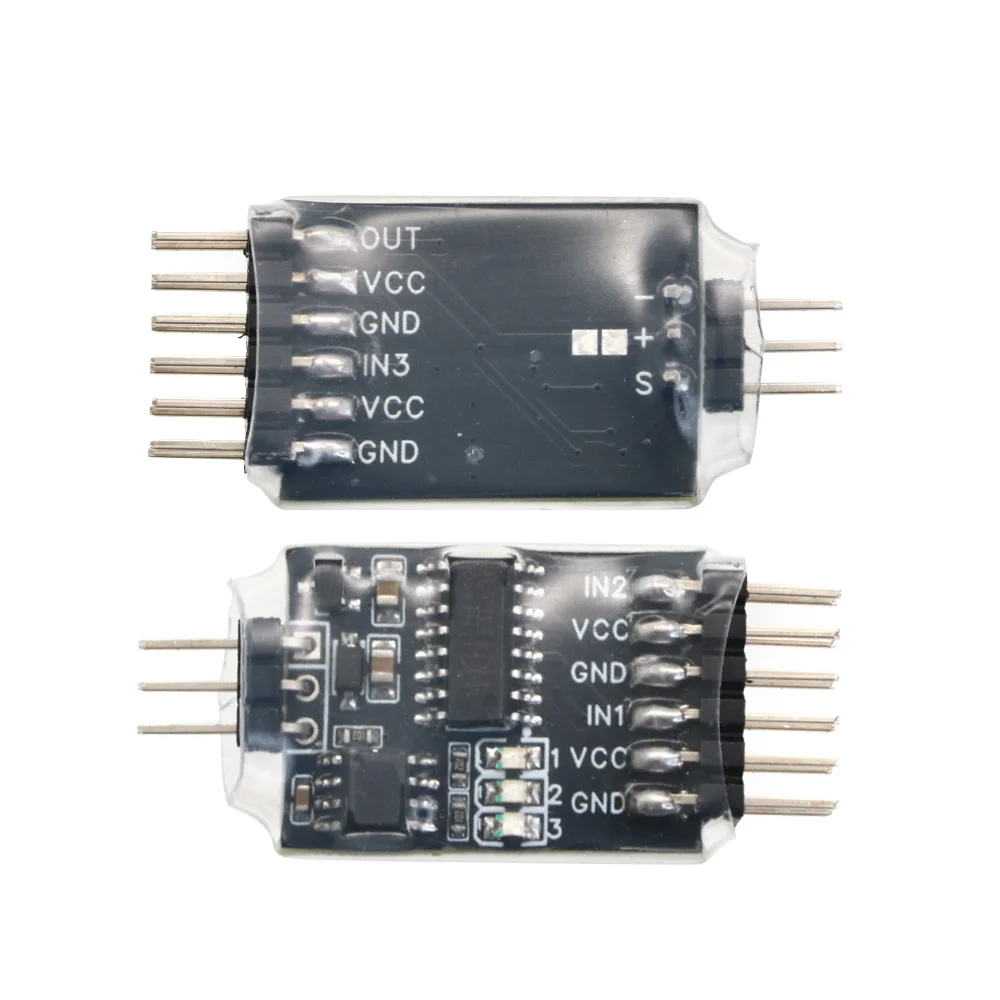

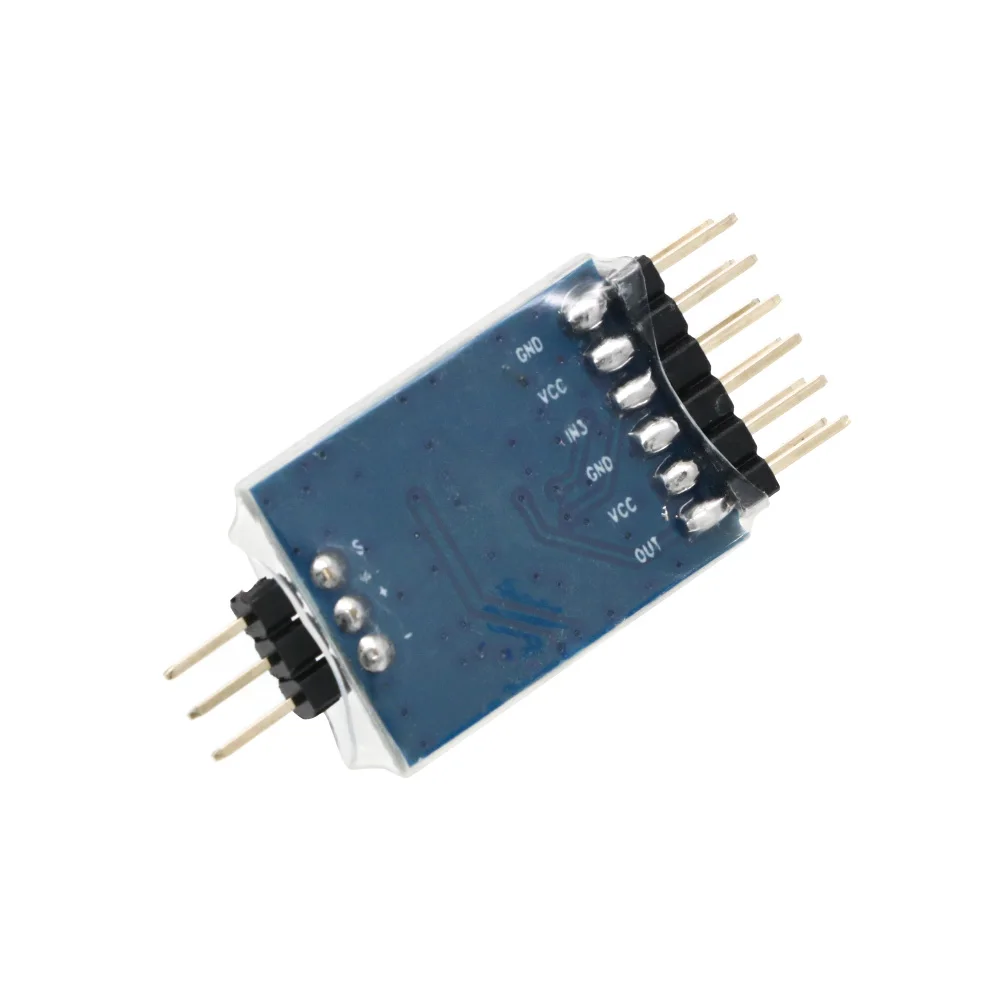

Port ""in"" is video signal input,IN1,IN2,IN3,OUT is video output
""-"" is negtive pole,""+"" suspend,""S"" is receiving Video signa

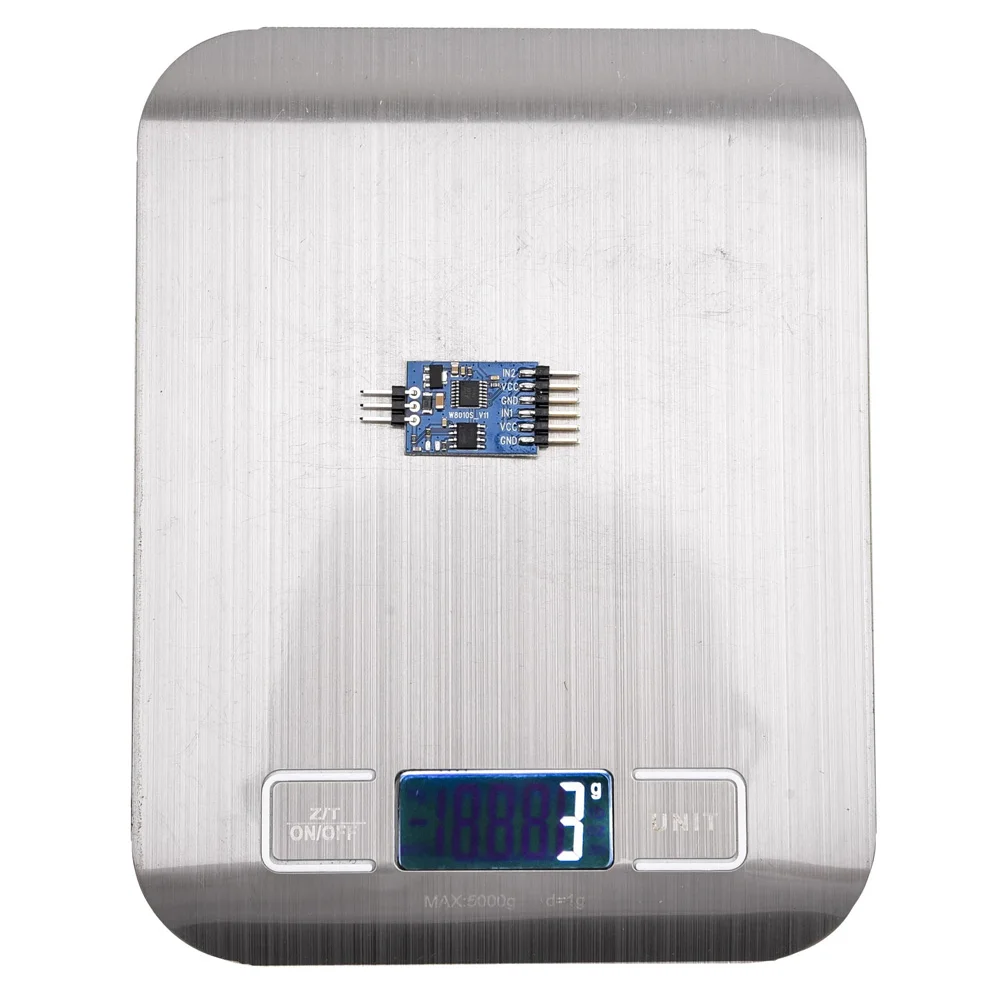

Net Weight: 3g
