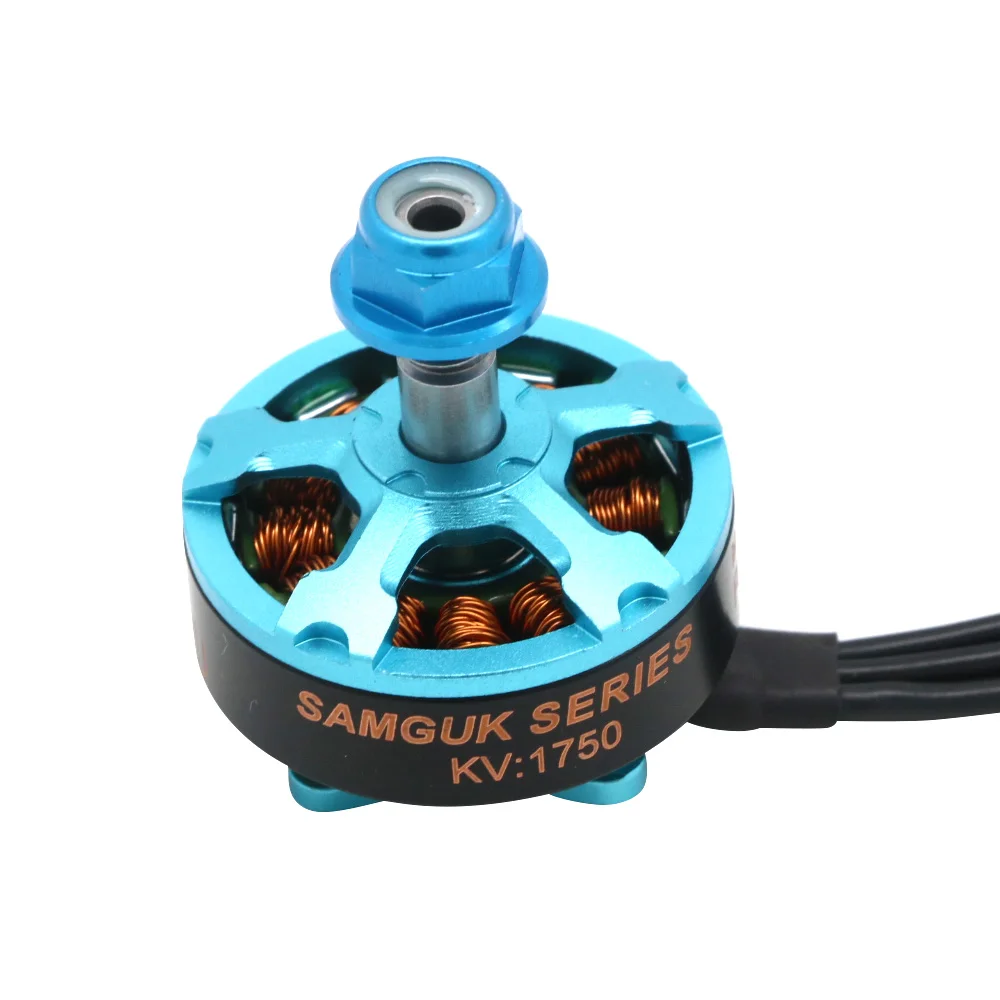

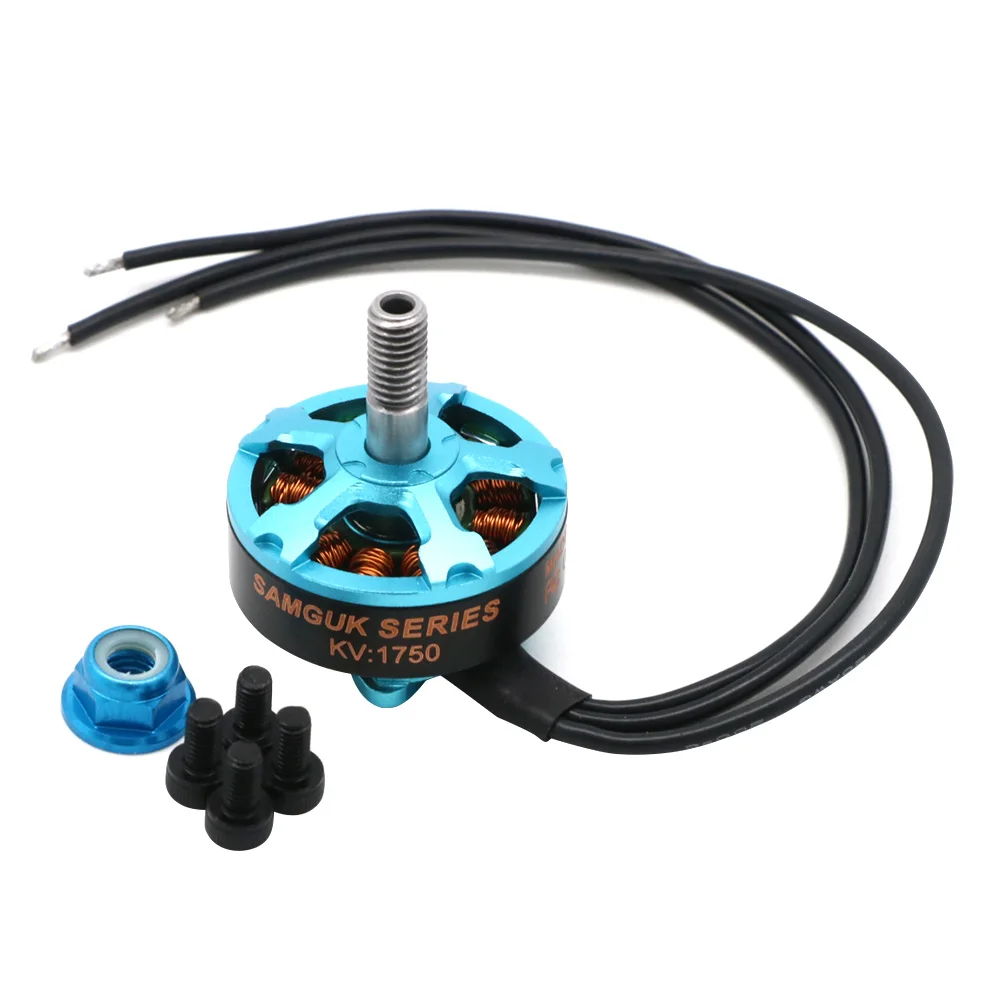

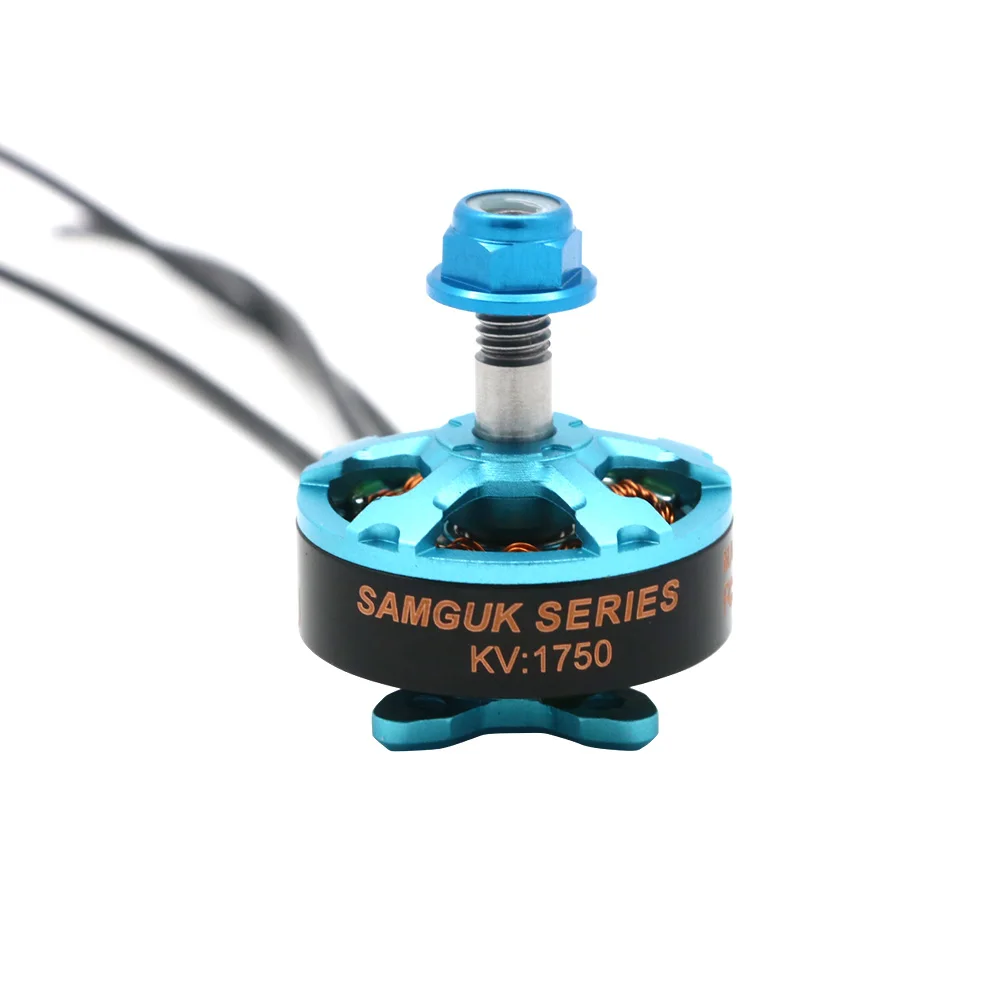

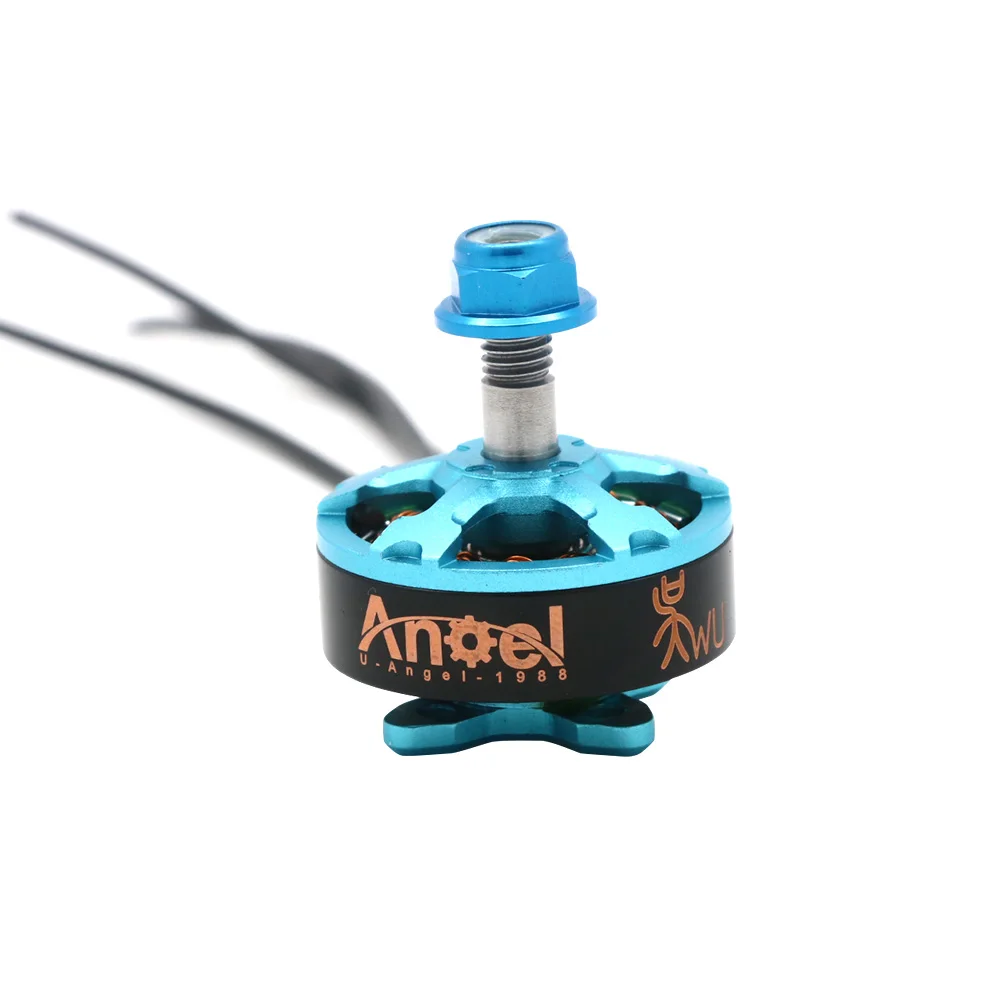

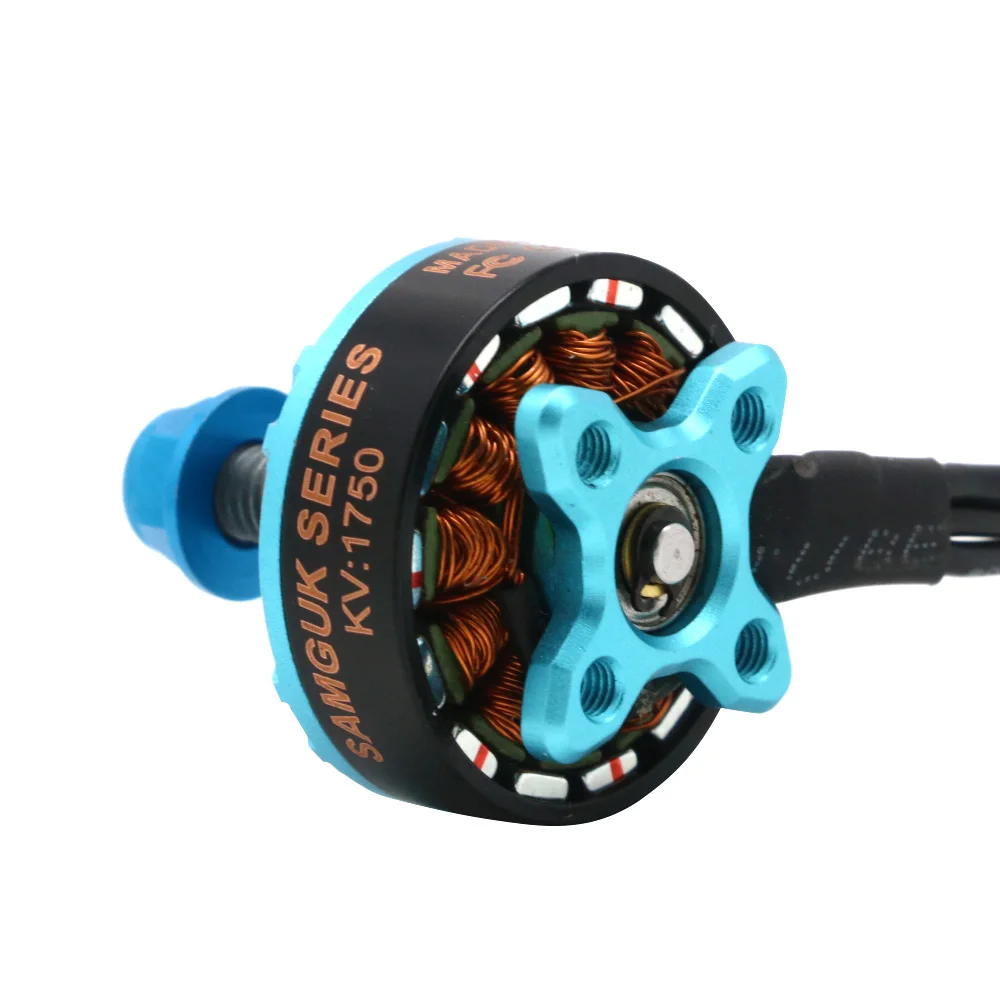

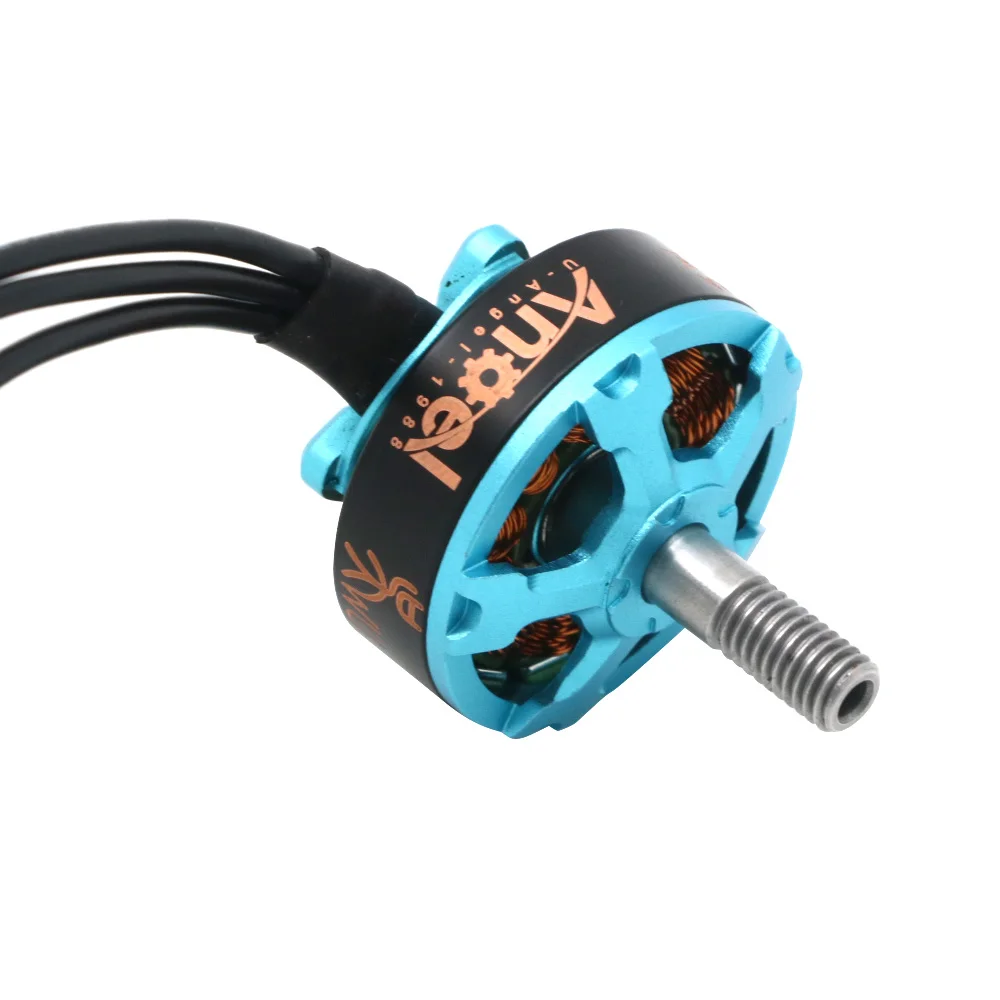

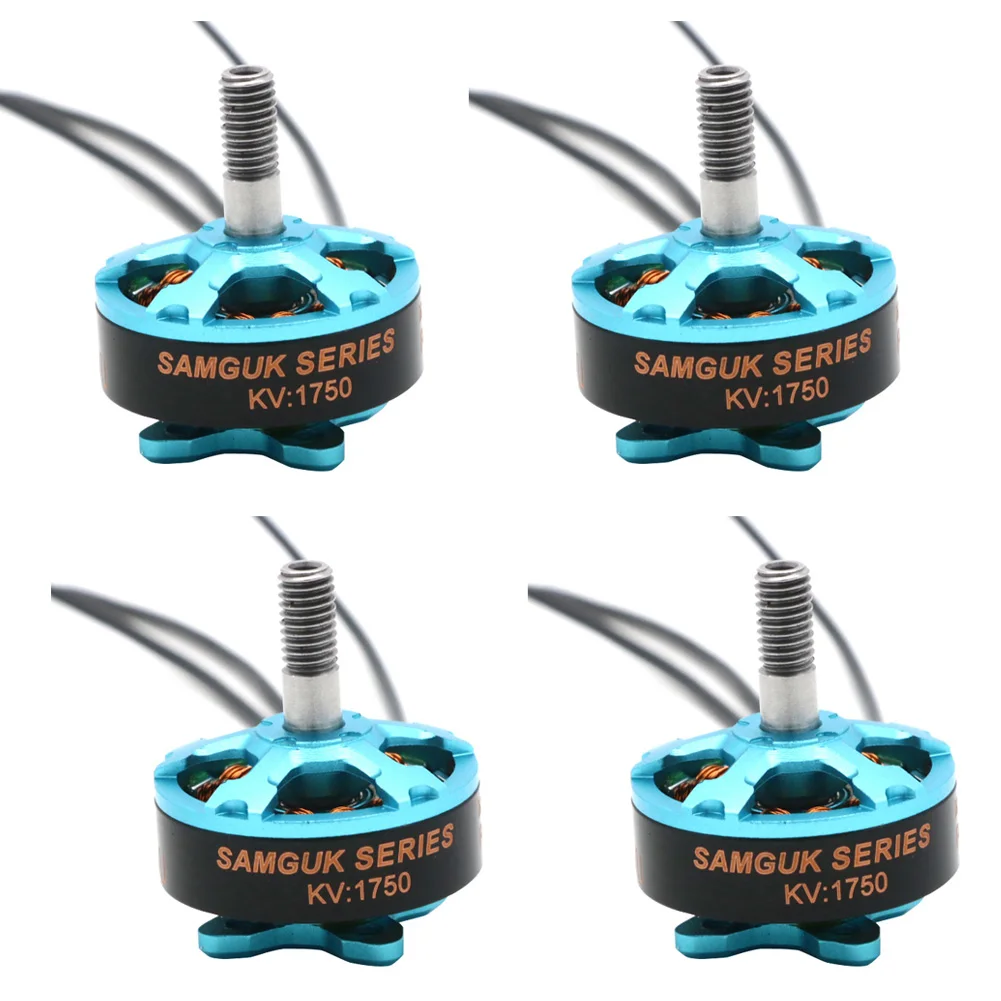

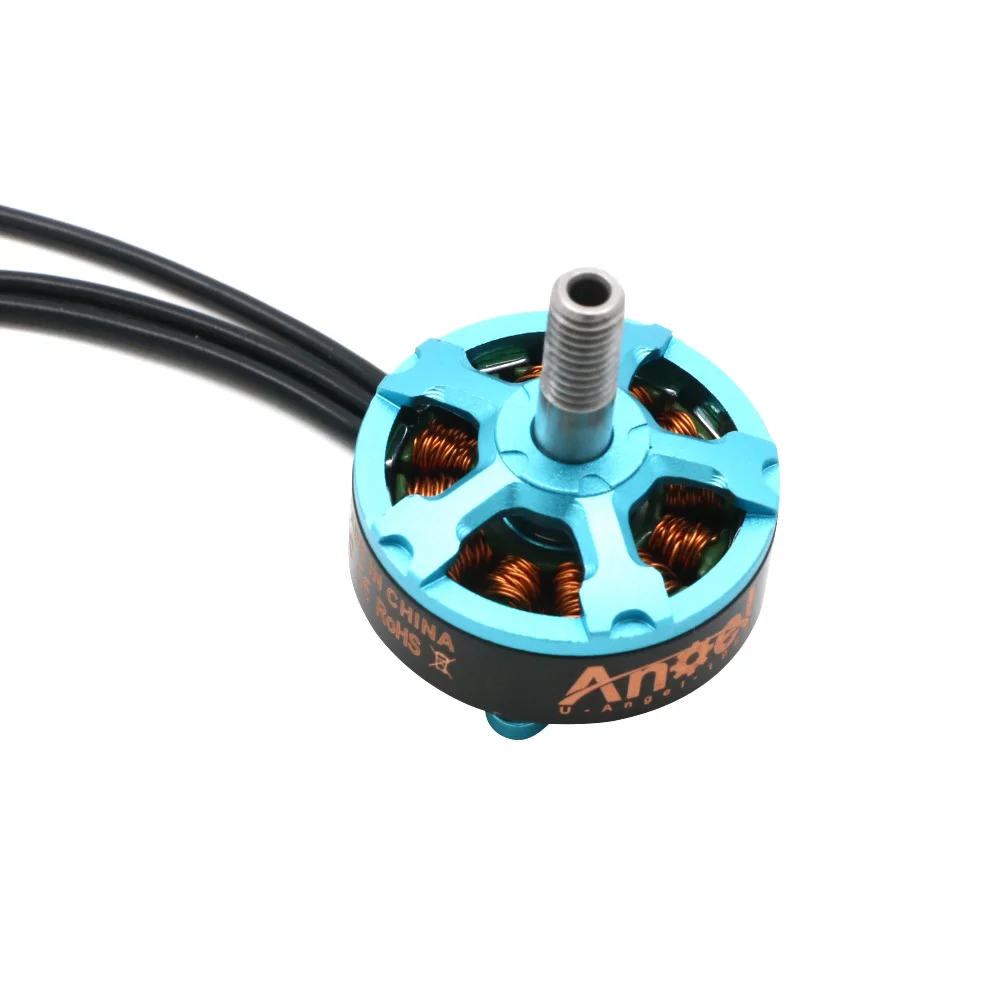

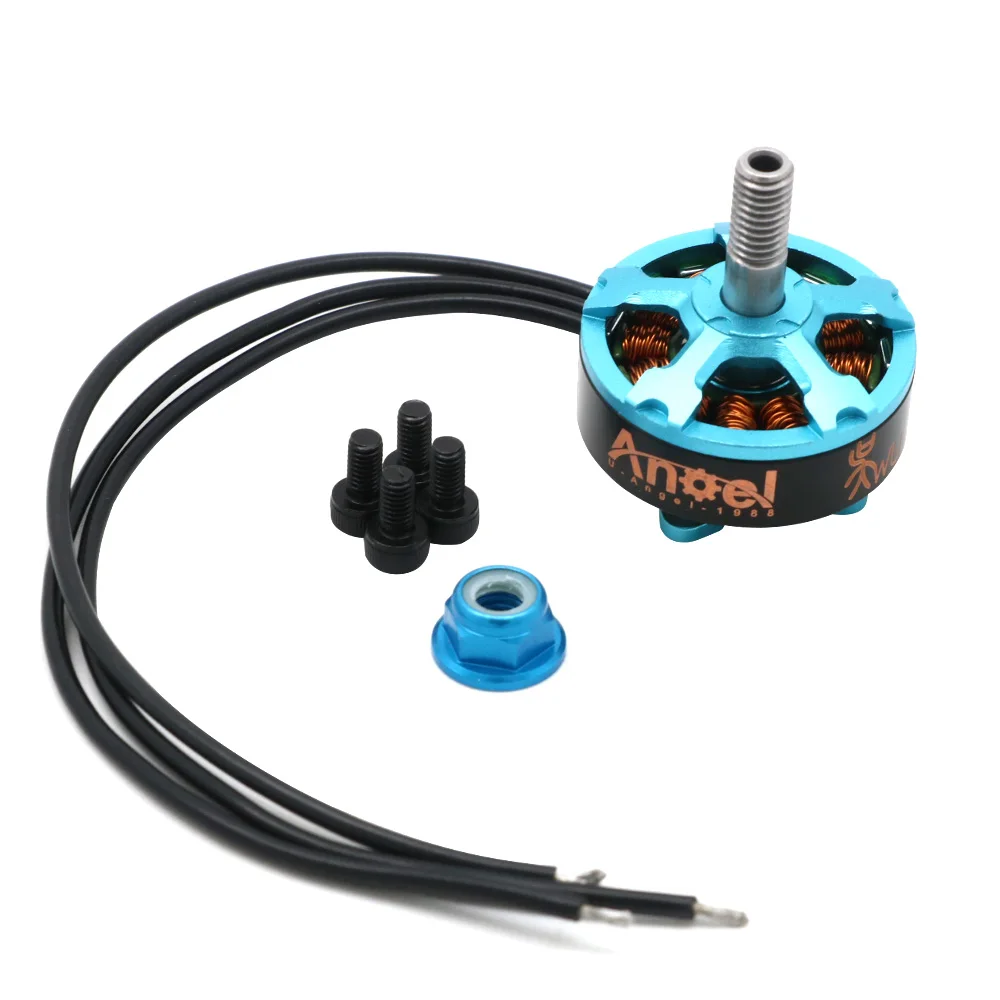

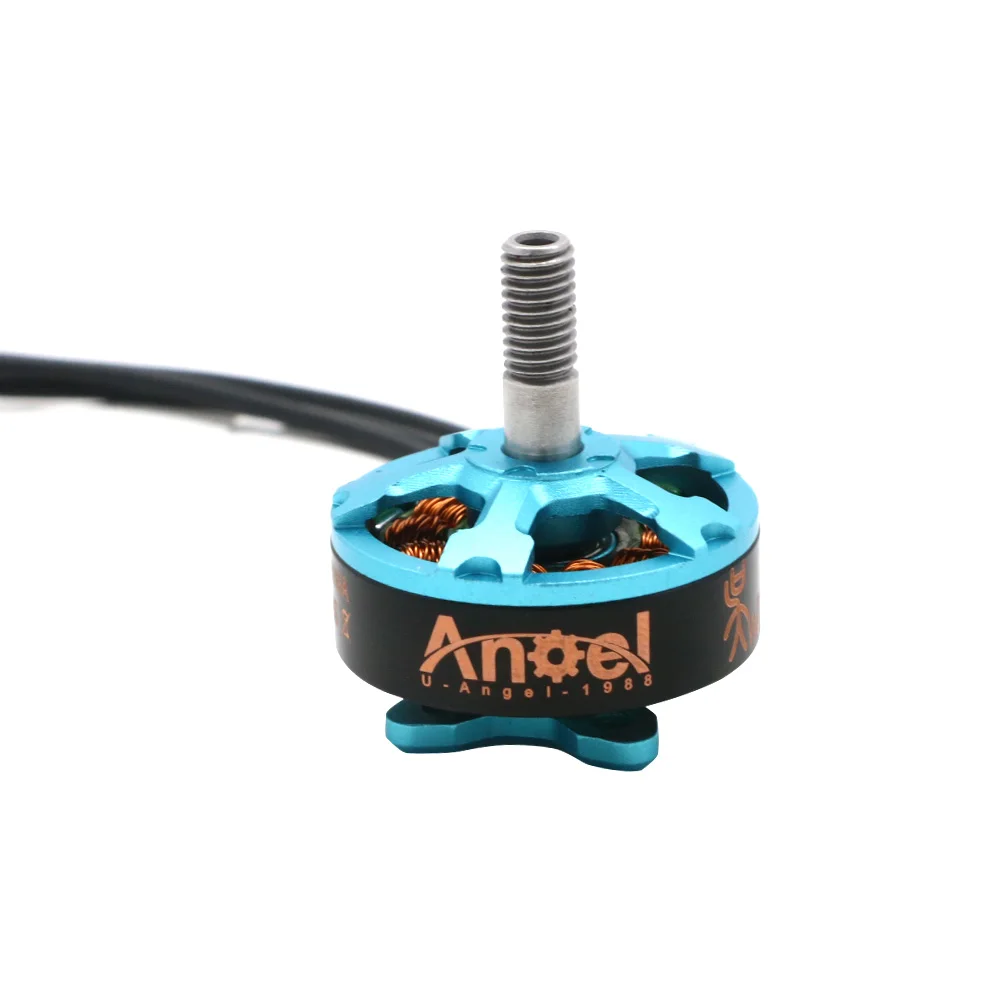

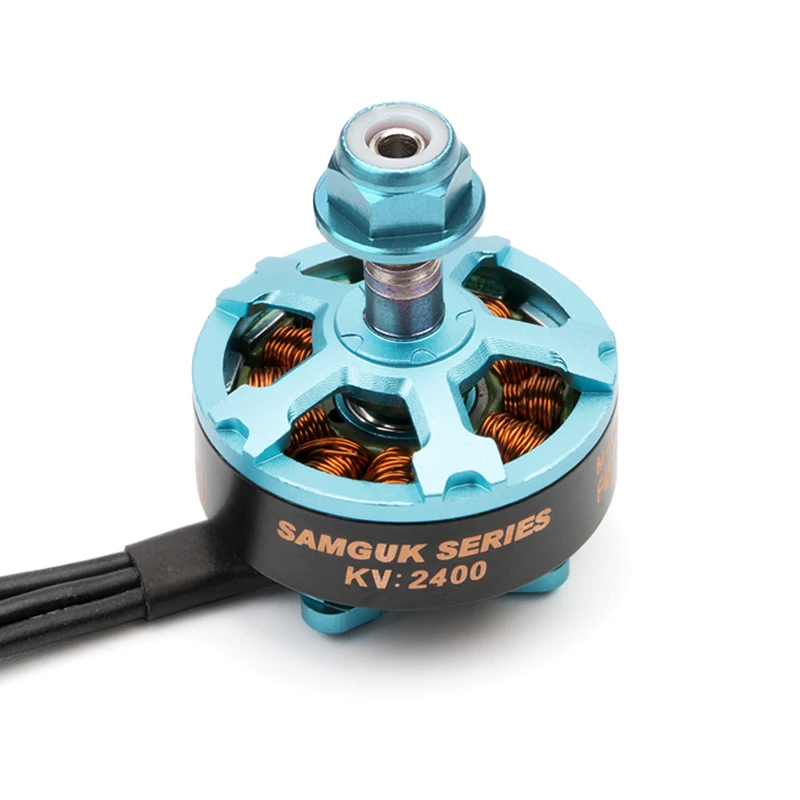

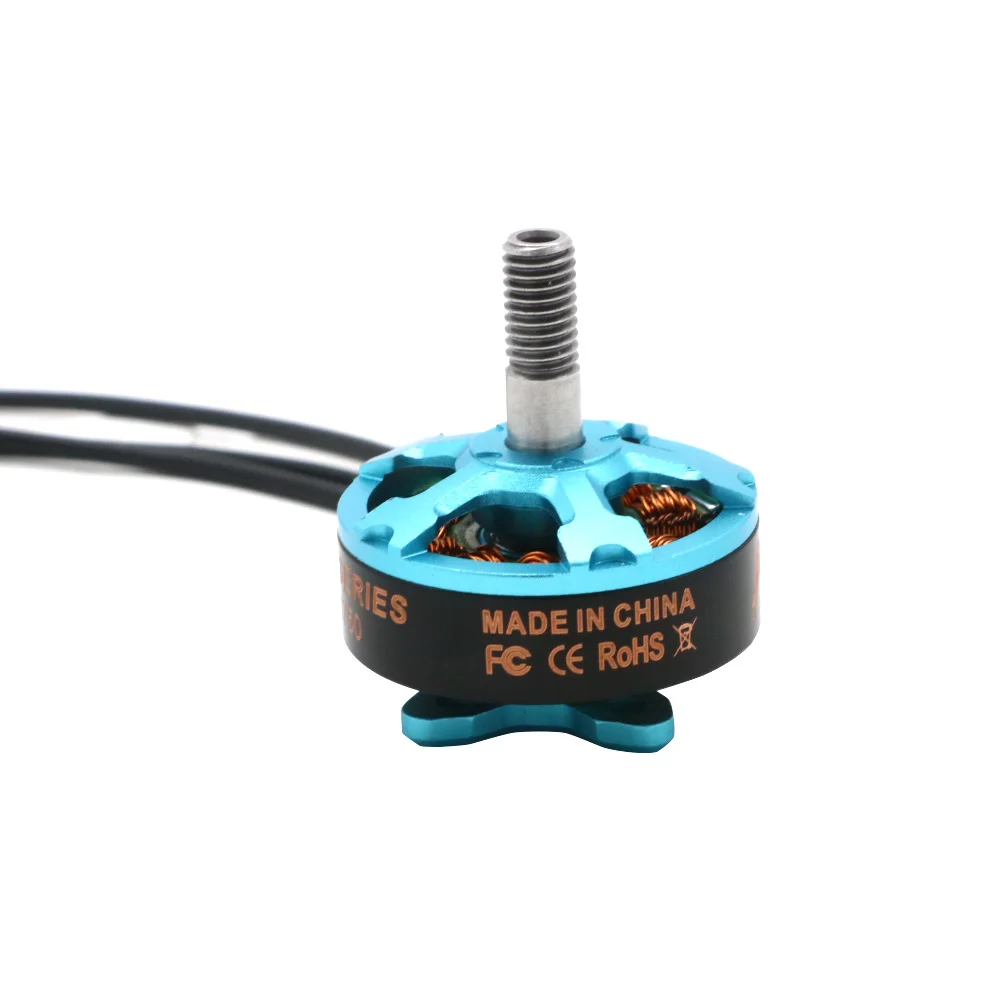

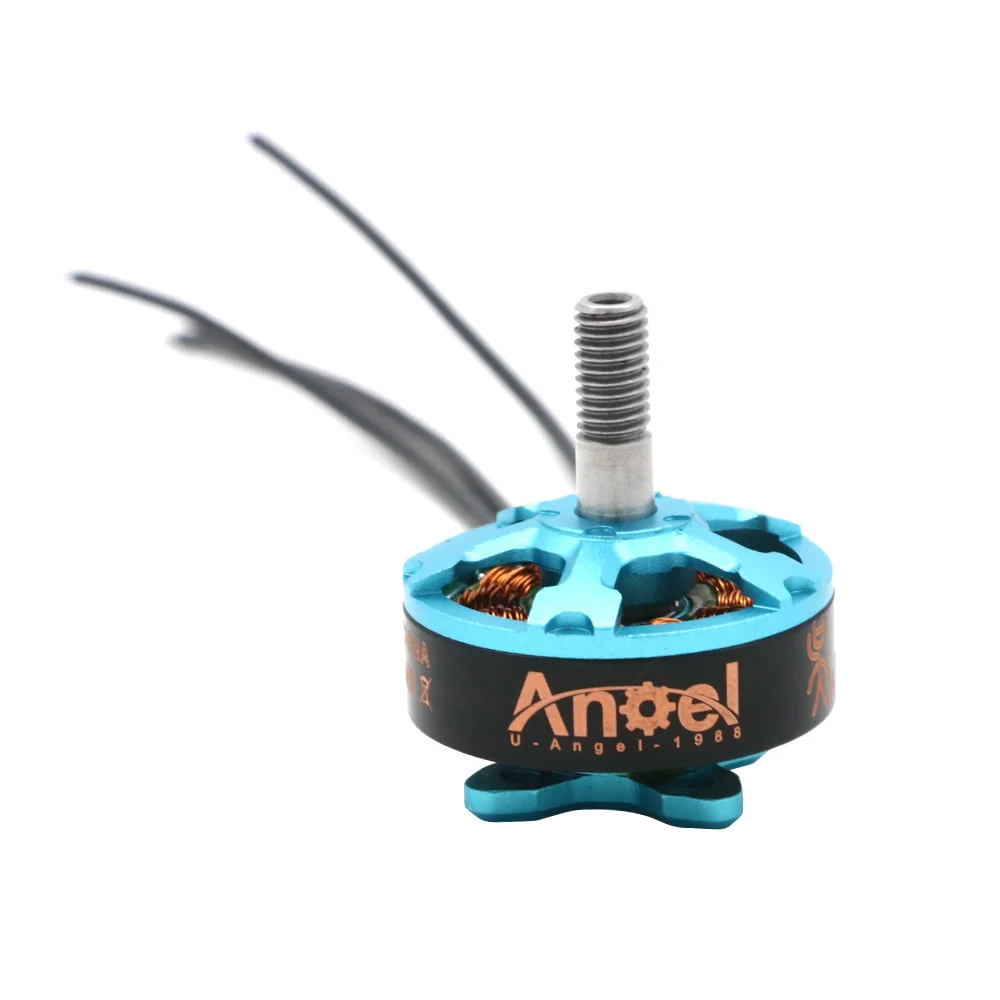

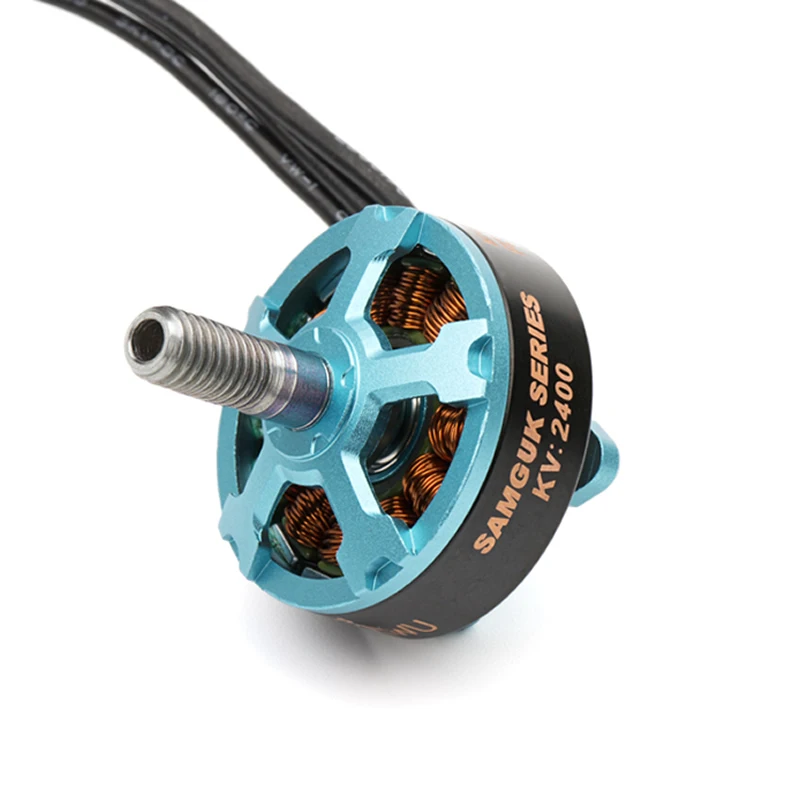

4pcs UAngel Samguk Series Wu 2206 2400KV 2700KV 3-4S / 1750KV 4-6S Brushless Motor CW for RC Models Multicopter Frame
Price range: $166.04 through $168.07
"*" indicates required fields
SPECIFICATIONS
Brand Name: U-Angel-1988
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Motors
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: DYS755
Origin: Mainland China
Quantity: 3
RC Parts & Accs: Spinners
Recommend Age: 14+y
Remote Control Peripherals/Devices: ESC
Size: 23.6
Technical parameters: value 2
Tool Supplies: 2206 Brushless Motor
Upgrade Parts/Accessories: DYS Samguk Series Wu 2206
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Item Name: Wu 2206
Specification:
KV……………………………………………………………………………………………..2400KV
Configu
ration…………………………………………………………………………………….NP
Stator
Diameter……………………………………………………………………………22.0mm
Stator
Length………………………………………………………………………………..6.0mm

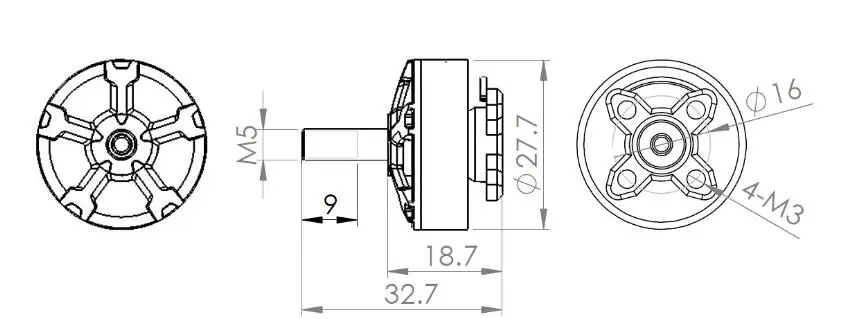

Motor
Dimensions(Dia.*Len)………………………………………………..Φ27.7×18.7mm

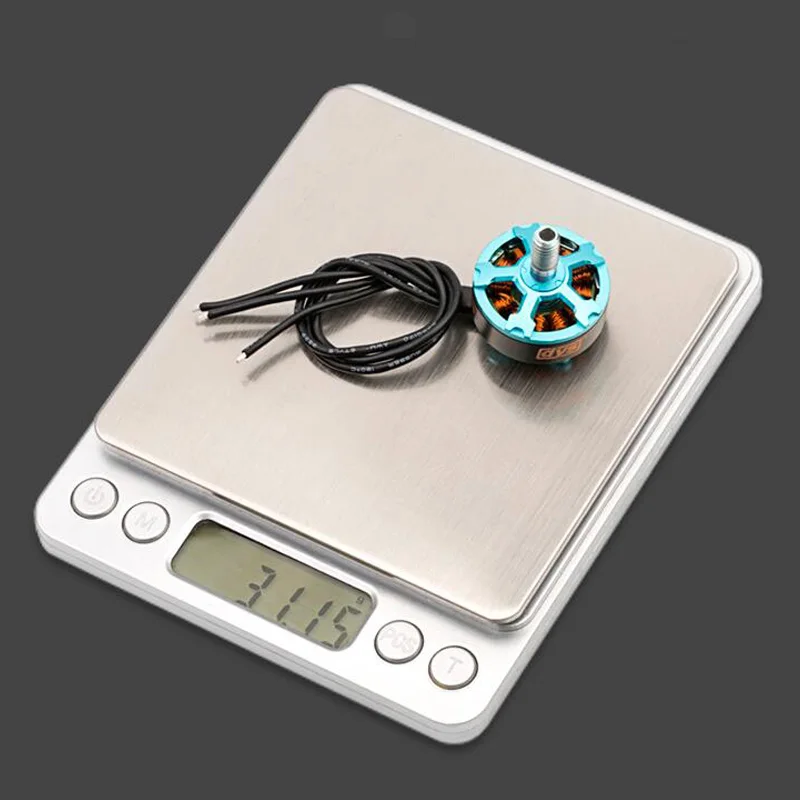

Weight
(g)……………………………………………………………………………………31.15g
No.of
Cells(Lipo)………………………………………………………………………………3-4S
Max Continuous
current(A)……………………………………………………………..32.70A
Max Continuous
Power(W)……………………………………………………………..523.2W
Internal
resistance…………………………………………………………………………..0.07
KV………………………………………………………………………………………….2700KV
Configu
ration………………………………………………………………………………..NP
Stator
Diameter……………………………………………………………………….22.0mm
Stator
Length……………………………………………………………………………6.0mm
Motor
Dimensions(Dia.*Len)…………………………………………..Φ27.7×18.7mm
Weight
(g)…………………………………………………………………………………31.15g
No.of
Cells(Lipo)……………………………………………………………………………3-4S
Max Continuous
current(A)………………………………………………………….43.20A
Max Continuous
Power(W)………………………………………………………….691.2W
Internal
resistance…………………………………………………………………………0.06
| Color | 2206 2700KV, 2206 2400KV, 2206 1750KV |
|---|
