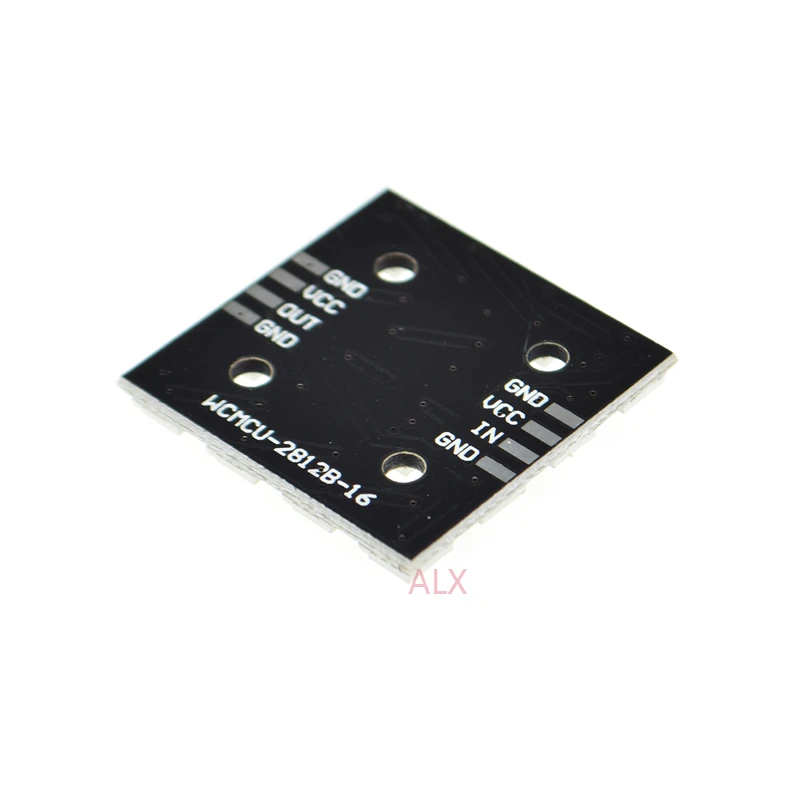

4*4 16 Bits Ws2812b 5050 Rgb Led Module Full Color Driver Led Board
Original price was: $12.96.$8.64Current price is: $8.64.
894 in stock
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: NONE
Certification: CCC
Features: 5050 RGB
Height: 1
High-concerned chemical: None
Is Bulbs Included: No
Item Type: LED Modules
Length: 1
Model Number: WS2812B
Origin: Mainland China
Power Source: DC
Voltage: Other
Width: 1
● Intelligent reverse polarity protection, power supply reverse polarity will not damage the IC.
● IC control circuit and a power LED spot light utility.
● Control circuit chip with RGB components in a package in 5050, to form a complete external control pixels.
● built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.
● Built-in power-on reset and brown-out reset circuit.
● trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz / s.
● serial cascade interface, through a signal line to complete the receiving and decoding of data.
● transfer transmission distance between any two points in less than 5 meters without any additional circuitry.
● When the refresh rate of 30 frames / sec, cascading number of not less than 1024 points.
● data transmission speeds of up to 800Kbps.
● The color of the light highly consistent, cost-effective.
Package included:
1PCS x 16Bit RGB 4×4 LED WS2812B 5050 RGB LED board.
● IC control circuit and a power LED spot light utility.
● Control circuit chip with RGB components in a package in 5050, to form a complete external control pixels.
● built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.
● Built-in power-on reset and brown-out reset circuit.
● trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz / s.
● serial cascade interface, through a signal line to complete the receiving and decoding of data.
● transfer transmission distance between any two points in less than 5 meters without any additional circuitry.
● When the refresh rate of 30 frames / sec, cascading number of not less than 1024 points.
● data transmission speeds of up to 800Kbps.
● The color of the light highly consistent, cost-effective.
Package included:
1PCS x 16Bit RGB 4×4 LED WS2812B 5050 RGB LED board.
