Sale

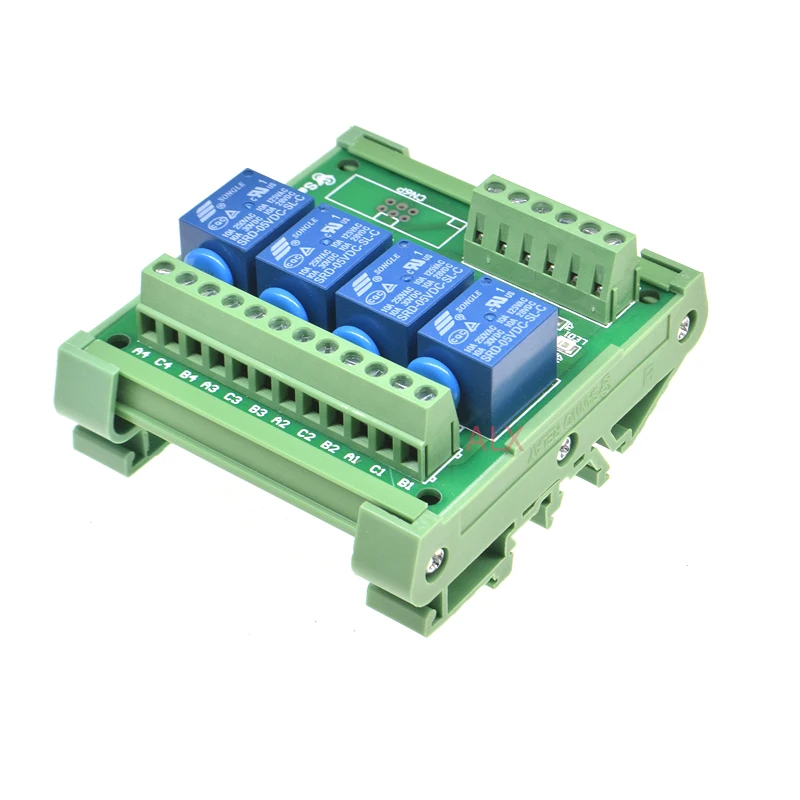

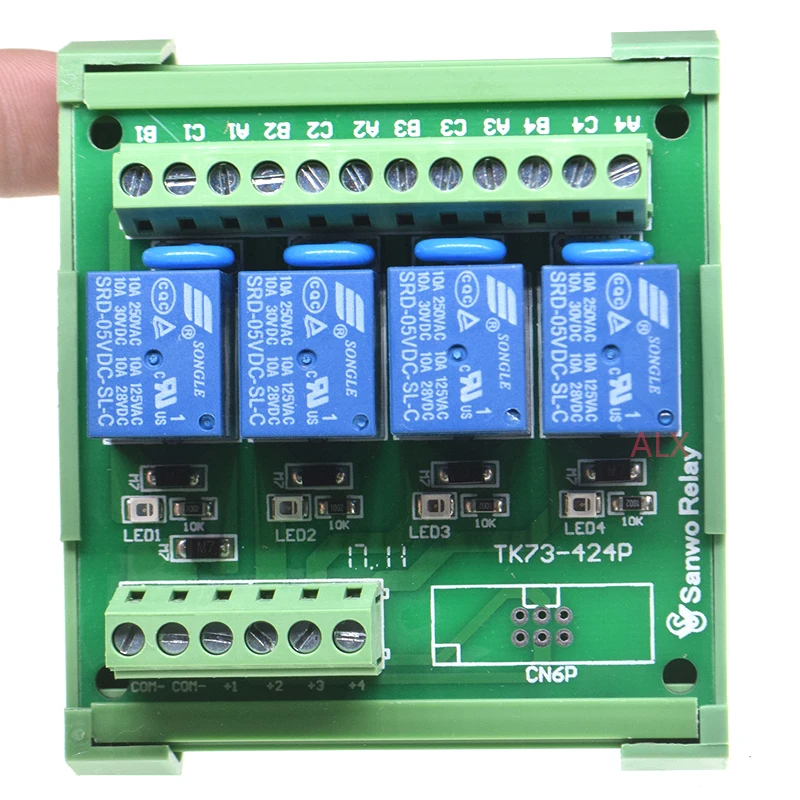

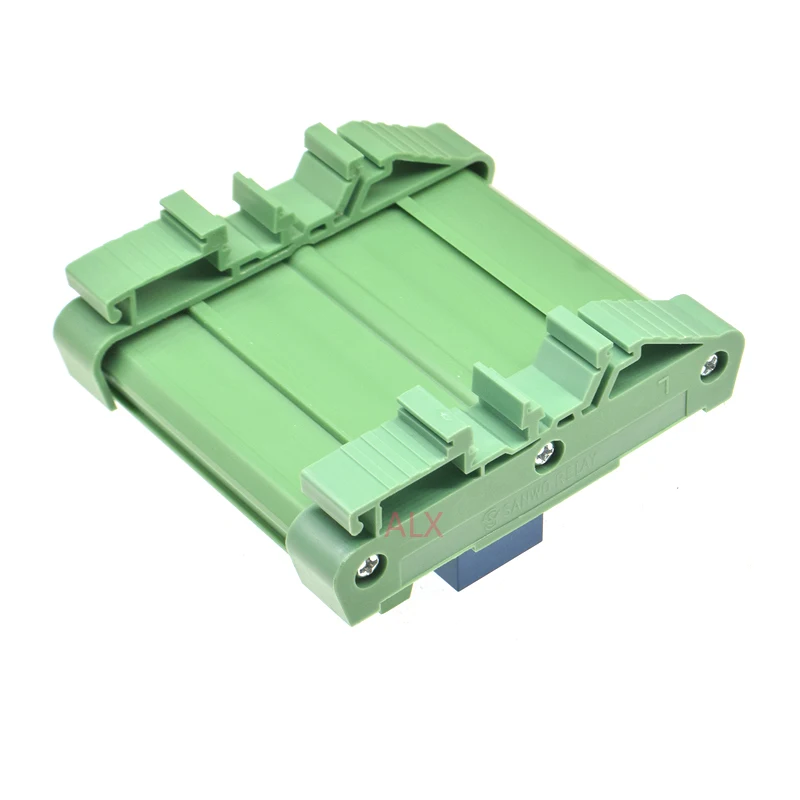

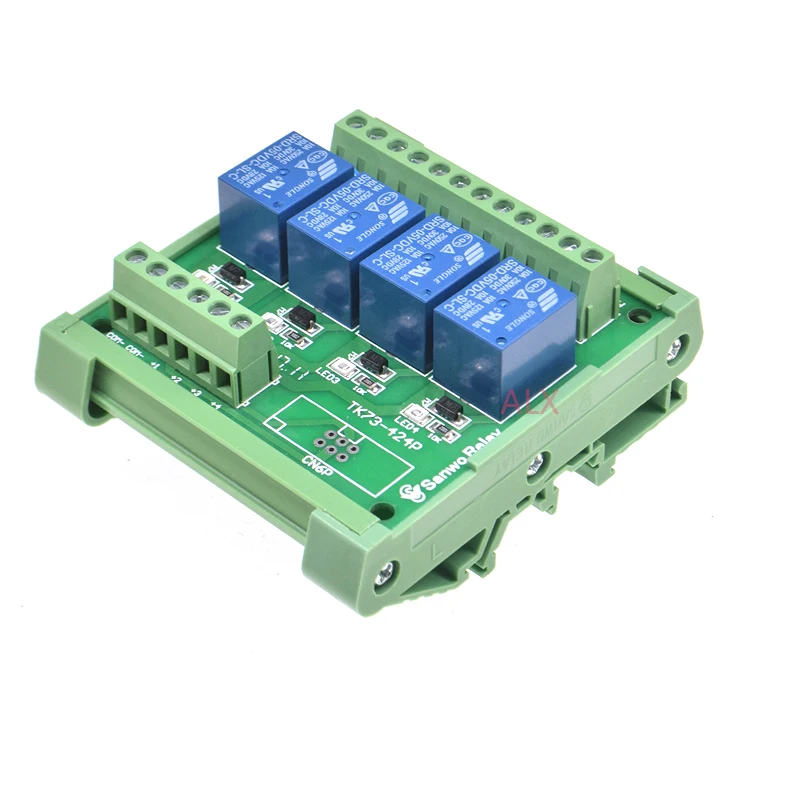

4 Channels relay module DIN Rail Mount SRD-05VDC-SL-C SRD-12VDC-SL-C SRD-24VDC-SL-C 10A 5V 12V 24V DC PNP NPN 1NO 1NC
Original price was: $77.04.$35.95Current price is: $35.95.
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
Certification: CE
Contact Load: Low Power
High-concerned chemical: None
Model Number: SRD
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Theory: Time Relay
Use: General Purpose
Voltage: 5V 12V 24V
is_customized: Yes
NPN connection mode:Input end :COM and OV are common points, choose one connection at will, connect the positive voltage. 1-N is connected to negative voltage control. N indicates the N route. Output end :A represents normally open, B represents normally closed, and C represents common point.
PNP connection mode:
PNP connection mode:
Input end :COM and OV are common points, choose one connection at will, connect to negative voltage. 1-N connected to positive voltage control. N indicates the N route. Output end :A represents normally open, B represents normally closed, and C represents common point.
Additional information
| Size | DC 5V Relay, DC 12V Relay, DC 24V Relay |
|---|---|
| Current Range | NPN, PNP |
