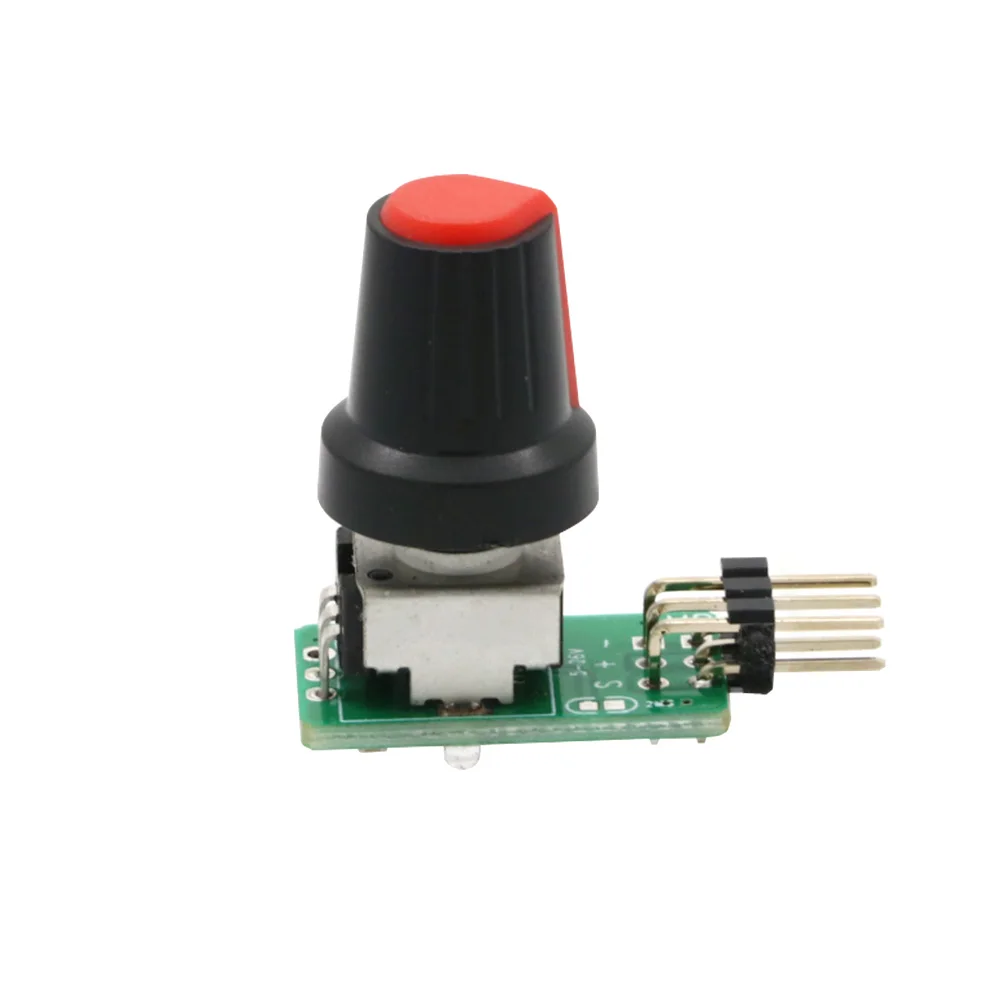

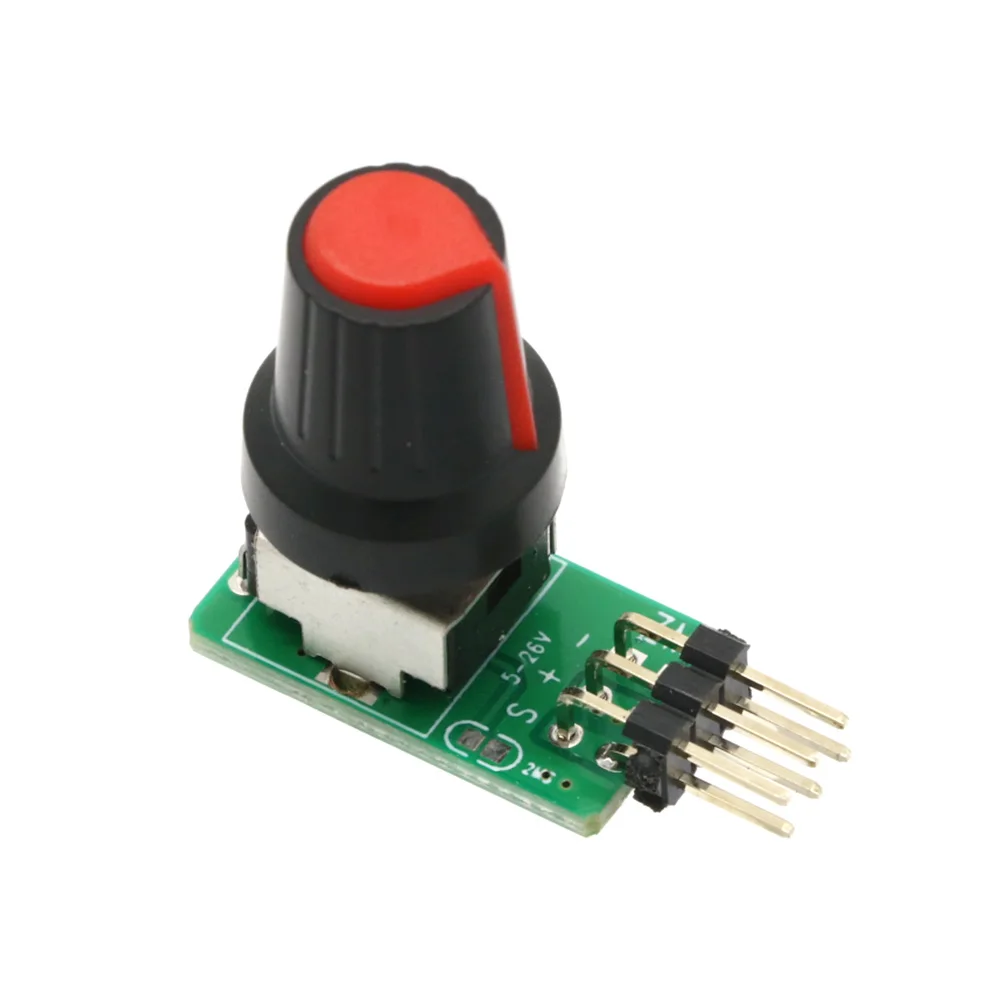

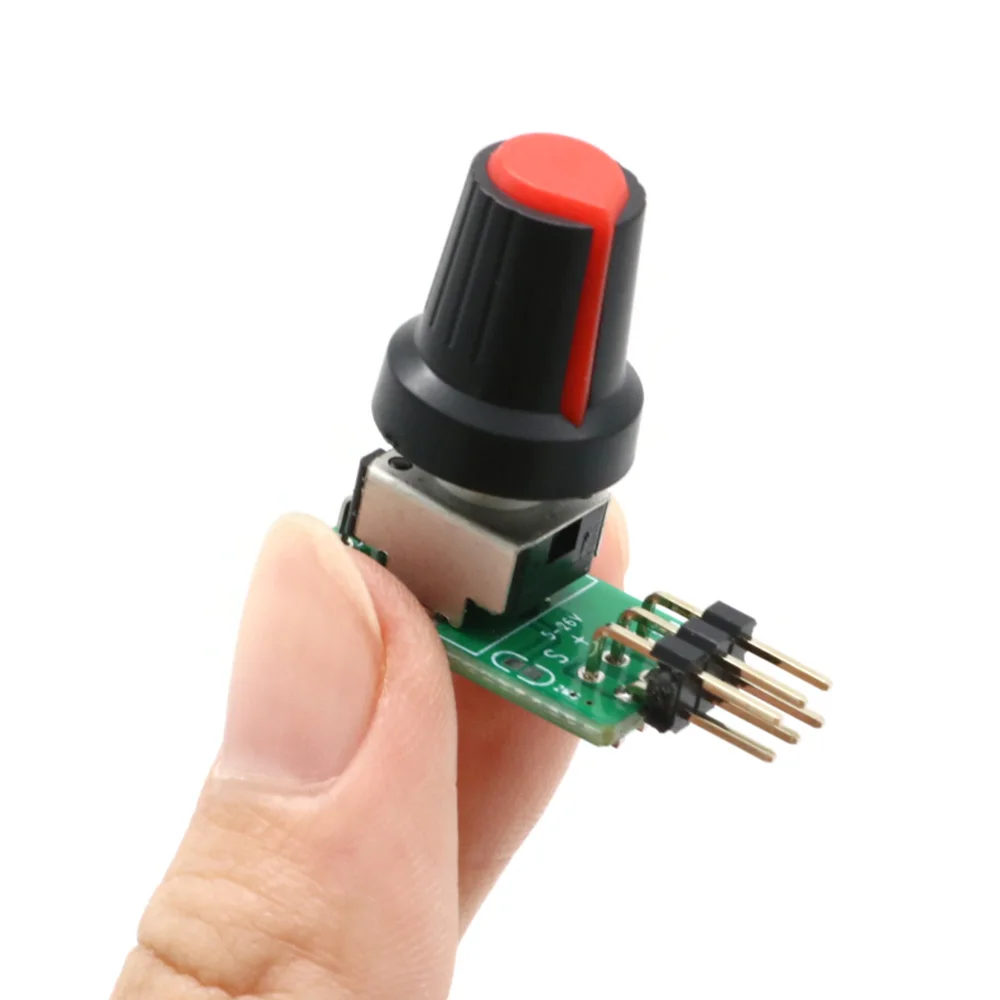

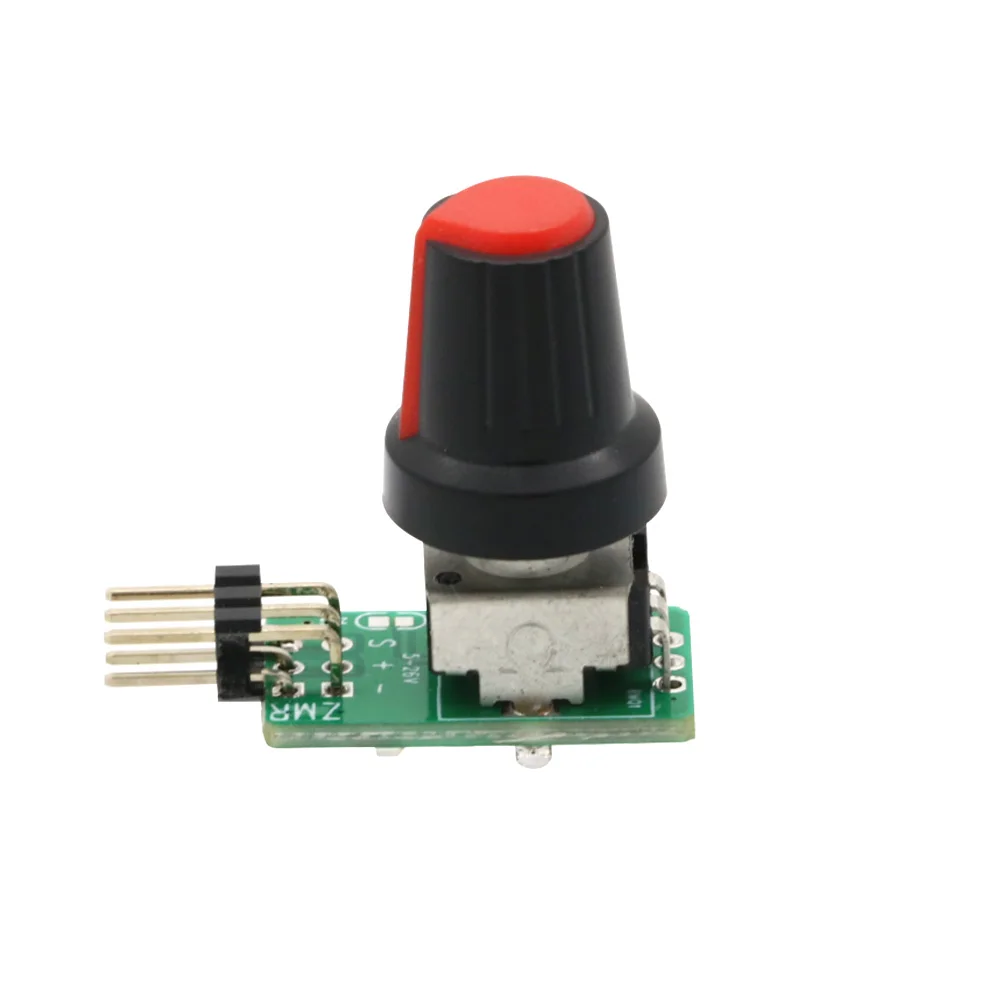

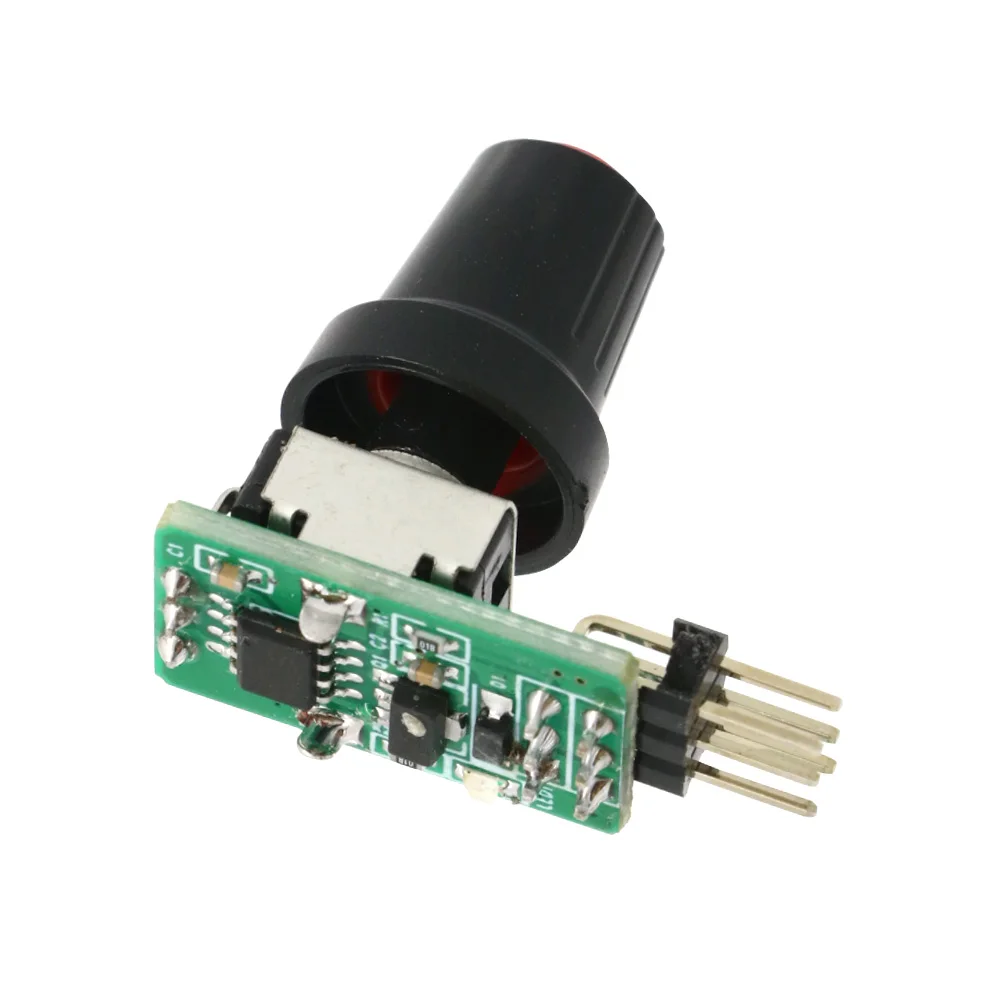

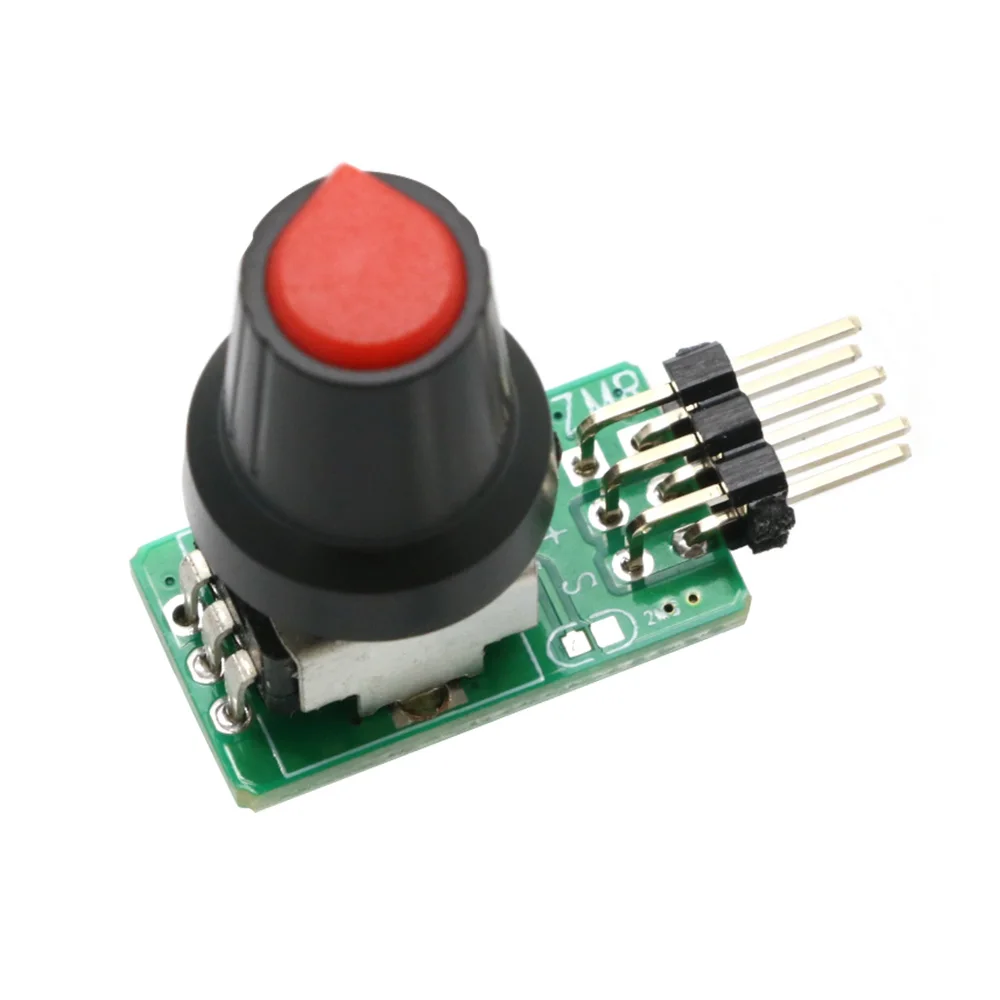

3-8V Mini Servo Tester ESC Testing Tools DIY Brushless Fan Motor Governor PWM Signal Output for RC Aircraft Model Parts

Original price was: $15.90.Current price is: $10.60.

7 in stock

"*" indicates required fields

SKU: _d6l56omsfveg00d0573g Category:
Description

SPECIFICATIONS


Brand Name: U-Angel-1988

Choice: yes

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Brushless Fan Motor

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: HRLH300

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Servos

Recommend Age: 14+y

Remote Control Peripherals/Devices: Servos

Size: 42.5 x 24.0 x 23.5mm

Technical parameters: value 3

Tool Supplies: Other

Upgrade Parts/Accessories: Mini Servo Tester

Use: Vehicles & Remote Control Toys

Wheelbase: Screws


Single chip microcomputer kernel, accurate output,

Different from the general servo control, the output of the tester 1000-2000us 50Hz PWM signal is more matched with the output of the general remote control

With solder joints, it can be changed to 500-2500us output (can drive the steering gear that can turn 180 degrees)

Electrical modulation can also be tested (electrical modulation is also PWM signal driver)

Double row pin structure, two same signal ports, convenient power supply and testing.

ADAPTS 3-8V voltage, can use high voltage steering gear (2S lithium) (5V steering gear do not use 2S power supply)

Power + – Anti-reverse connection.

With power indicator light (light can pass through the housing)

Size:25x15mm

Weight:4g
