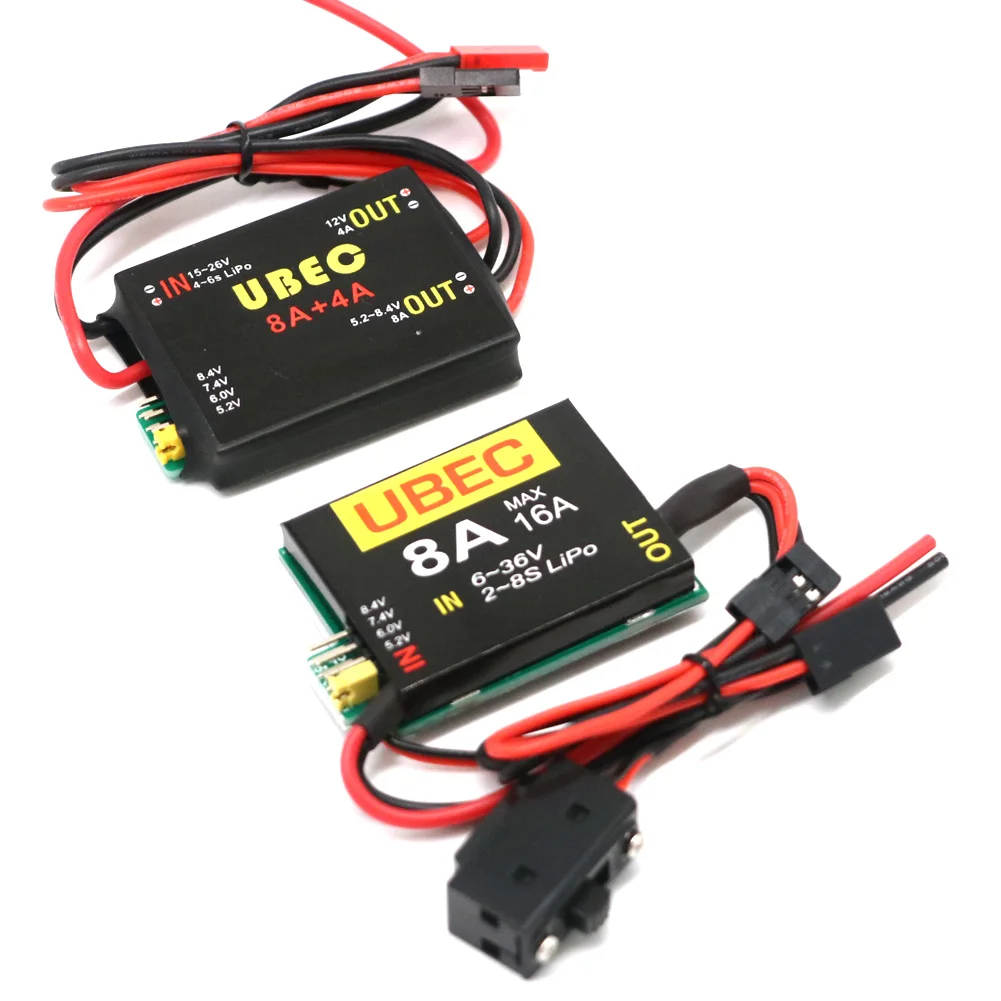

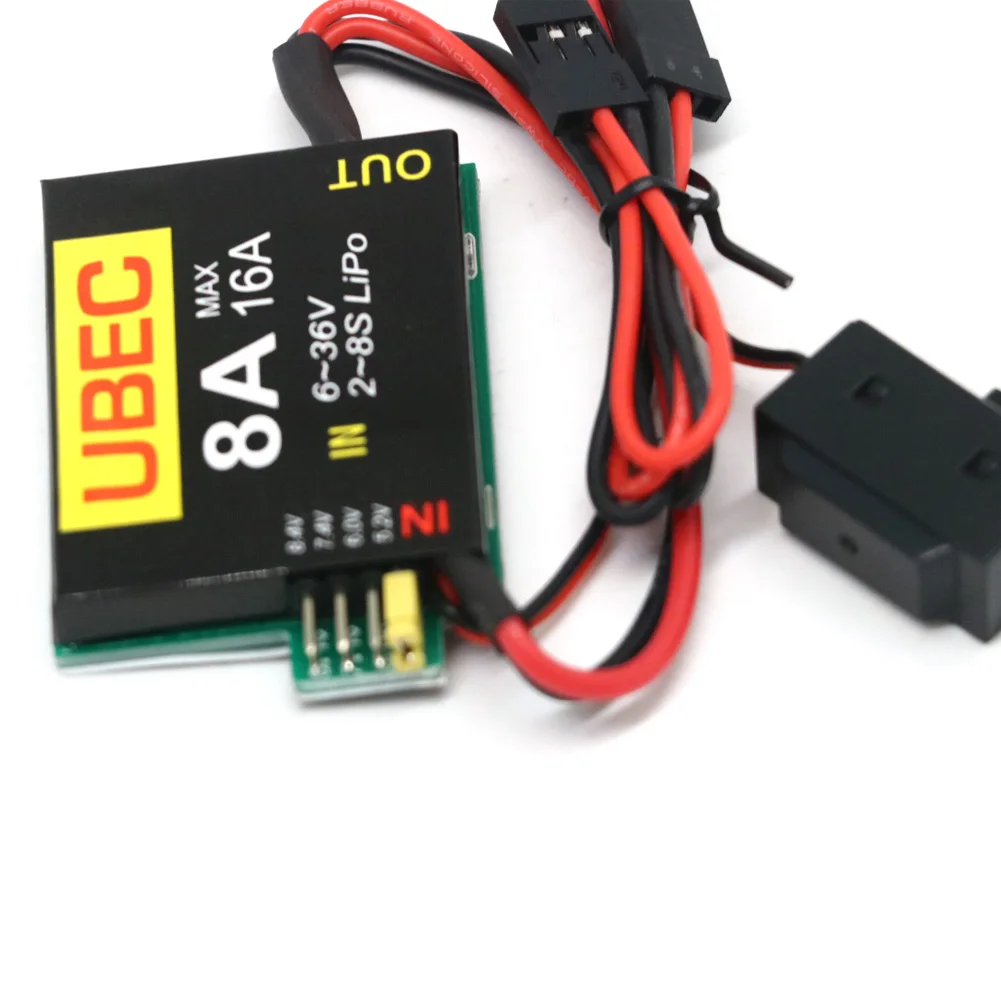

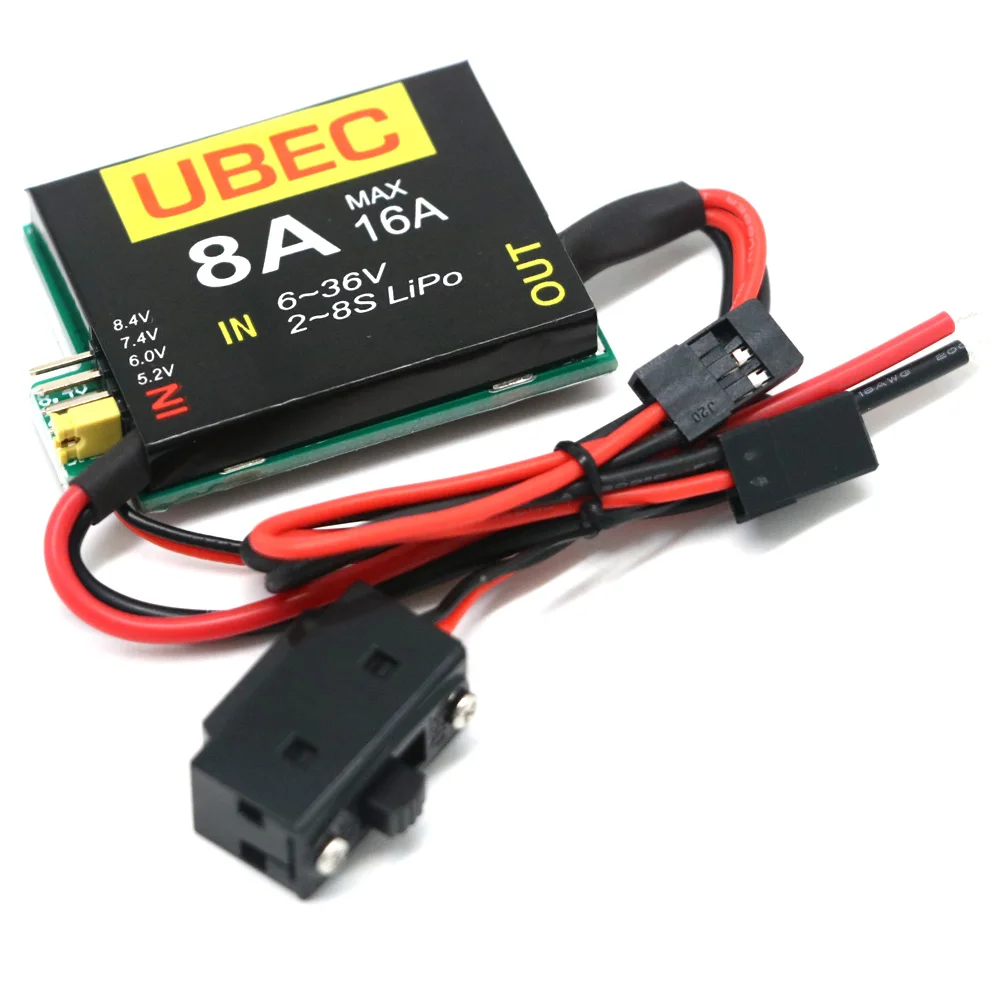

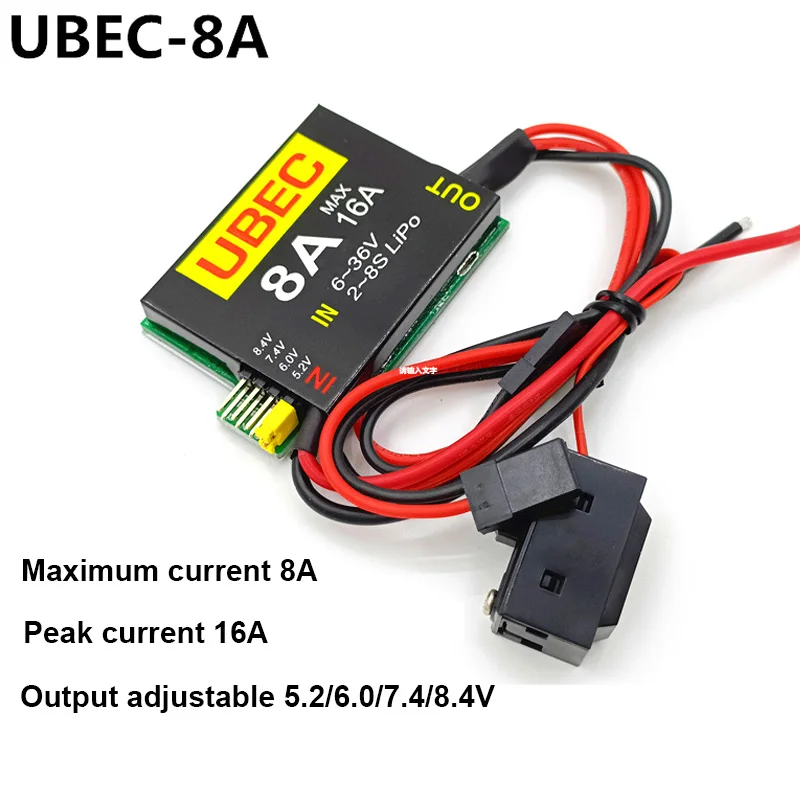

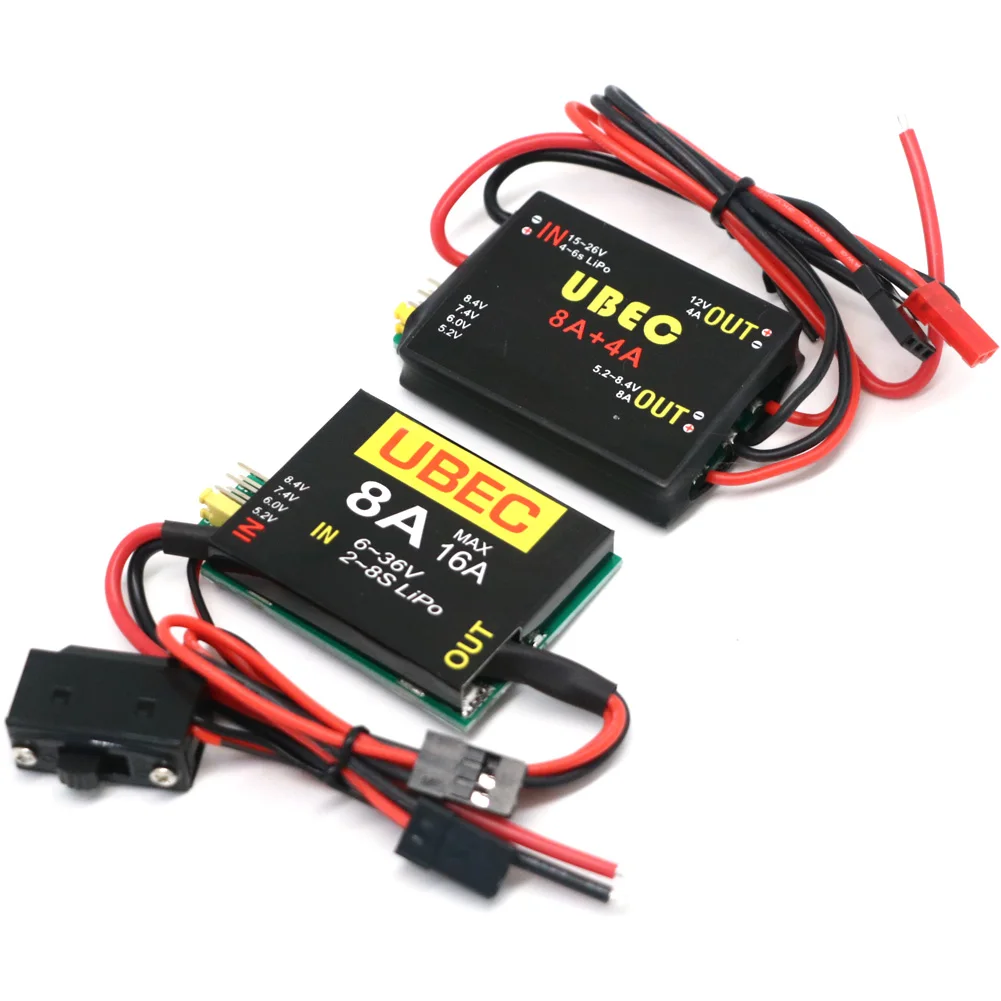

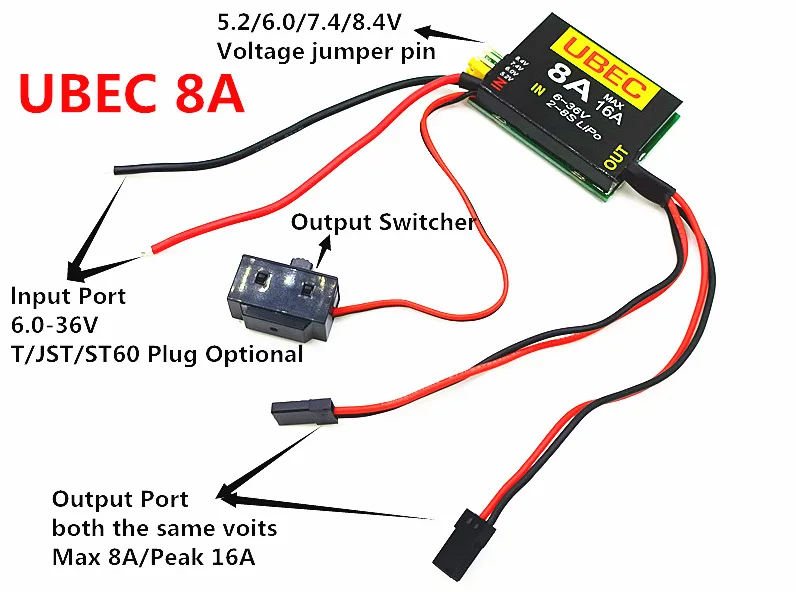

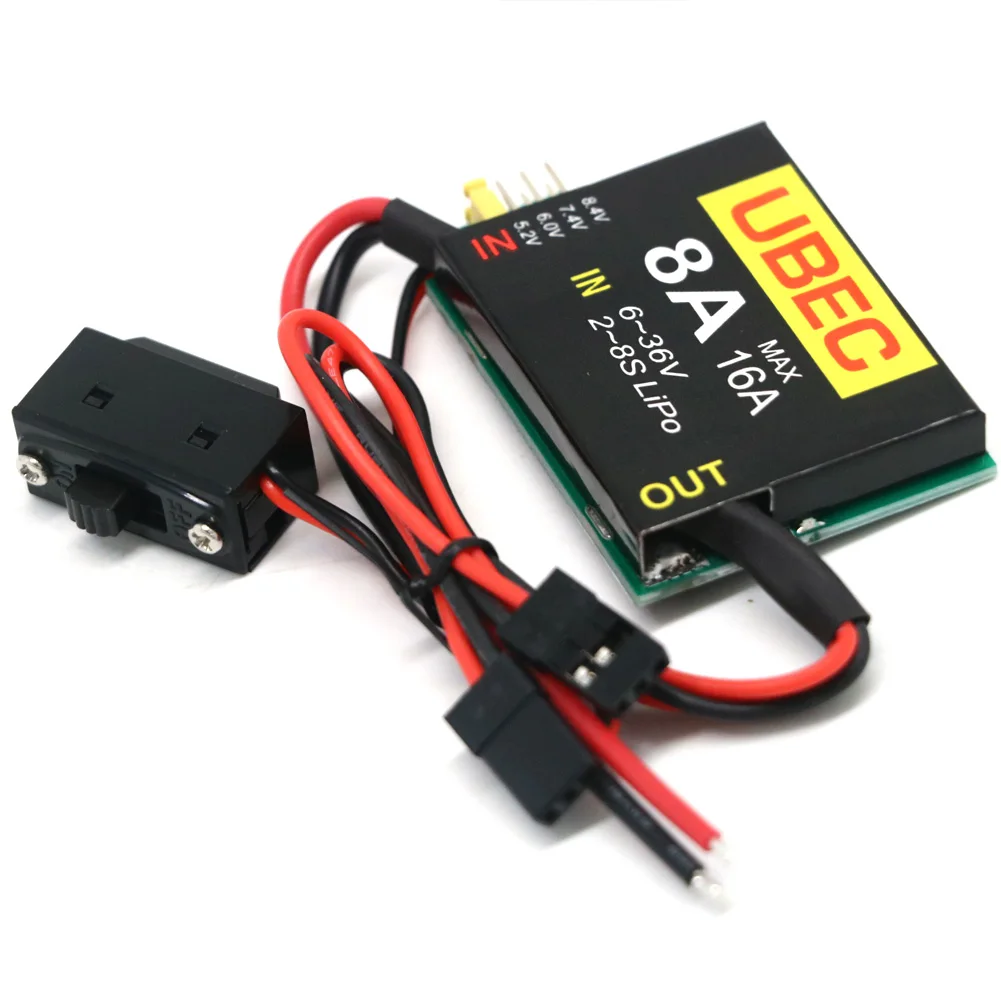

UBEC-8A
Input Volts:6-36V(2-8s LiPo)
Output Volts(port-1): 5.2/6.0/7.4/8.4
Output Volts(port-2): 5.2/6.0/7.4/8.4
Volts Control: Jumper Pin
Output Volts(port 1+2):Max 8amp/Peak 16amp
Size without wire: 51*36*8MM
Net Weight: 32G

Features
1. Using high-efficiency DC-DC voltage regulator chip, the conversion efficiency exceeds 90%
2. The output voltage can be selected in four gears (5.2/6.0/7.4/8.4V), which can meet the use of aircraft model equipment of various voltage specifications
3. Dual parallel output, can carry larger current
4. With overcurrent protection, output short circuit protection, overheating protection and other functions, safe and reliable

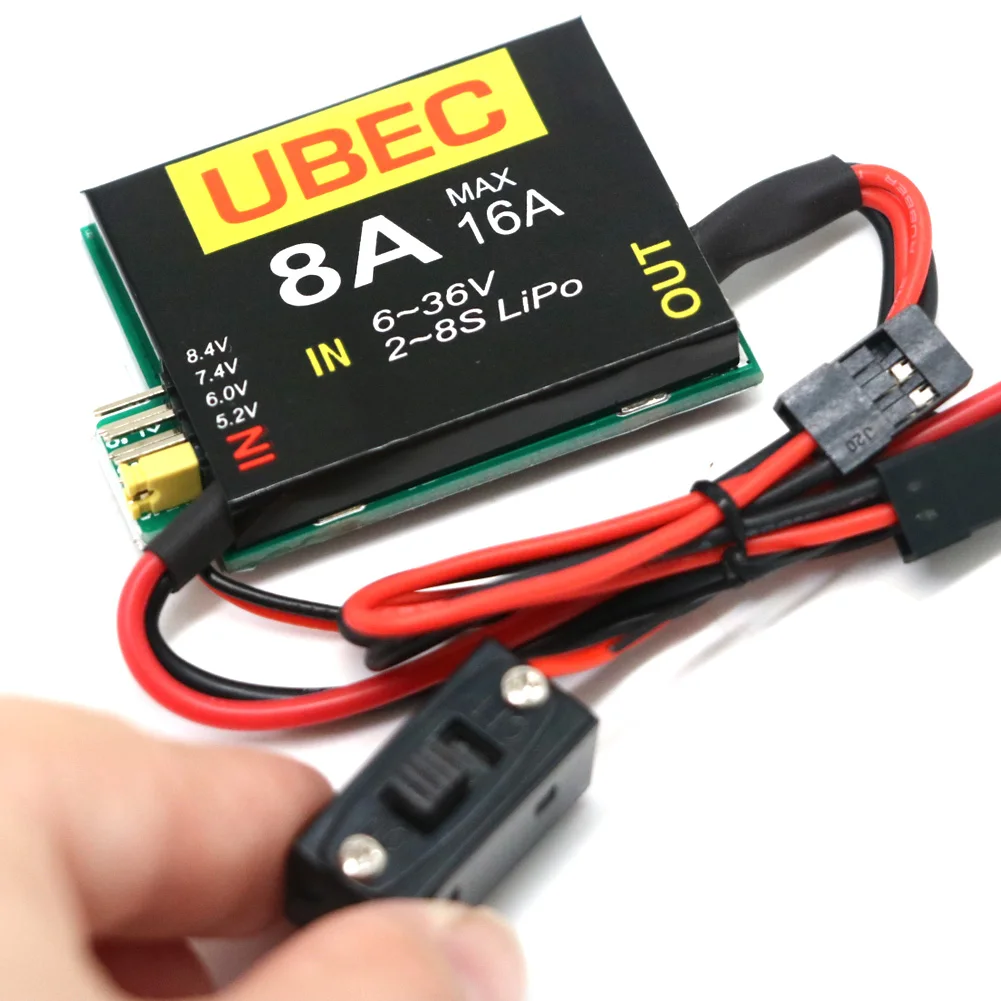

5. External switch, easy to open and close UBEC
6. Has a working status indicator, which lights up when the UBEC is working normally

Specification:
1. Input voltage: 6V-36V (2-8S)
2. Output voltage 5.2/6.0/7.4/8.4V optional
3. Output current: continuous 8A, instantaneous 16A

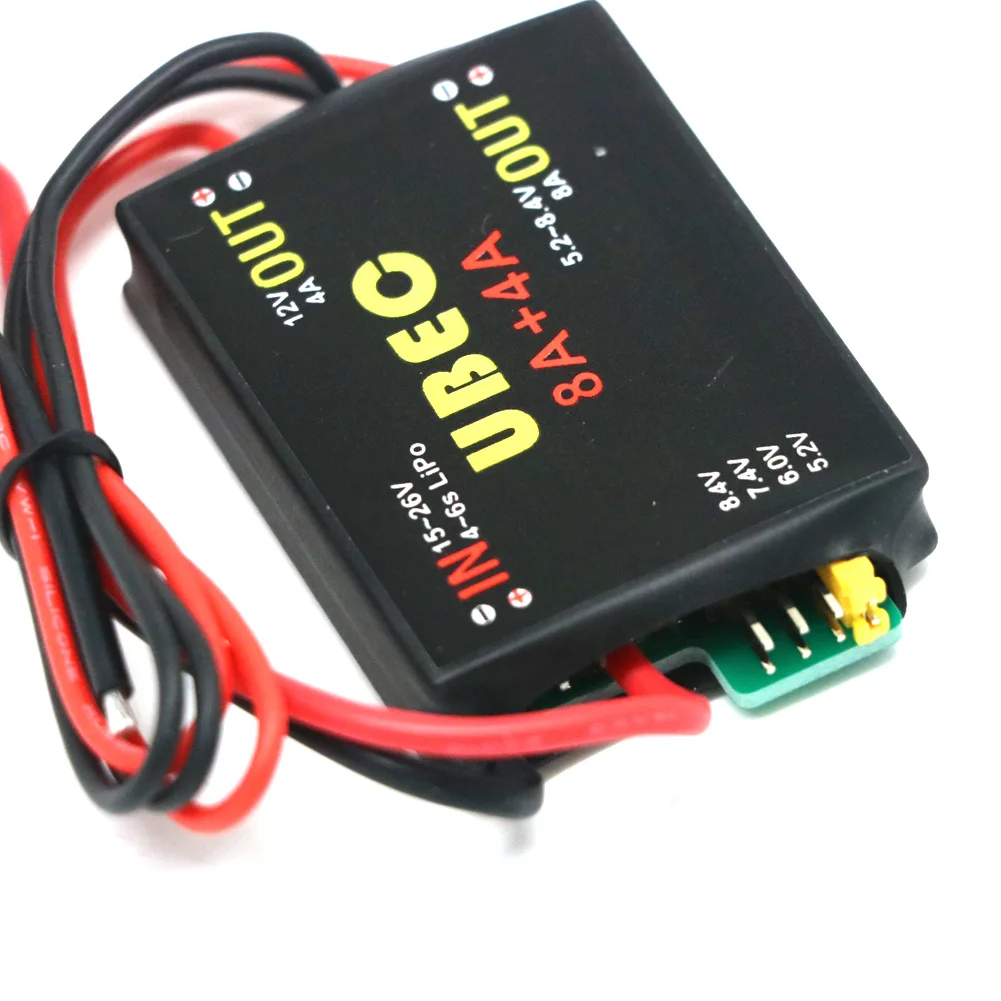

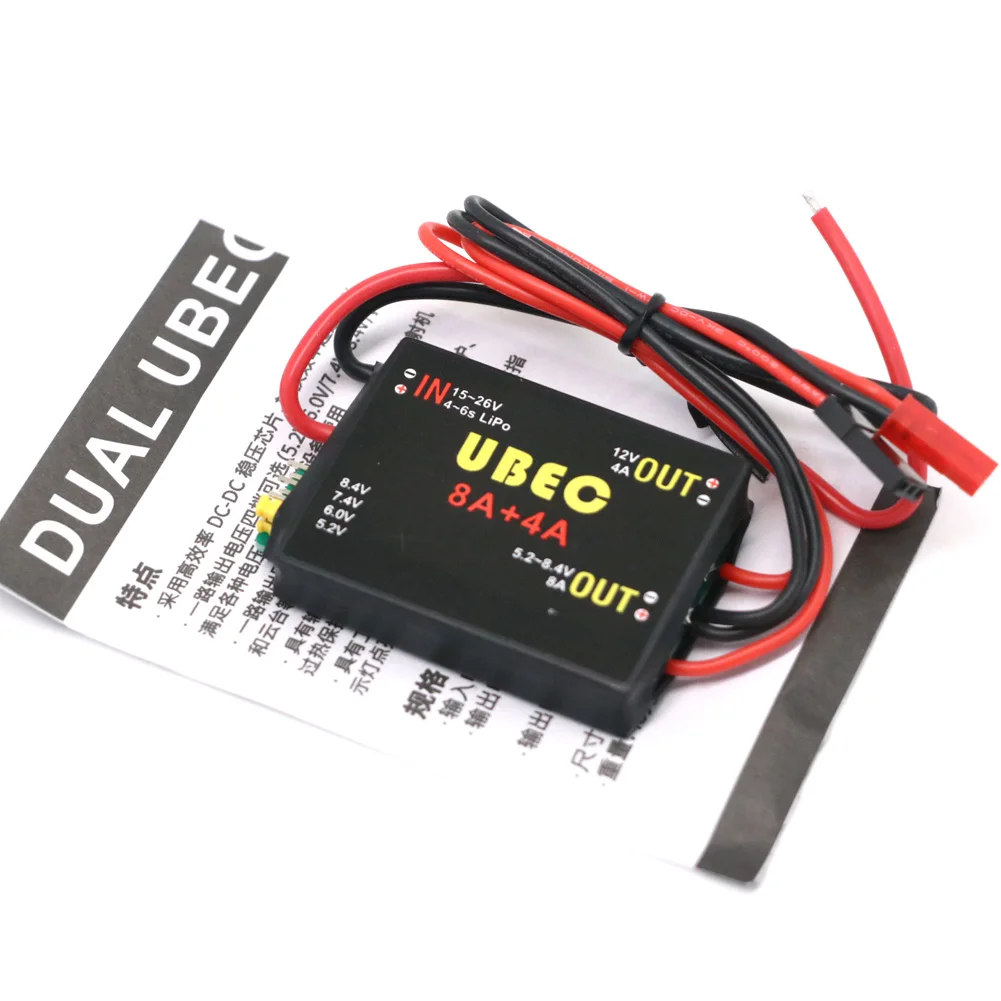

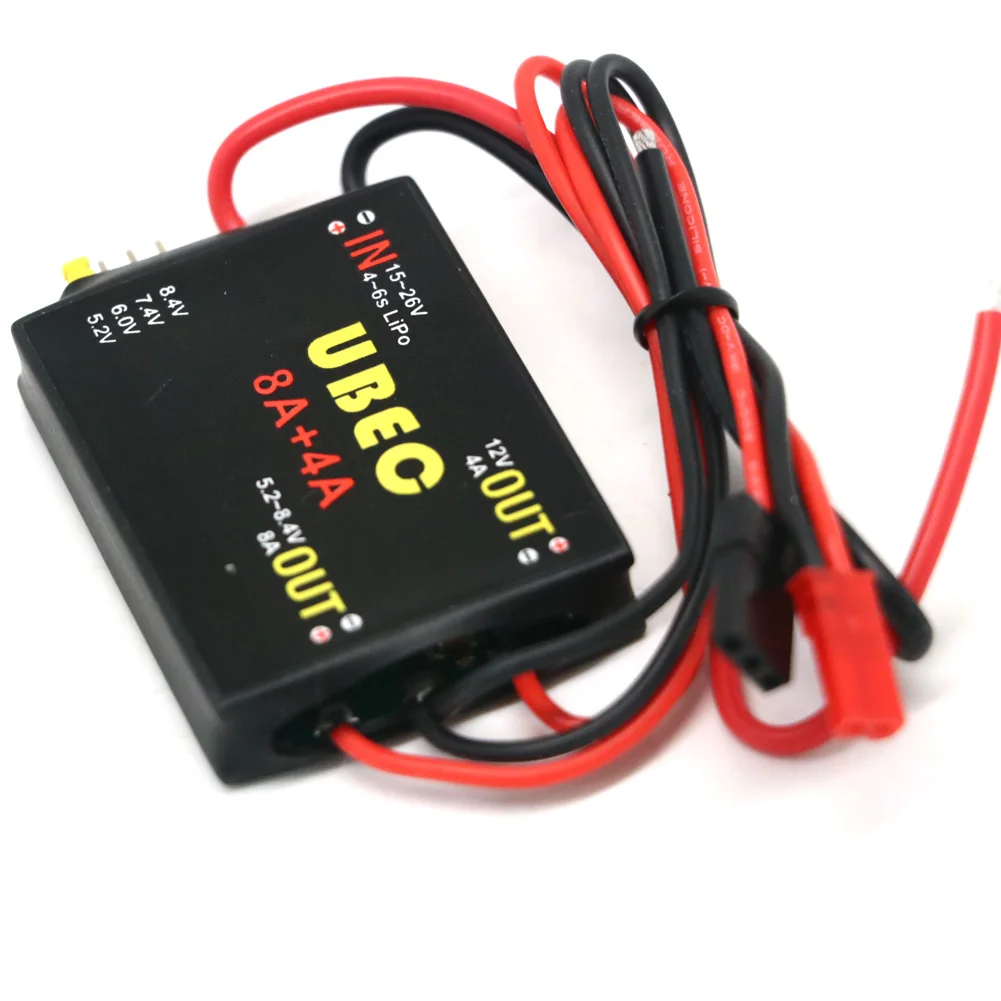

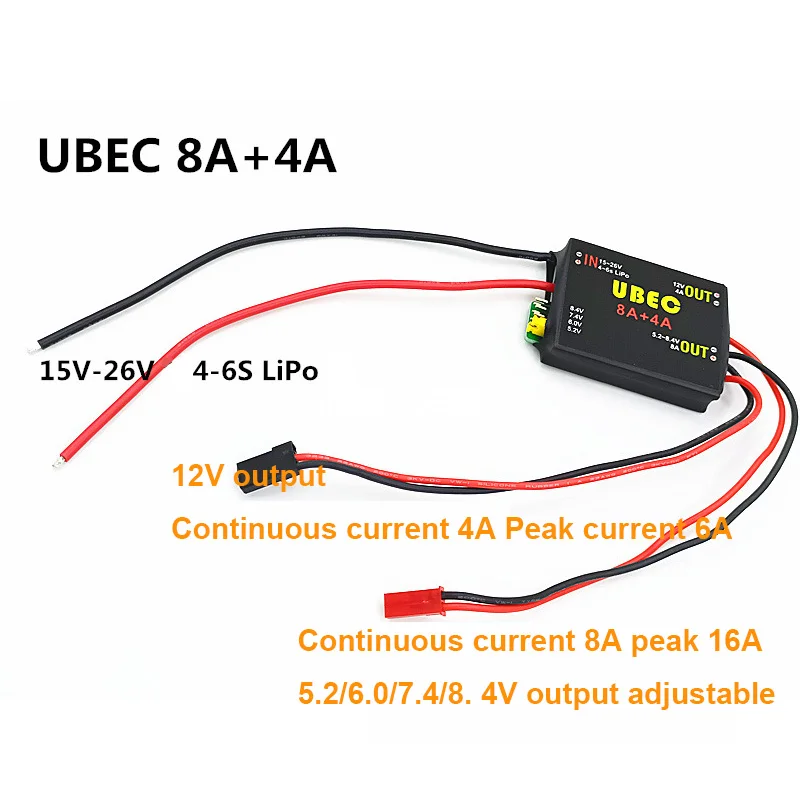

DUAL-UBEC
Input Volts: 15-26V (2-6s LiPo)
Output Volts(port-1):5.2/6.0/7.4/8.4v)
Output Volts(port-2): 12v
Volts Control :Jumper Pin
Output Volts(port 1):Max 8amp/Peak 16amp
Output Volts(port 2):Max 4amp/Peak 6amp
Size without wire:51*36*8
Net Weight: 46g

Features
1. Using high-efficiency DC-DC voltage regulator chip, the conversion efficiency exceeds 90%.
  2. One output voltage can be selected in four gears (5.2/6.0/7.4/8.4V), which can meet the role of aircraft model equipment of various voltage specifications
3. One output fixed 12V voltage, which can be used by cameras, video transmitters and PTZs and other equipment
4. With input reverse connection protection, overcurrent protection, output short circuit protection, overheating protection and other functions, safe and reliable
5. Has a working status indicator, which lights up when the UBEC is working normally

Specification:
1. Input voltage: 15V-26V (4-6S)
2. Output voltage 5.2/6.0/7.4/8.4V optional, all the way fixed 12V
3. Output current: 5.2V-8.4V: continuous 8A, instantaneous 16A
12V: 4A continuously, 6A instantaneously
