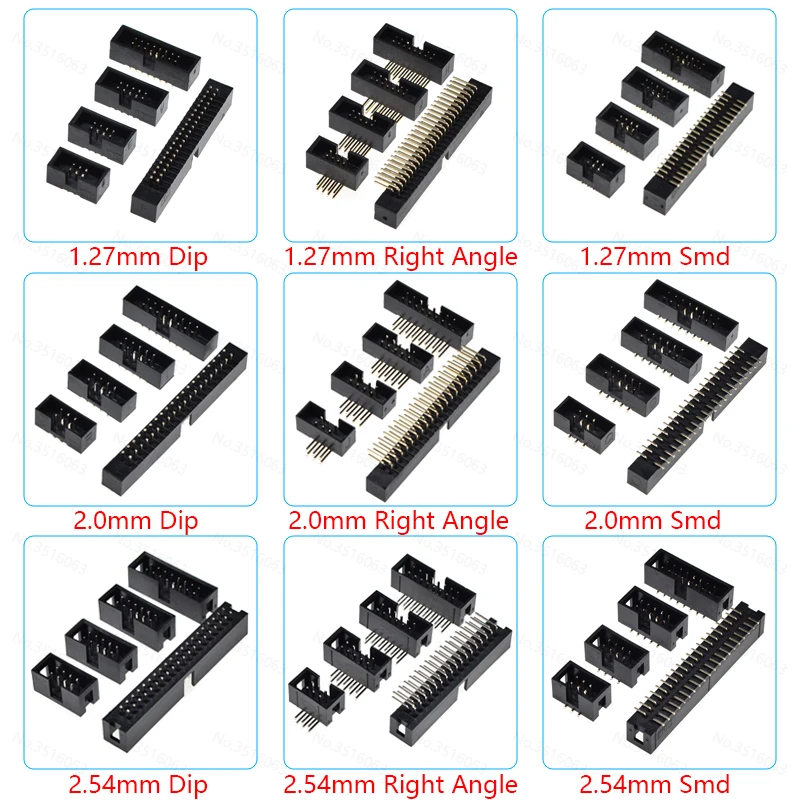

5/10Pcs DC3 1.27/2.0/2.54mm Dip/SMD/Right Angle 6/8/10/16/20/26/34/40/50Pin Male Socket Straight Idc Box Headers Cable Connector
Price range: $3.57 through $18.45
Sale
2PCS Self Reset Rocker Switch Momentary KCD4 Power Switch ON-OFF-ON Reset 3 Position 6 Pins 16A 250VAC/ 20A 125VAC
Price range: $4.03 through $6.55
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
Certification: CCC,CQC
Choice: yes
Current: 10A
Features: 6 Pins
High-concerned chemical: None
Is Smart Device: No
Item Type: SWITCHES
Material: Copper
Model Number: Momentary Rocker Switch KCD4
Origin: Mainland China
Switch Type: Rocker Switch
Warranty: Standard
semi_Choice: yes

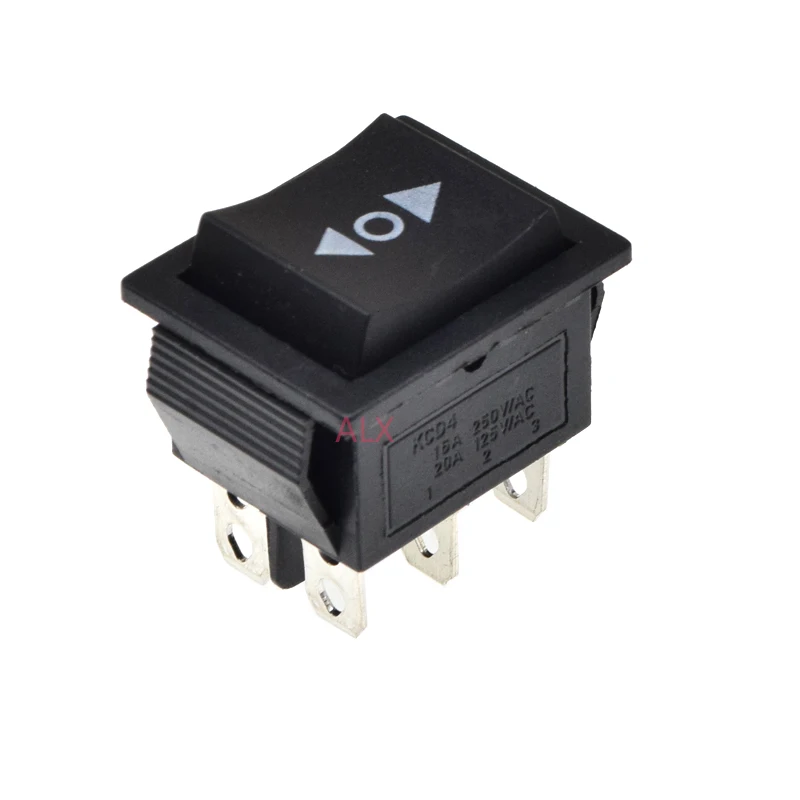

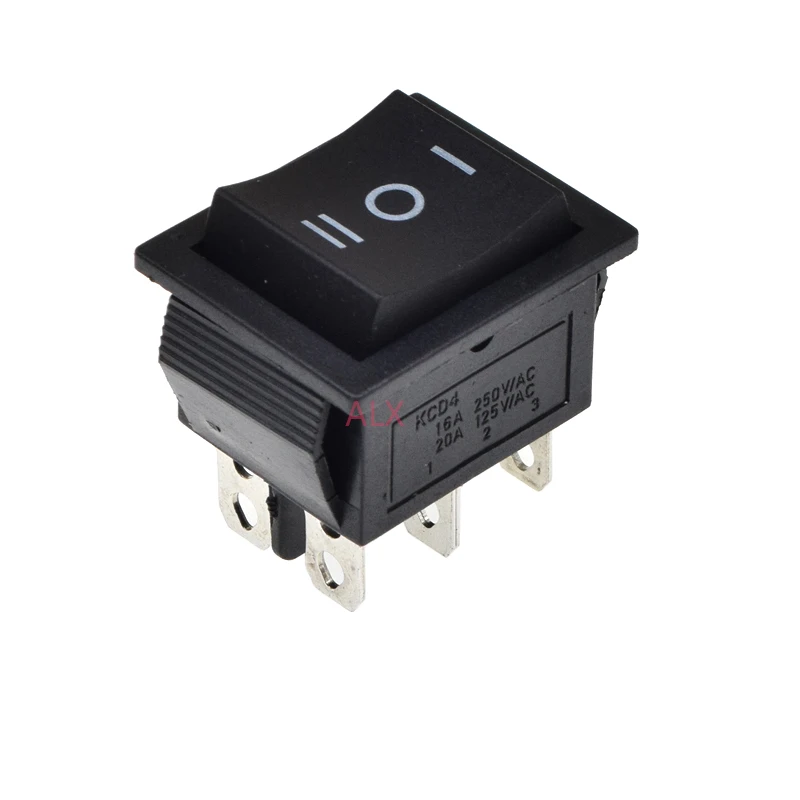

KCD4 black Rocker Switch Power Switch
ON-OFF-ON 3 Position
6 Pins 16A 250VAC/ 20A 125VAC

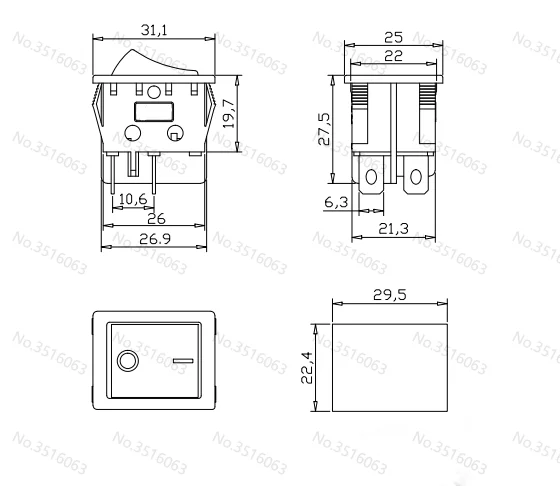

Overall Size: 31 x 25 x 35mm / 1.2" x 1" x 1.4" (L*W*H)
Mounting Size: 27 x 21mm / 1.1" x 0.8" (L*W)

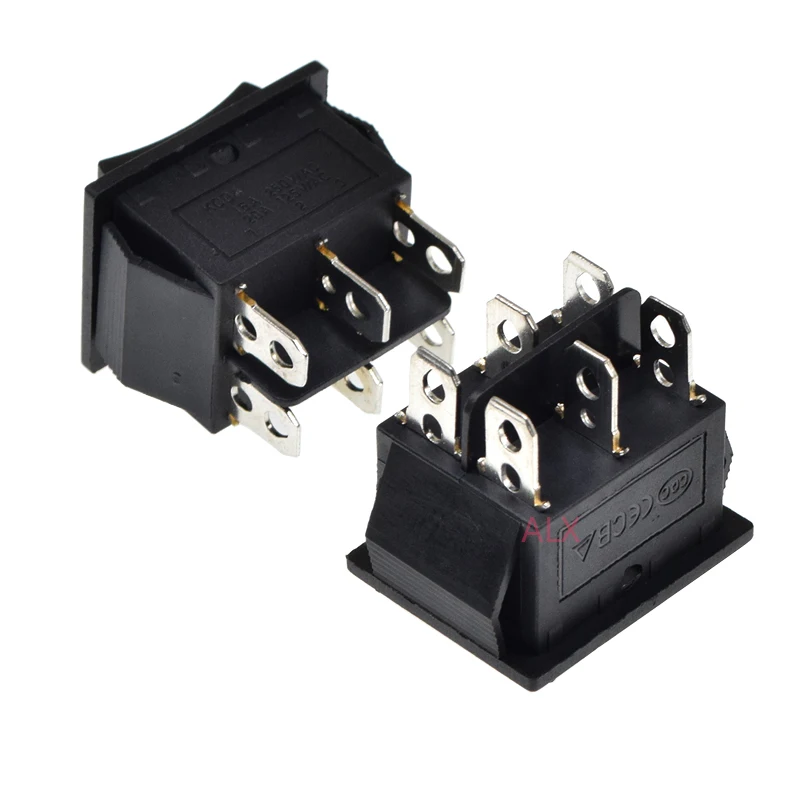

momentary rocker switch 6 flat pins,
double sides spring return to middle after released
Additional information
| Color | B Reset Switch, A Reset Switch, Waterproof cover |
|---|
