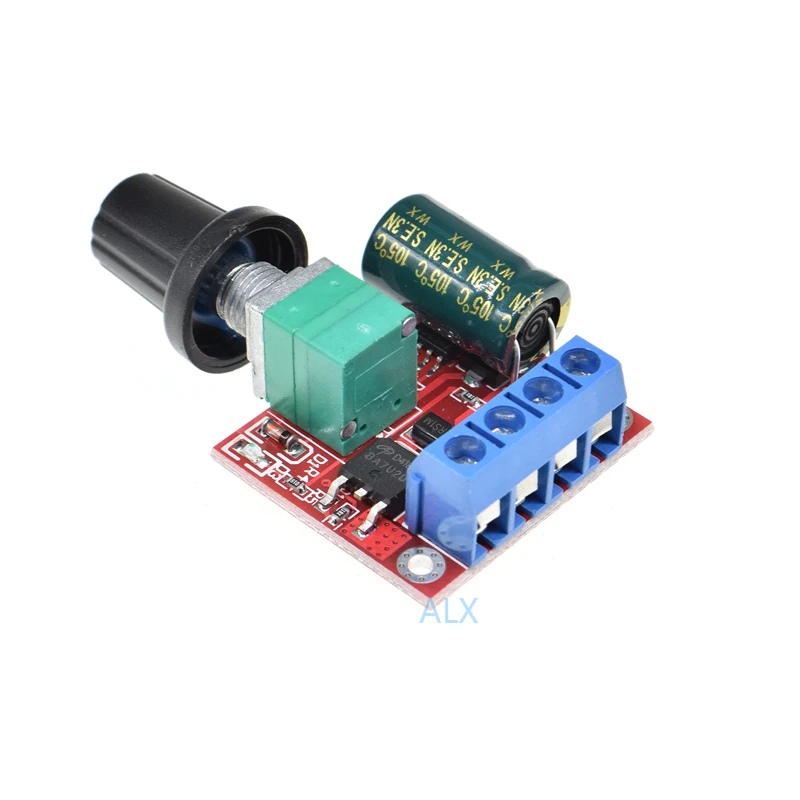

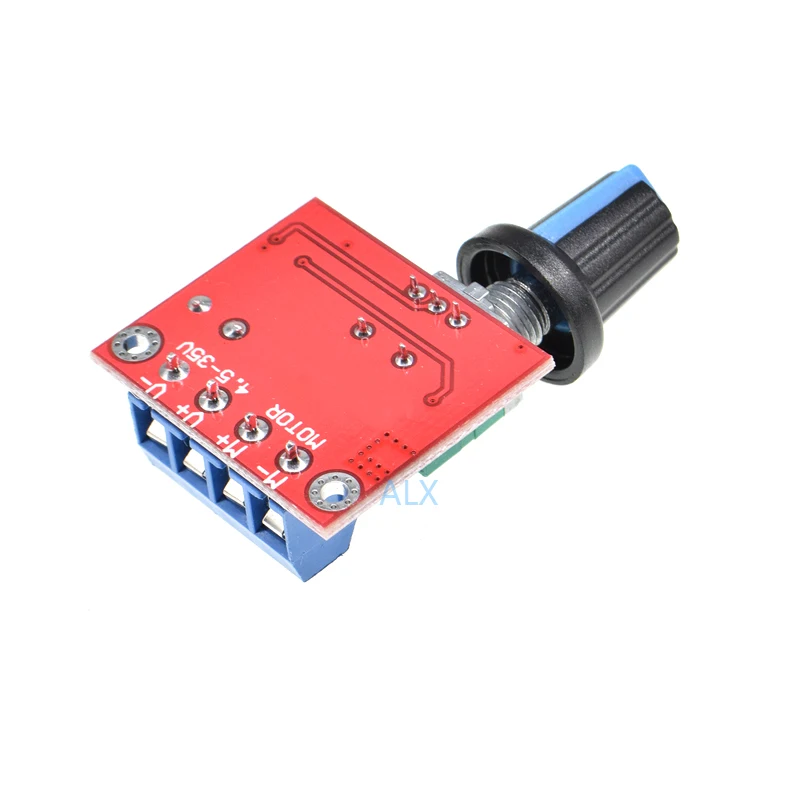

2pcs Pwm Dc 4.5v-35v 5a 90w Mini Motor Speed Controller Speed Regulator Control Adjustable Module Board Led Dimmers Switch
Original price was: $19.02.$12.68Current price is: $12.68.
99959 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: None
Model Number: 90W
Origin: Mainland China
Specifications:
Operating voltage: DC4.5V-35V
Output current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz
Size: 30mm x 26mm x 14mm (Without Handle)
Precautions:
DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!
DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
Package Included:
2PCS x 5V-35V Speed Control Switch
