1PCS three WIRE 0.28″ red green blue yellow LED Digital voltmeter 0.28 inch LCD dc 0-100V Voltage Meter Monitor Tester
Price range: $5.68 through $6.64
"*" indicates required fields
Description
SPECIFICATIONS
Accuracy Class: 1%
Battery Included: No
Brand Name: NONE
DIY Supplies: Electrical
Dimensions: 23 x 10 mm
Display Type: Digital Only
High-concerned chemical: None
Model Number: 0.28 DC0-100V
Operating Temperature: 0-30V
Origin: Mainland China
Power Supply: DC
Voltage range: 6-24V DC
Range DC DC0-100V, 2 and 3-wire products Universal, to break the routine voltmeter, is the latest design, can work directly in 5V, 9V, 12V, 24V and other circuits, without regulation. With three wiring, easy access to car /battery car / motorcycle-car line, with reverse polarity protection, line reversal will not burn. For monitoring thebattery voltage, battery voltage state to grasp, it can also be used for other products voltage measurementpurposes.
Note 2 line with the highest input voltage can not exceed 30V, otherwise there is the risk of burnt.
NOTE: Three-line voltage range 0-100V, but also can be used as second-line use in 40V voltage to within
Technical parameters
2 line working voltage: 4.0~40V (with reverse protection function)
2 line detection voltage: 0.0~40V
3 line working voltage: 4.0~40V (with reverse protection function)
3 line detection voltage: 0.0~100V
Working current: <20mA
Display mode: 0.28 "LED,
Mounting hole: 23 x 10 mm
The measurement rate: more than 200mS/ times
Measuring accuracy: 3 per thousand
Limit working condition
Low working voltage: +4.0V
Maximum working voltage: +40V
Working temperature: -10 ~ +65
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
No direct exposure to sunlight
Main features:
1 product stability, high accuracy
2 standard size, easy to install
3 power supply with polarity protection circuit
Package Included:

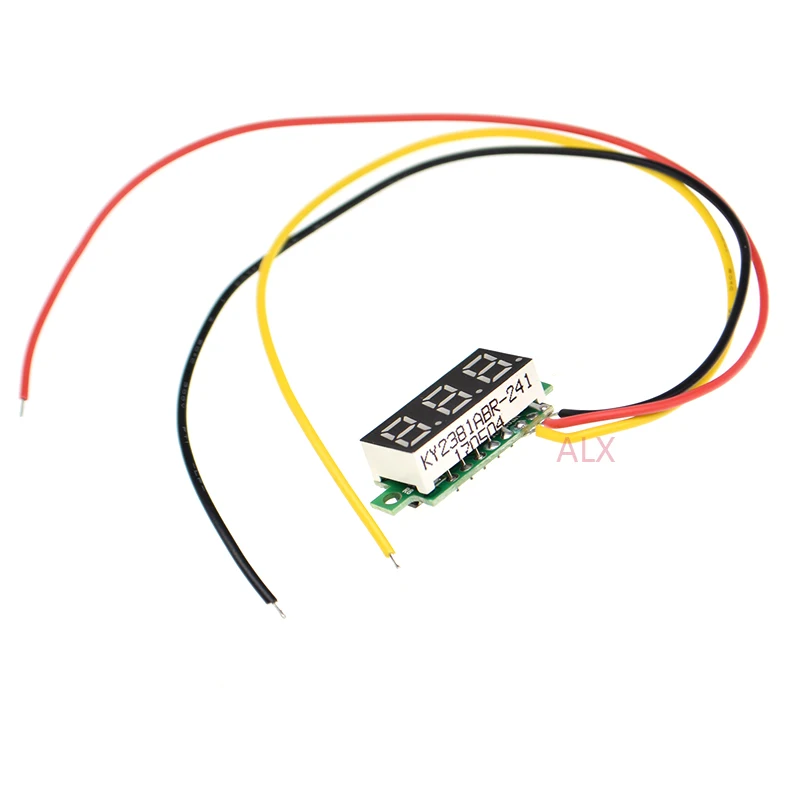

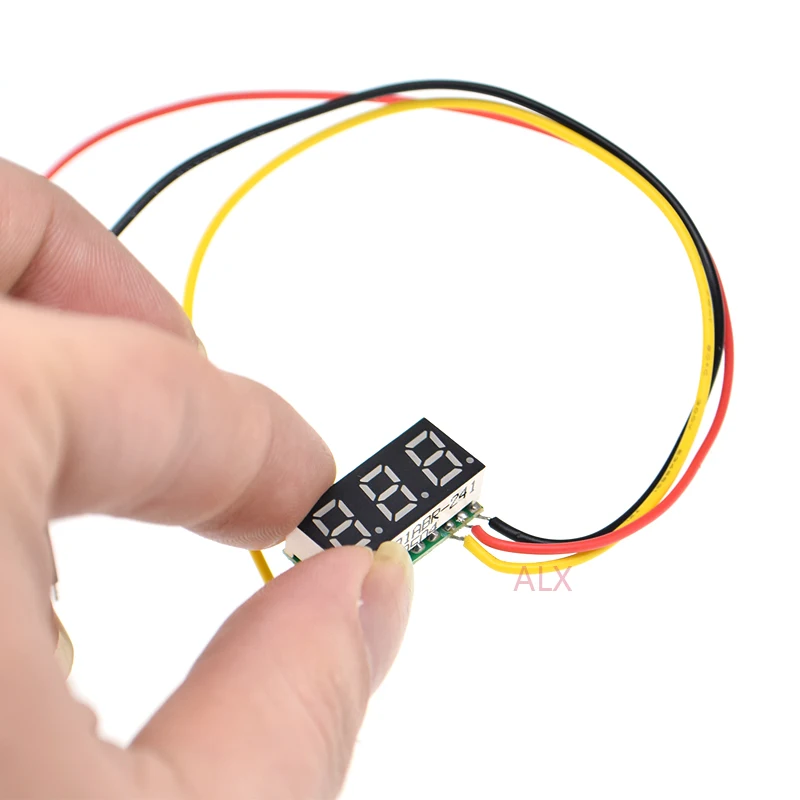

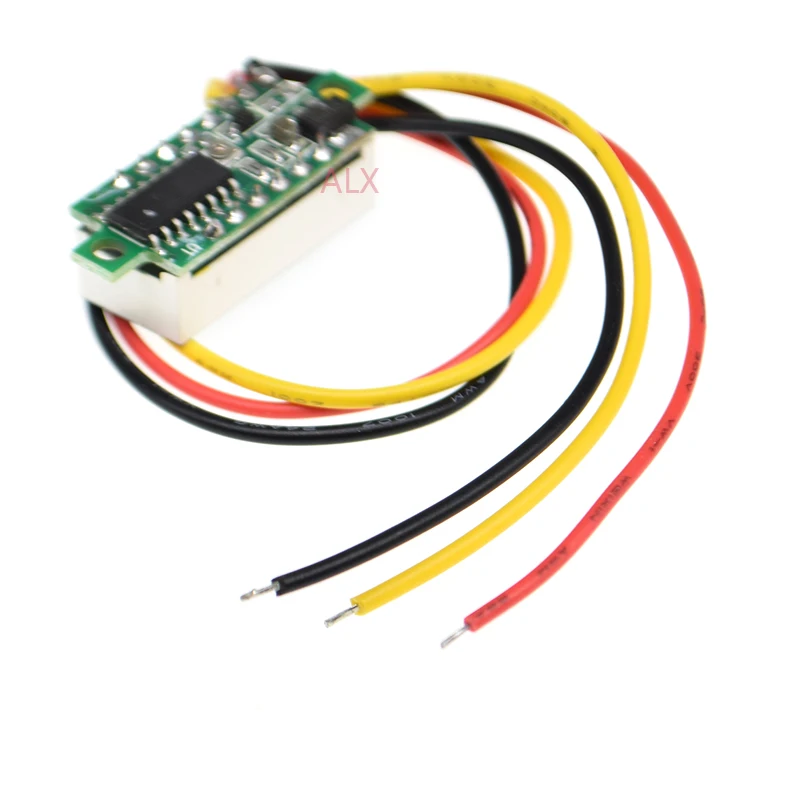

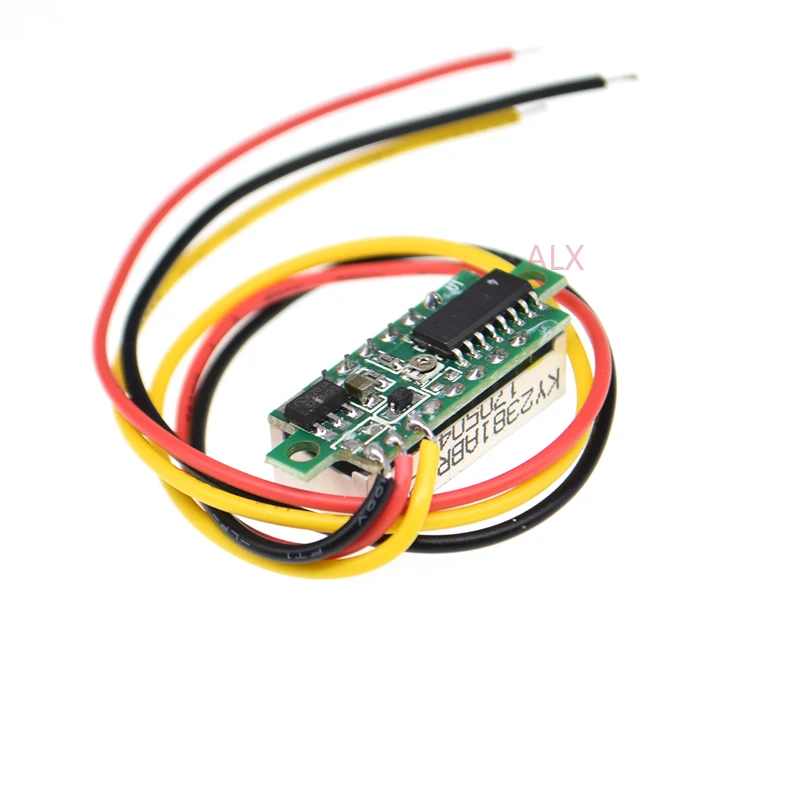

1PCS Mini 0.28 inch 0.28" 3 Wires Digital Voltmeter Blue Red Green Yellow LED Display DC 0-100V Voltage Meter
Additional information
| Color | Red, Blue, green, Yellow |
|---|
