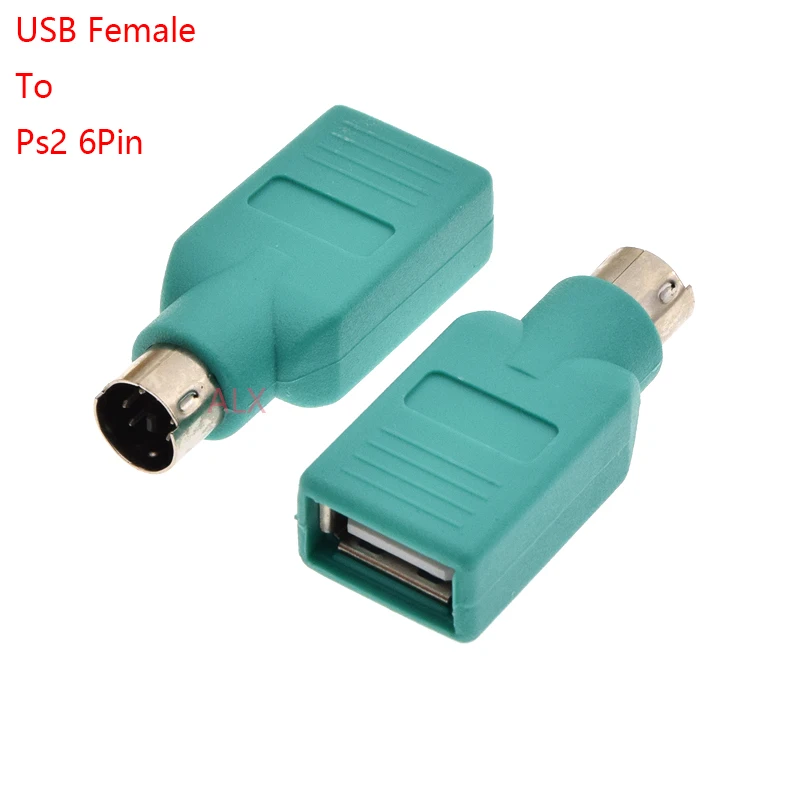

1pcs Usb Female To Ps2 Ps / 2 Mouse Keyboard Converter Male Adapter Computer Converter In Stock
Original price was: $9.54.$6.36Current price is: $6.36.
Sale

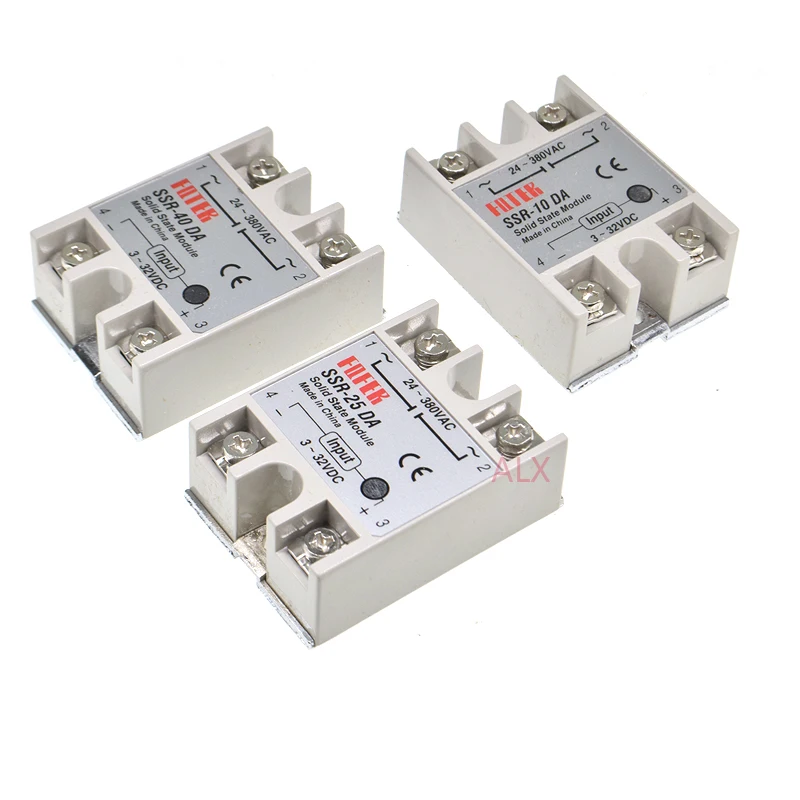

1pcs single Phase Solid State Relay SSR-10DA/25DA/40DA SSR MODULE 3-32V DC control 24-380V AC
Price range: $18.76 through $19.16
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
Contact Load: Low Power
High-concerned chemical: None
Model Number: SSR
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Theory: Solid State Relay
Use: General Purpose
Voltage: 32V
is_customized: Yes
SSR -10DA Single phase Solid state relay
| Load Current: | 10A |
| Load Voltage: | 24~380VAC |
| Control Voltage: | 3~32VDC |
| Control Current: | 3~25MA |
| On Voltage: | ≤ 1.5VAC |
| Off Leakage Current: | ≤4MA |
| On-off Time: | ≤ 10MS |
| Dielectric Strength: | 2500VAC |
| Insulation Resistance: | 100M Ω /500VDC |
| Ambient Temperature: | -25~+75°C |
| Work instruction: | LED |
| Weight | 90g |

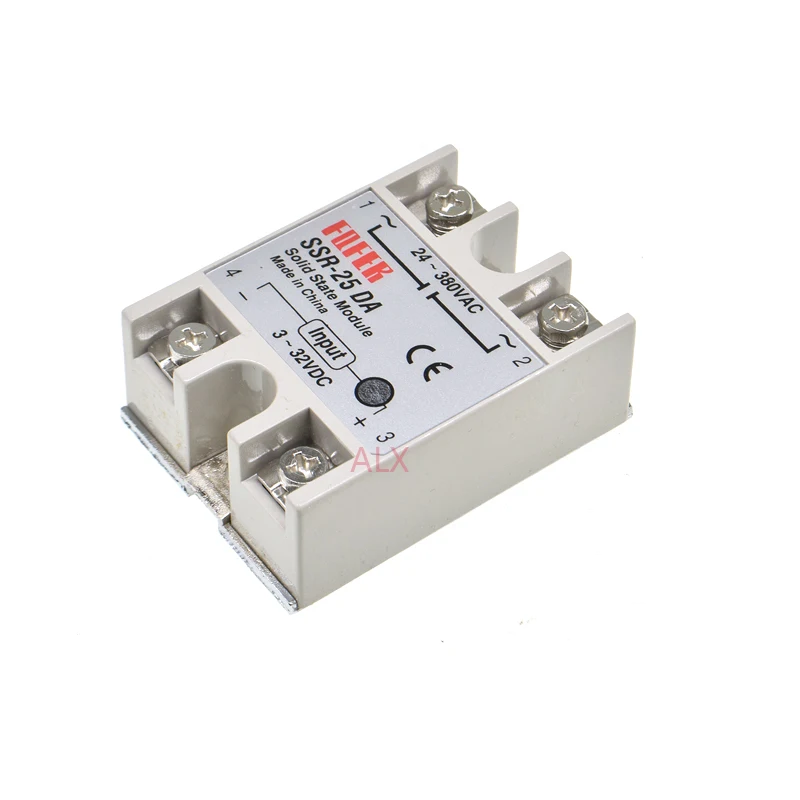

SSR -25DA Single phase Solid state relay
| Load Current: | 25A |
| Load Voltage: | 24~380VAC |
| Control Voltage: | 3~32VDC |
| Control Current: | 3~25MA |
| On Voltage: | ≤ 1.5VAC |
| Off Leakage Current: | ≤4MA |
| On-off Time: | ≤ 10MS |
| Dielectric Strength: | 2500VAC |
| Insulation Resistance: | 100M Ω /500VDC |
| Ambient Temperature: | -25~+75°C |
| Work instruction: | LED |
| Weight | 90g |

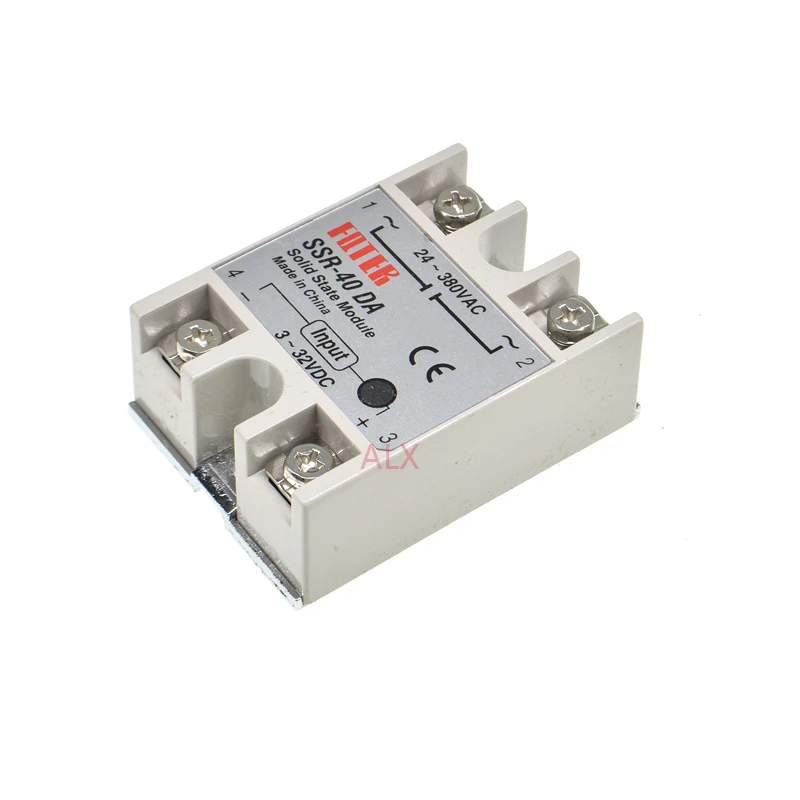

SSR -40DA Single phase Solid state relay
| Load Current: | 40A |
| Load Voltage: | 24~380VAC |
| Control Voltage: | 3~32VDC |
| Control Current: | 3~25MA |
| On Voltage: | ≤ 1.5VAC |
| Off Leakage Current: | ≤4MA |
| On-off Time: | ≤ 10MS |
| Dielectric Strength: | 2500VAC |
| Insulation Resistance: | 100M Ω /500VDC |
| Ambient Temperature: | -25~+75°C |
| Work instruction: | LED |
| Weight | 90g |
Additional information
| Size | SSR-40DA, SSR-25DA, SSR-10DA |
|---|
