1pcs Powercon nac3fca+nac3mpa-1 Chassis Plug Panel Connector 3pins 250v Ac Power Male Plug + Female Socket Led Speakon Connector
Price range: $11.28 through $15.76
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
High-concerned chemical: None
Model Number: CONNECTOR
Origin: Mainland China
Voltage: None
Description:
Brand Name: NW
Model Number: 4050
Application: Powercon
Roller Shades: Powercon
Gender: male&female
Withstand Voltage: 250V
Withstand Current: 20A
Contact Resistant: Less than 3m ohm
Lifetime: More than 1000 Times
NAC3FCA
NAC3FCA PowerCON Power In Type A Cable Mount Connector Cable connector, A-type for power-in, screw terminals
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Type A plug and socket is for power IN to a device; Type B plug and socket for linking OUT of a device into another device Lockable 3-pole equipment (AC) connector with contacts for line, neutral and pre-mating safety ground.
High current capacity, rated at 20A / 250V ac Fast and easy locking system Extremely robust and reliable Excellent cable retention UL, C-UL recognized components VDE and SEV approved
NAC3MPA-1

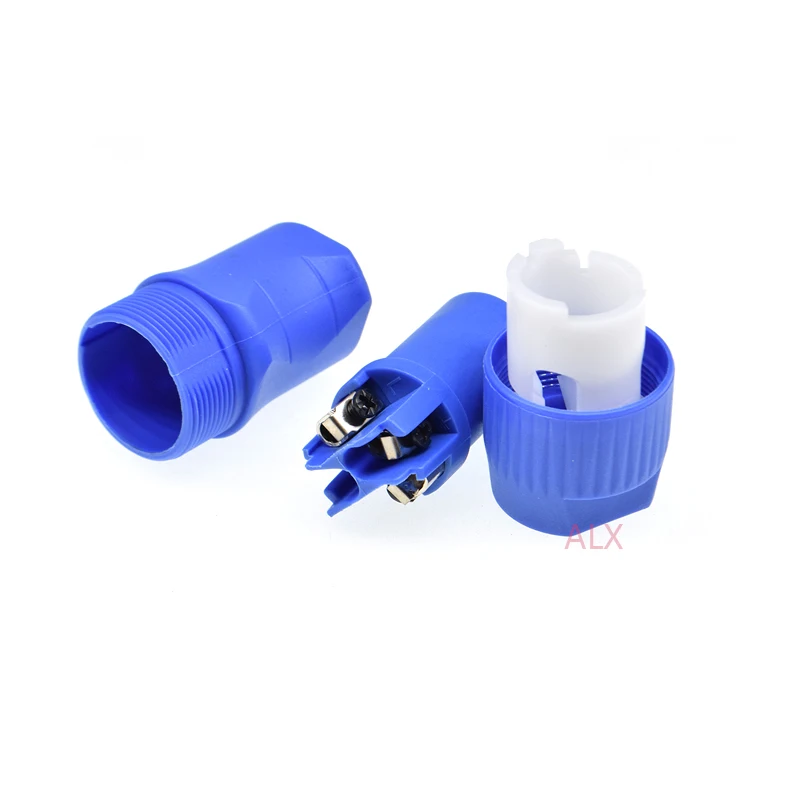

‘Powercon’ offers 20 amp rating in a secure-locking, compact housing, and meets all current safety standards. The series offers a 3-pole connection, with pre-mating earth connection and compact design (the series shares many body components with the ‘Speakon’ twist-lock loudspeaker connector, though naturally is totally incompatible!). The secure strain-relief chuck cable strain relief accepts cables 5-15mm diameter, and the locking is by the twistlock principle with metal latch (as on current ‘Speakon’ connectors).

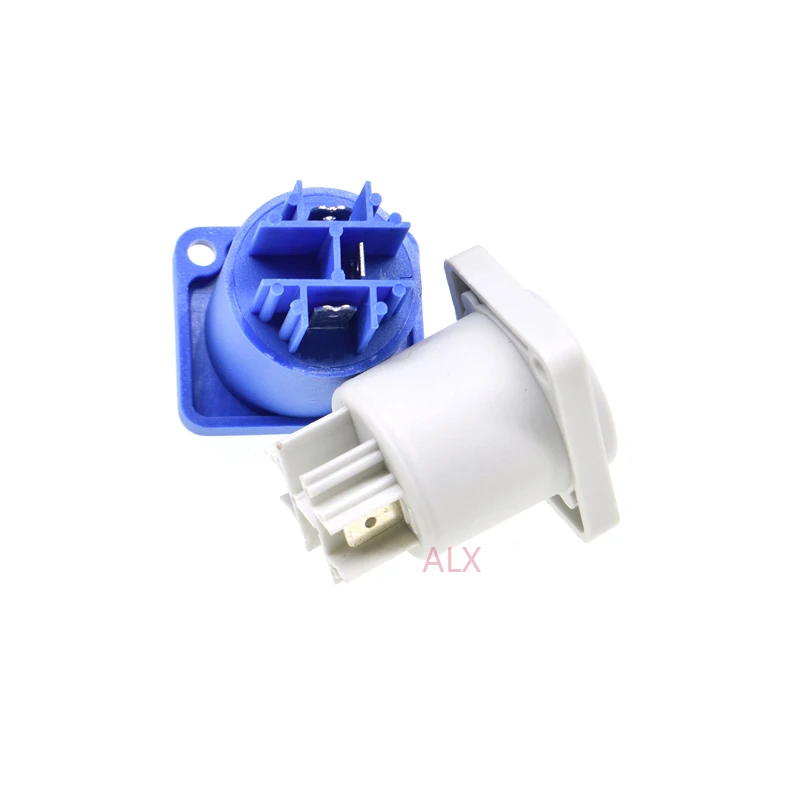

Cable connectors have screw terminals (max. wire size 4mm), panel connectors have ‘Faston’ 4.8 ×0.5mm ‘spade’ terminals. NAC3MP panel connectors have plain mounting holes and are airtight. The -WOT variants are without the terminal barrier, for use with larger insulated spade terminal receptacles.

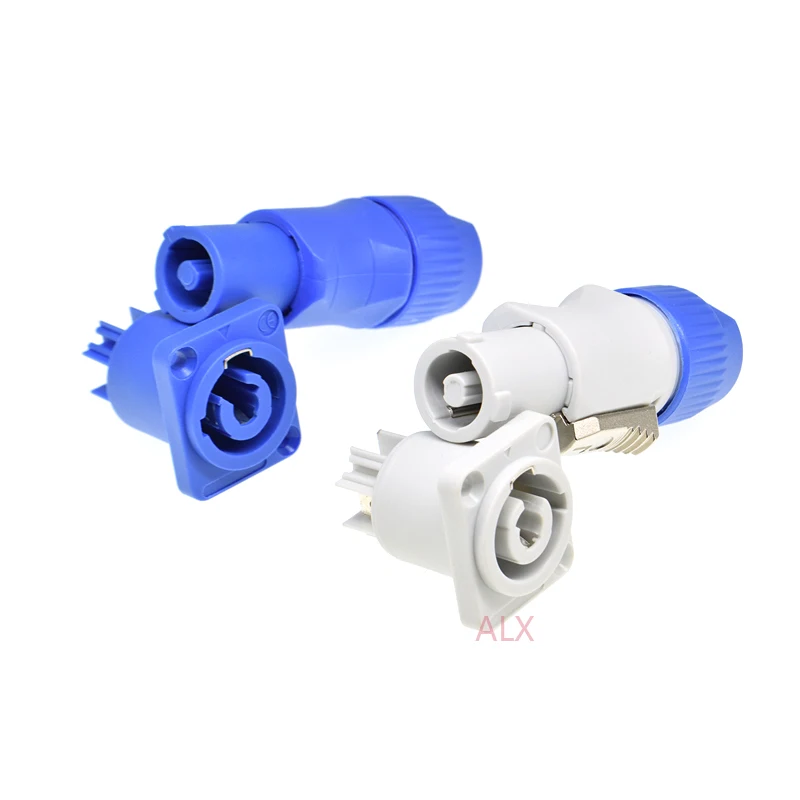

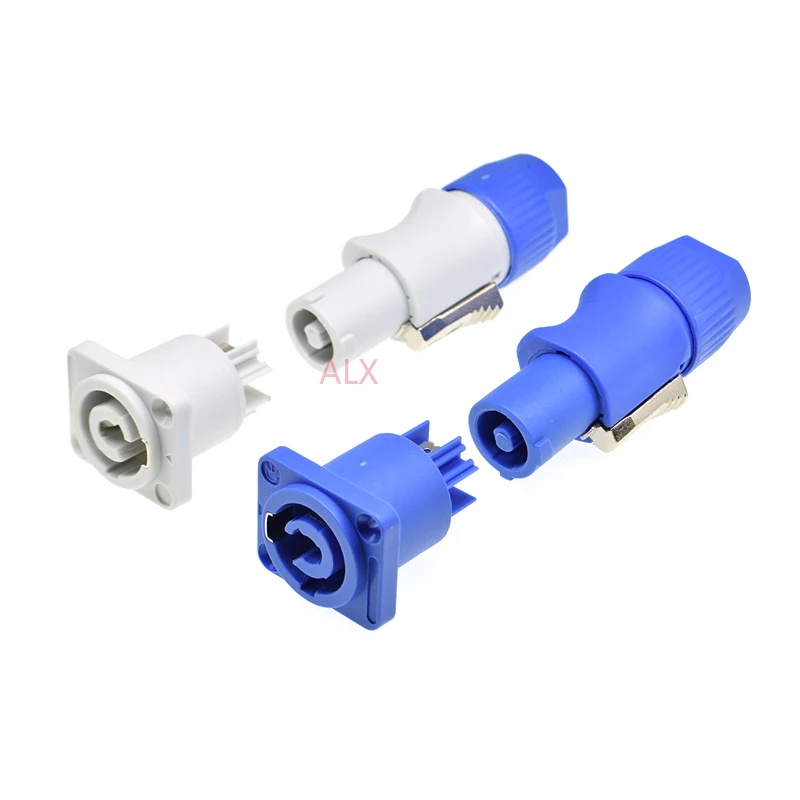

The series has two variants, the A (inlet) and B (outlet) types. Both are similar but have different keying to prevent mismating and are different colours. This means it is impossible to produce a short circuit with correctly wired connectors.

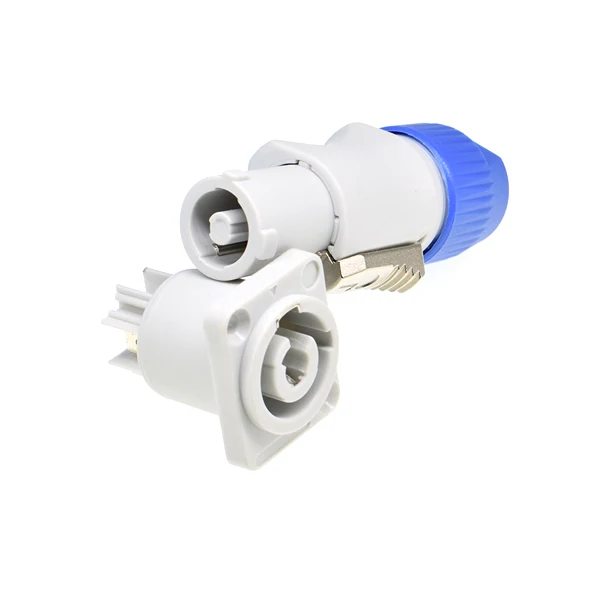

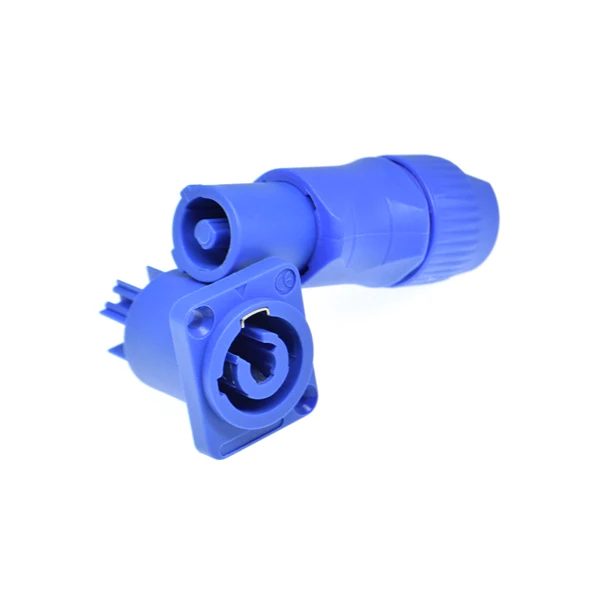

Type A is for power inlet, and is colour coded blue (equivalent in function to IEC320 cable female and panel male). Type B is for power outlet and is colour coded grey (equivalent in function to IEC320 panel female and cable male).
packaging Included:
Quantity: 1 sets
Brand Name: NW
Model Number: 4050
Application: Powercon
Roller Shades: Powercon
Gender: male&female
Withstand Voltage: 250V
Withstand Current: 20A
Contact Resistant: Less than 3m ohm
Lifetime: More than 1000 Times
NAC3FCA
NAC3FCA PowerCON Power In Type A Cable Mount Connector Cable connector, A-type for power-in, screw terminals
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact.
It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
Type A plug and socket is for power IN to a device; Type B plug and socket for linking OUT of a device into another device Lockable 3-pole equipment (AC) connector with contacts for line, neutral and pre-mating safety ground.
High current capacity, rated at 20A / 250V ac Fast and easy locking system Extremely robust and reliable Excellent cable retention UL, C-UL recognized components VDE and SEV approved
NAC3MPA-1
‘Powercon’ offers 20 amp rating in a secure-locking, compact housing, and meets all current safety standards. The series offers a 3-pole connection, with pre-mating earth connection and compact design (the series shares many body components with the ‘Speakon’ twist-lock loudspeaker connector, though naturally is totally incompatible!). The secure strain-relief chuck cable strain relief accepts cables 5-15mm diameter, and the locking is by the twistlock principle with metal latch (as on current ‘Speakon’ connectors).
Cable connectors have screw terminals (max. wire size 4mm), panel connectors have ‘Faston’ 4.8 ×0.5mm ‘spade’ terminals. NAC3MP panel connectors have plain mounting holes and are airtight. The -WOT variants are without the terminal barrier, for use with larger insulated spade terminal receptacles.
The series has two variants, the A (inlet) and B (outlet) types. Both are similar but have different keying to prevent mismating and are different colours. This means it is impossible to produce a short circuit with correctly wired connectors.
Type A is for power inlet, and is colour coded blue (equivalent in function to IEC320 cable female and panel male). Type B is for power outlet and is colour coded grey (equivalent in function to IEC320 panel female and cable male).
packaging Included:
Quantity: 1 sets
Additional information

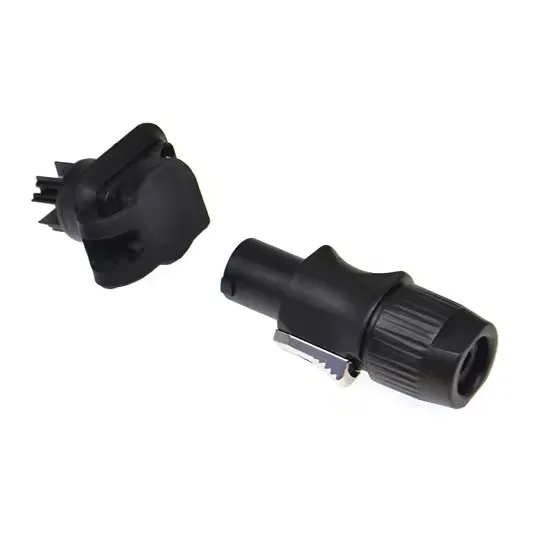

| Color | 1set blue, 1set white, 1Set Black |
|---|
