Description
SPECIFICATIONS
Brand Name: NONE
Certification: CE
High-concerned chemical: None
Origin: Mainland China
Voltage: None

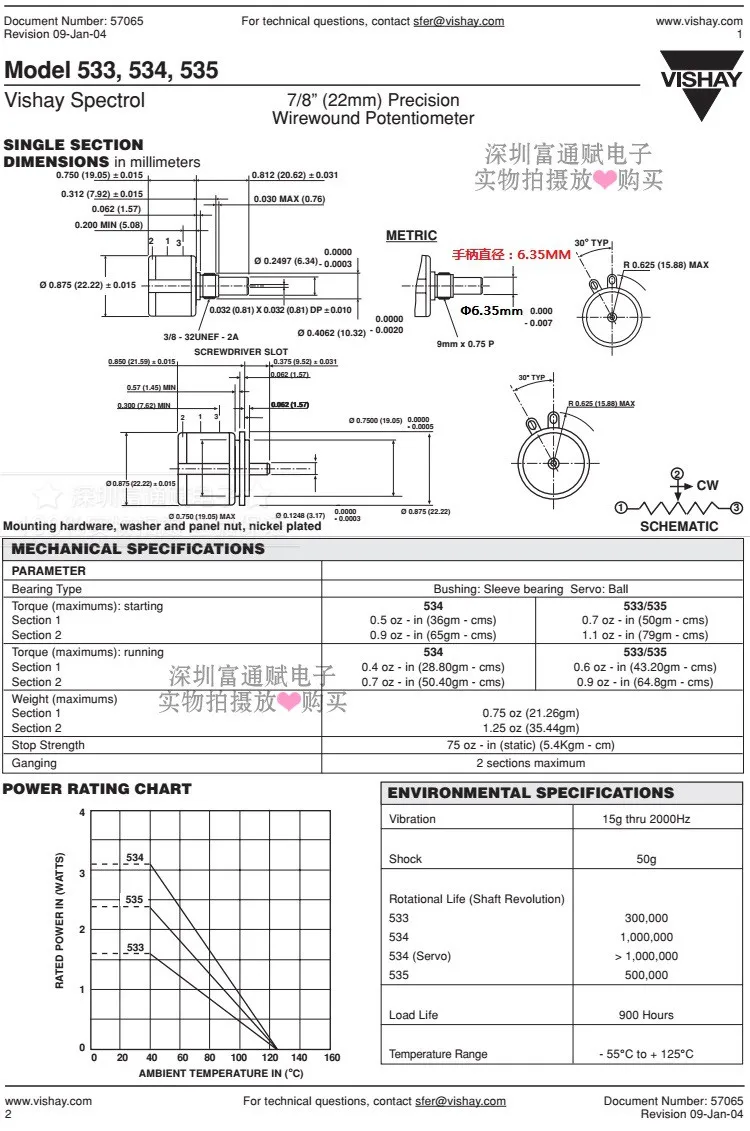

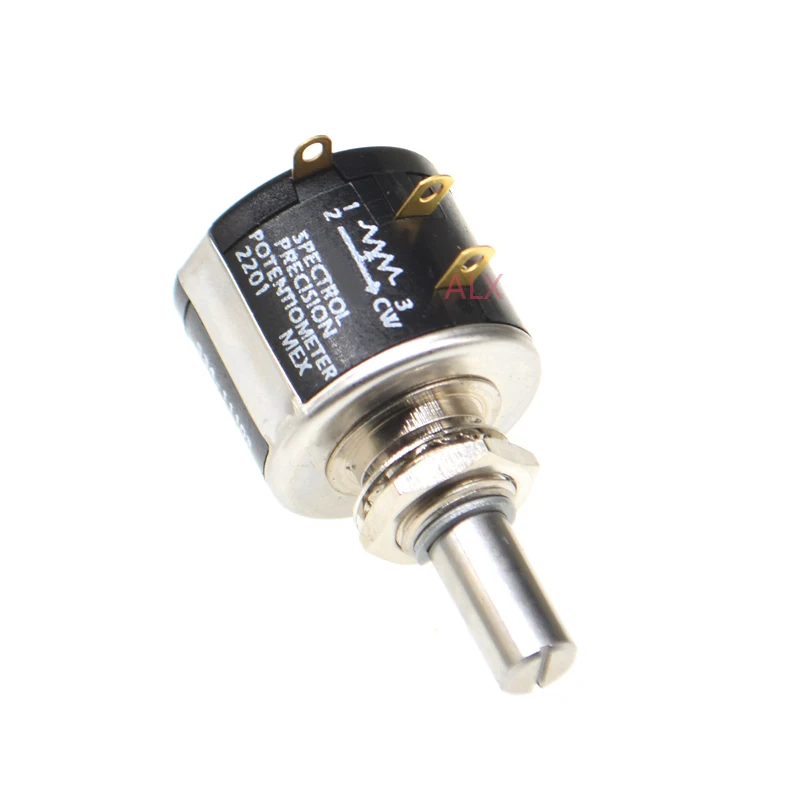

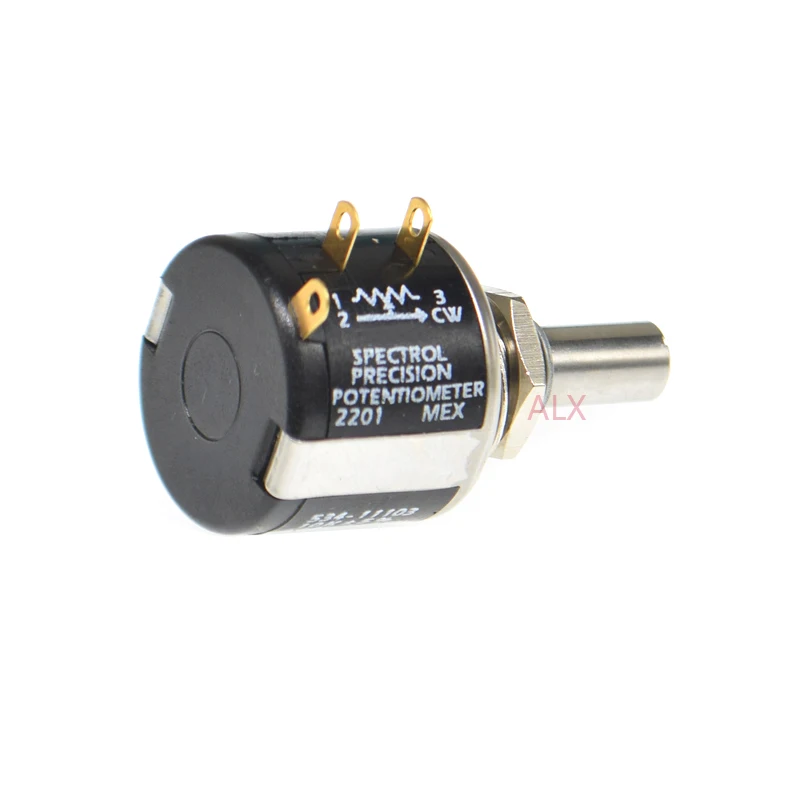

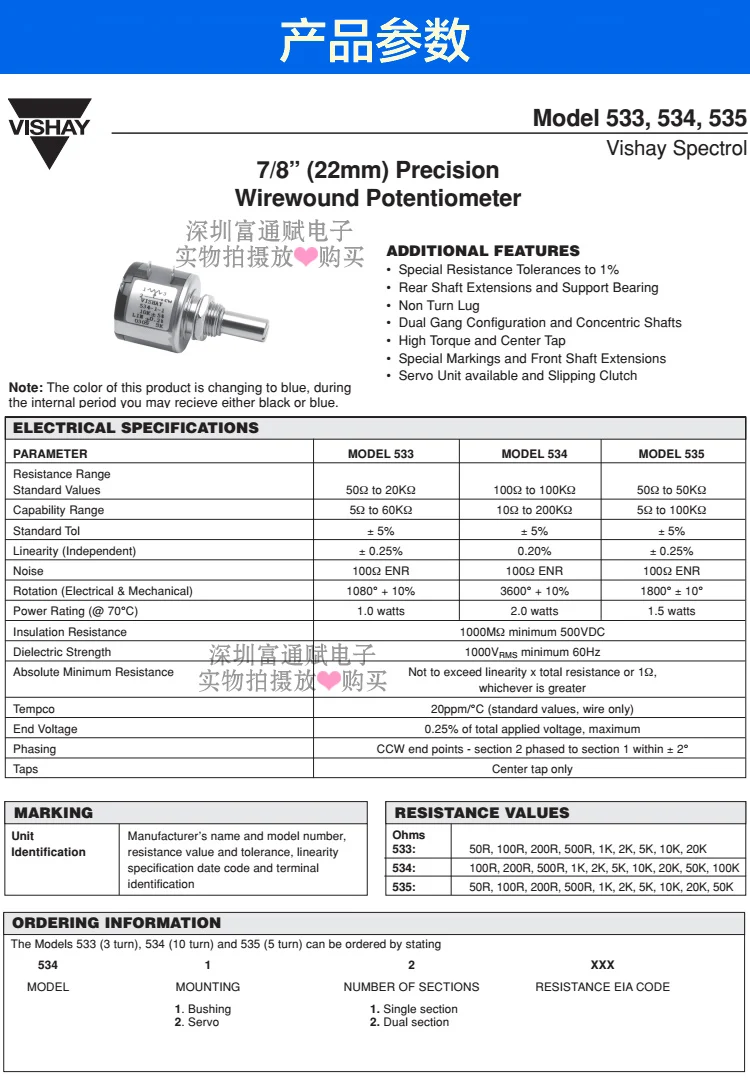

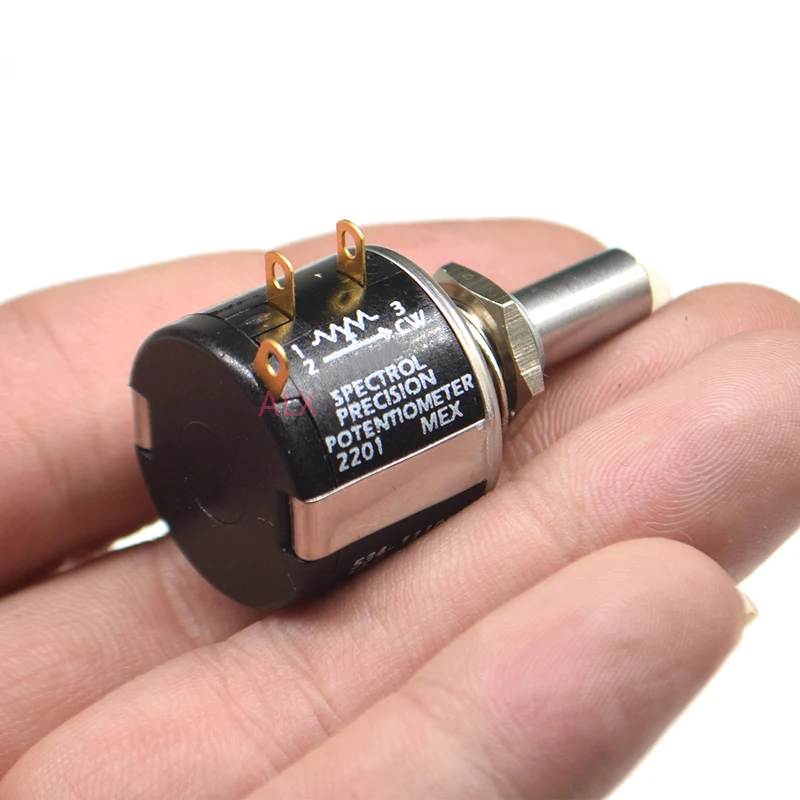

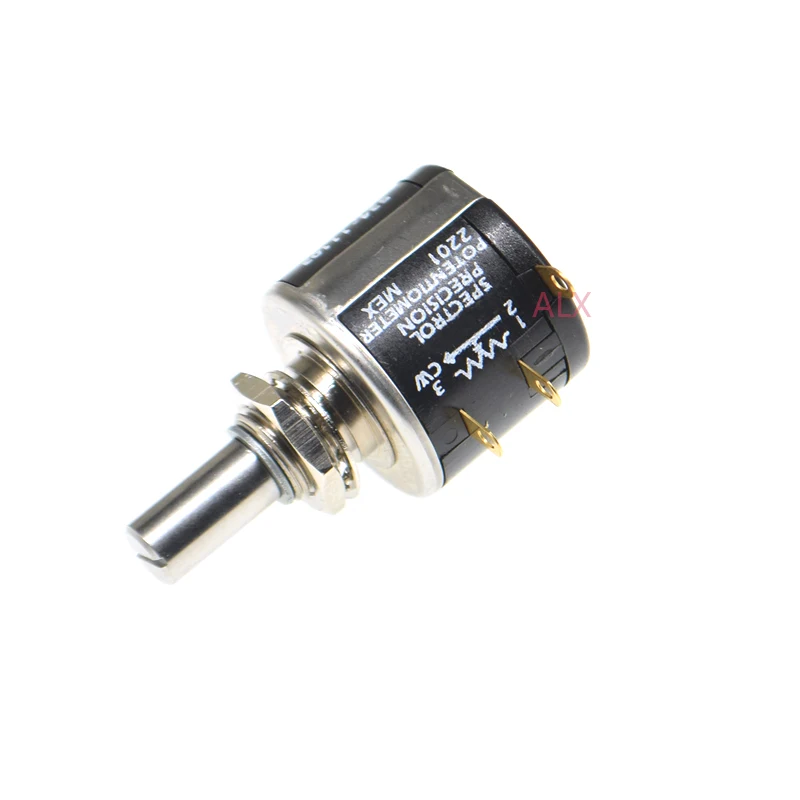

for Vishay spectrol 534-1-1 Precision multi-turn potentiometer
Buyers optional: 500 ohms 1k 2k 5K 10k 20K 50K
Resistance tolerance: ± 5%,
Independent linearity accuracy: ± 0.2%
Electronic travel: 3600 ° ± 10%,
Rated power: 2W;
Spinning life: 1,000,000 revolutions;
Ambient temperature: -55 degrees Celsius to +125 degrees Celsius.
Qty: 1pcs
Buyers optional: 500 ohms 1k 2k 5K 10k 20K 50K
Resistance tolerance: ± 5%,
Independent linearity accuracy: ± 0.2%
Electronic travel: 3600 ° ± 10%,
Rated power: 2W;
Spinning life: 1,000,000 revolutions;
Ambient temperature: -55 degrees Celsius to +125 degrees Celsius.
Qty: 1pcs
Additional information
| Color | 1K Ohm, 2K Ohm, 5K Ohm, 10K Ohm, 500 Ohm, 20K Ohm, 50K Ohm, 100K Ohm |
|---|
