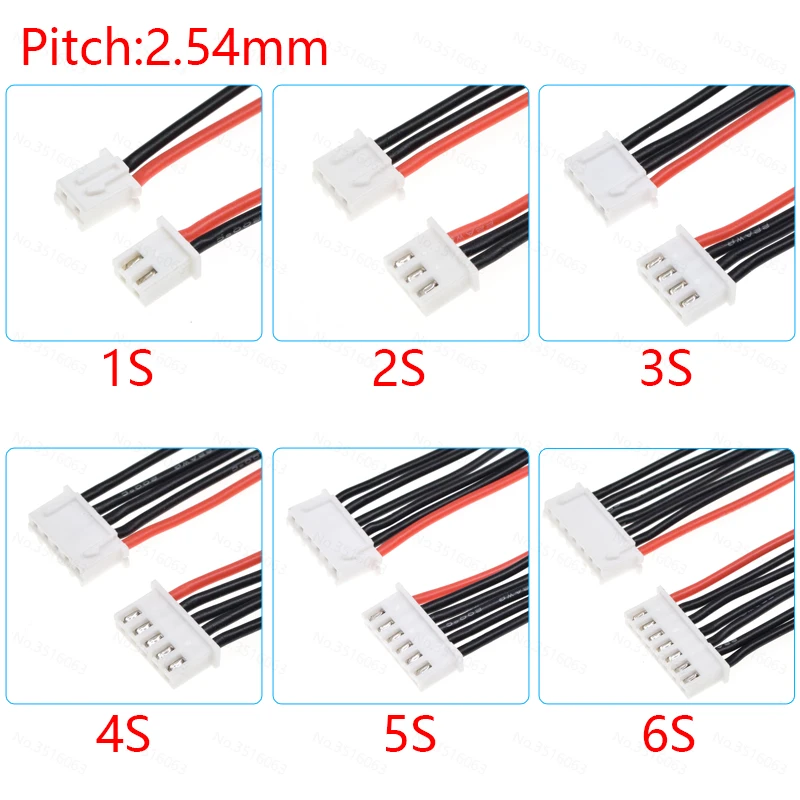

5/10Pcs 1S 2S 3S 4S 5S 6S 22AWG Silicone RC Model Lipo Battery Balancer Charger Plug Wire Connector 2.54mm JST-XH Cable IMAX B6
Price range: $7.14 through $16.49
Sale

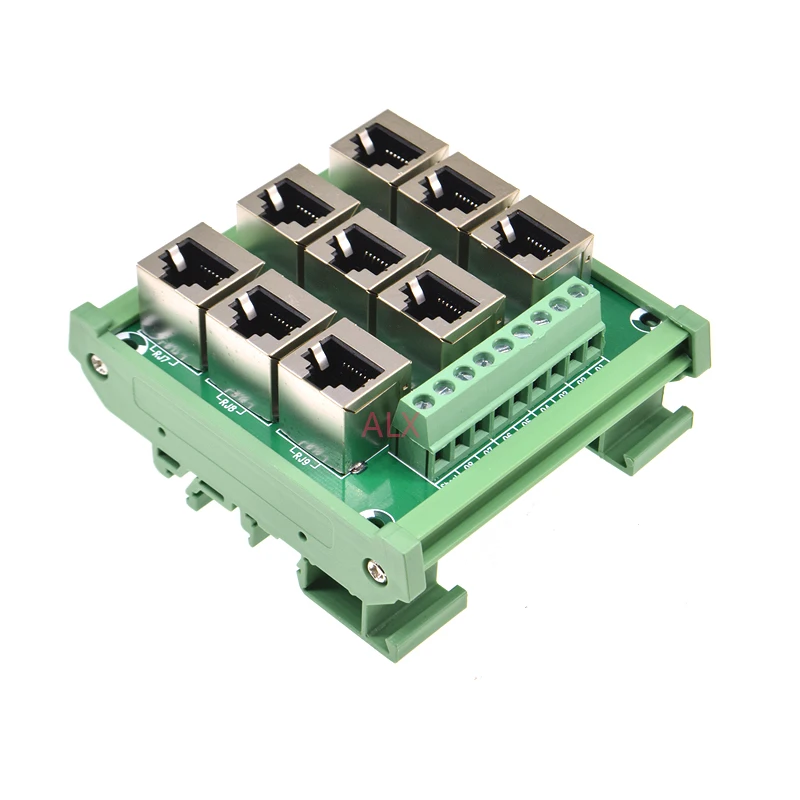

1PCS 9 way 9 port RJ45 8p8c female socket to terminal block adapter pcb board Network port RJ45 Ethernet connector converter
Original price was: $106.32.$62.02Current price is: $62.02.
410 in stock
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: ALINSIN
High-concerned chemical: None
Model Number: rj45
Origin: Mainland China
Voltage: 5 V 12 V 20 V 30 V

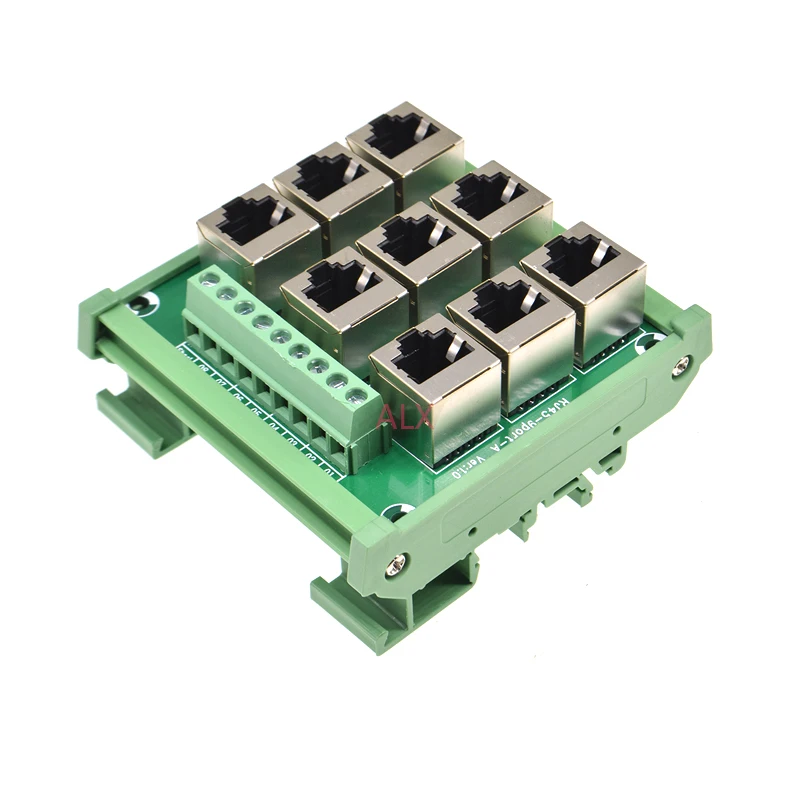

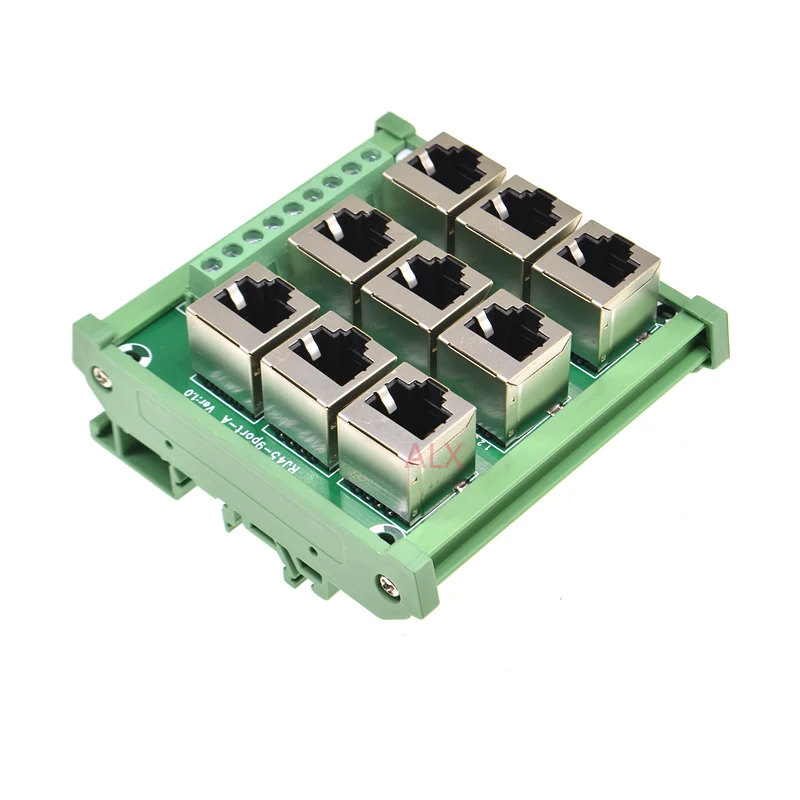

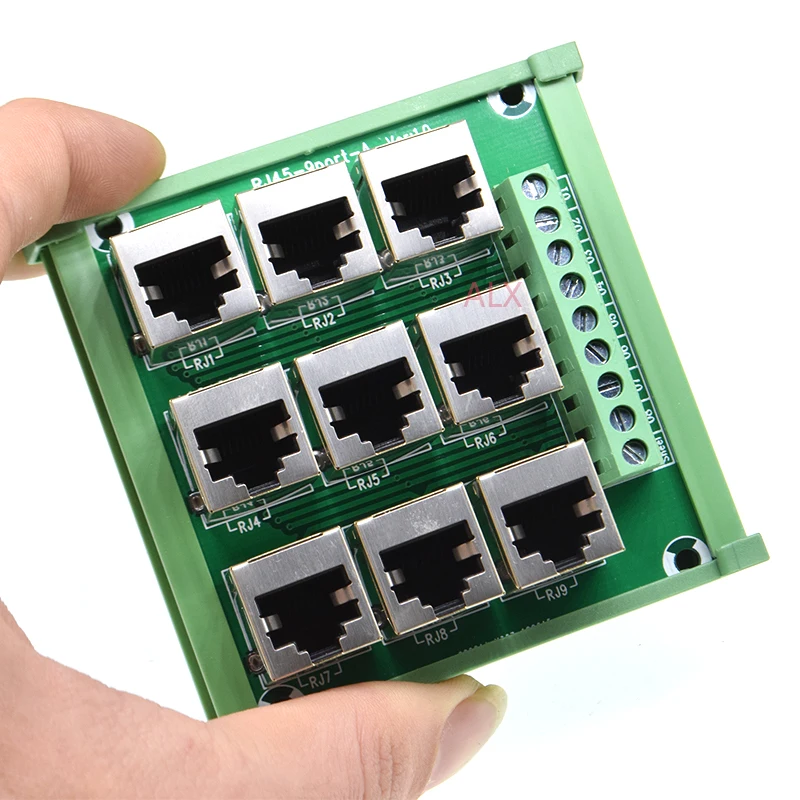

DIN Rail Mount RJ45 Module,RJ45 9-Way Buss Breakout Board,Terminal Block, Connector.

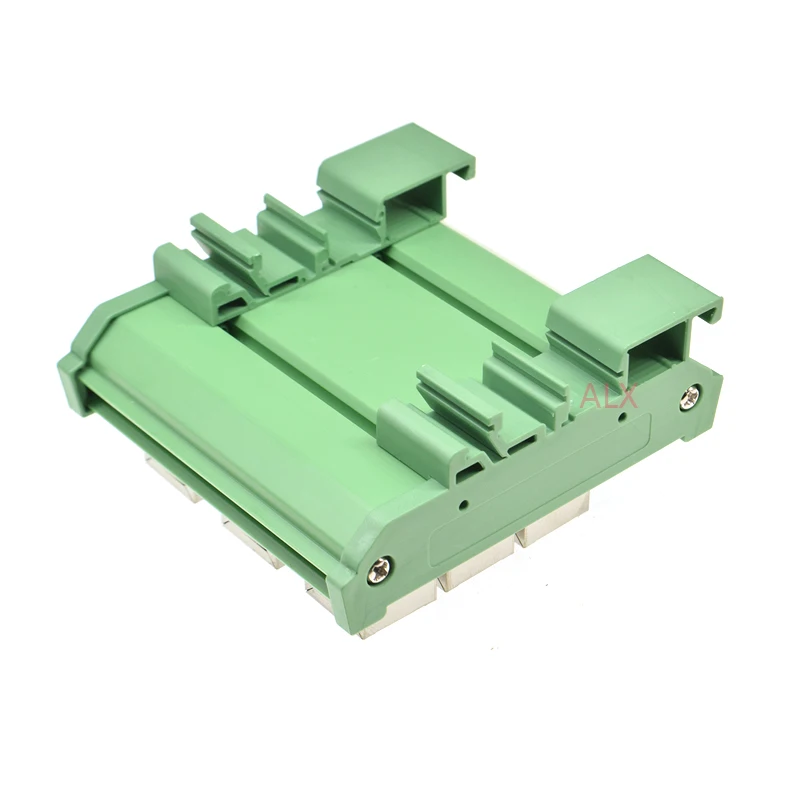

High quality PCB housing/carrier, DIN rail mountable – for width 35 / 32 / 15mm rails.
Part number: RJ45-9A3
RJ45 vertical shielded 8P8C jacks.
FR-4 fiber glass PCB, dual copper layers.
PCB dimensions: 72.5 x 73mm(W x L).
100% new, never used.
Rated voltage: 100V.
Rated current: 500mA / per pin.
Operating Temperature: -20ºC to 50ºC.
Additional information
| Default Title | Default Title |
|---|
