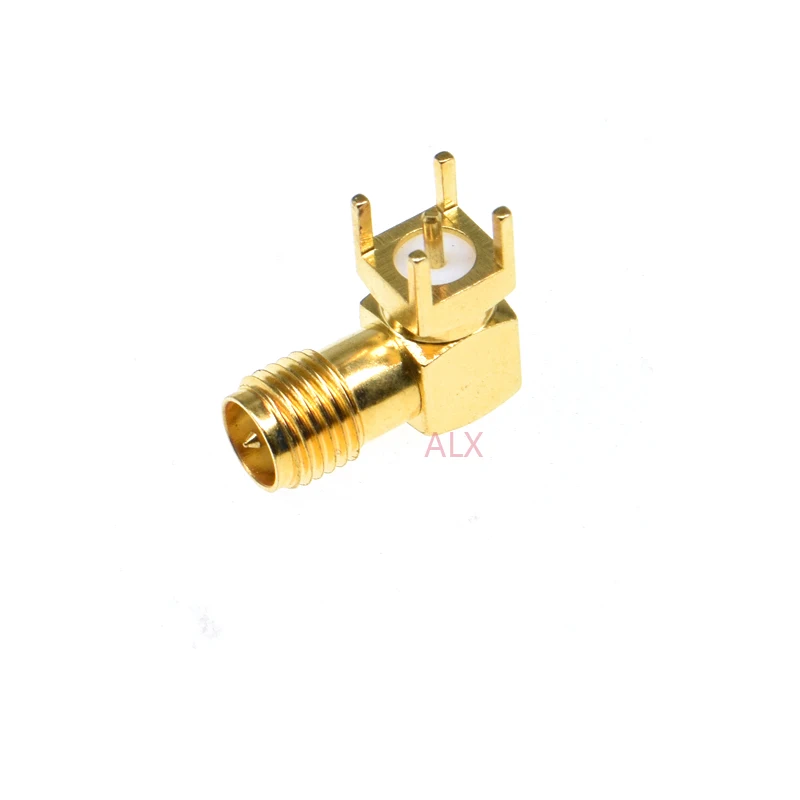

10pcs sma-kwe Rf Adapter Male Plug Right Angle 90 Degree Antenna Connector Pcb Mount Thru Hole
Original price was: $21.06.$14.04Current price is: $14.04.
99969 in stock
"*" indicates required fields
SPECIFICATIONS
Brand Name: ALINSIN
High-concerned chemical: None
Model Number: SMA-KWE
Origin: Mainland China
Voltage: None
电压: 1V 2V 4V 5V 12V 12V 等 或自定义
Temperature range -65 to + 165 ° C (PE Cable -40 to + 85 ° C)
Vibration MIL-STD-202, Method 213
Characteristic impedance 50Ω
Frequency range DC ~ 12.4GHz (semi-rigid cable 0 ~ 18GHz)
Operating voltage 335V max (rms)
Withstanding voltage 1000V rms (sea level minimum)
Contact resistance
Between the inner conductor ≤ 3 mΩ
Between the outer conductor ≤ 2 mΩ
Insulation resistance ≥ 5000 MΩ
Insertion loss ≤ 0.15 dB / 6GHz
Voltage VSWR than the straight soft cable ≤ 1.10 +0.002 f
Semi-rigid cable ≤ 0.05 + 0.001f
Curved flexible cable ≤ 1.20 + 0.003f
Semi-rigid cable ≤ 1.10 +0.001 f
Durability ≥500 times (cycles)
Shell brass plated hard gold
Pin brass plated with hard gold
Socket beryllium plated hard gold
Resilient contact piece Beryllium copper plated hard gold
Insulator polytetrafluoroethylene
Crimp Sleeve Copper alloy is nickel plated or gold plated
O – type seal silicone rubber 6146
