Description
SPECIFICATIONS
Brand Name: ALINSIN
Certification: None
High-concerned chemical: None
Model Number: MICRO USB
Origin: Mainland China
Voltage: None
电压: 1V 2V 4V 5V 12V 12V 等 或自定义
Description
Condition: Brand New

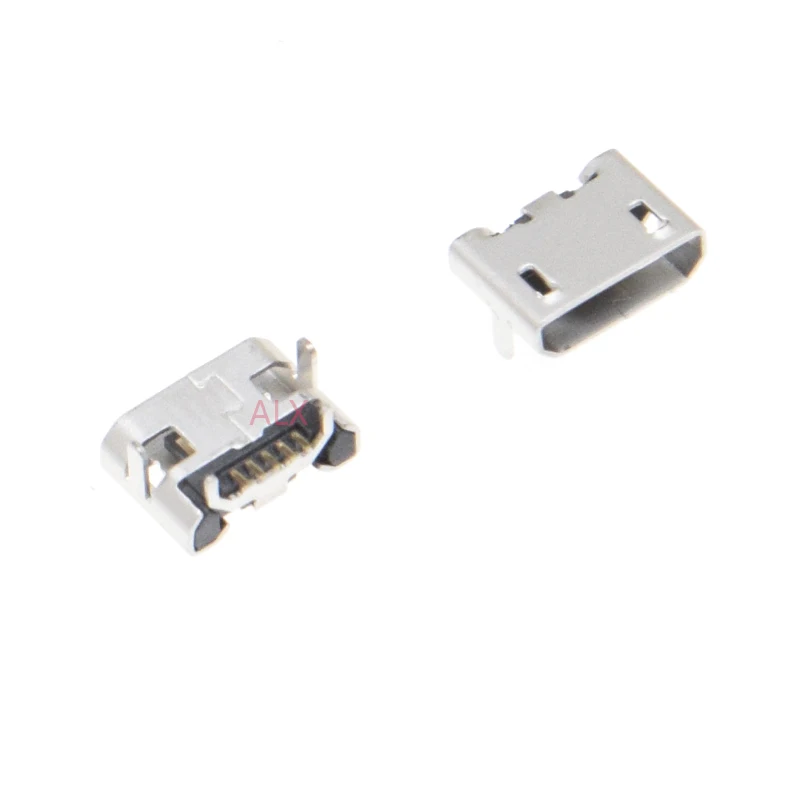

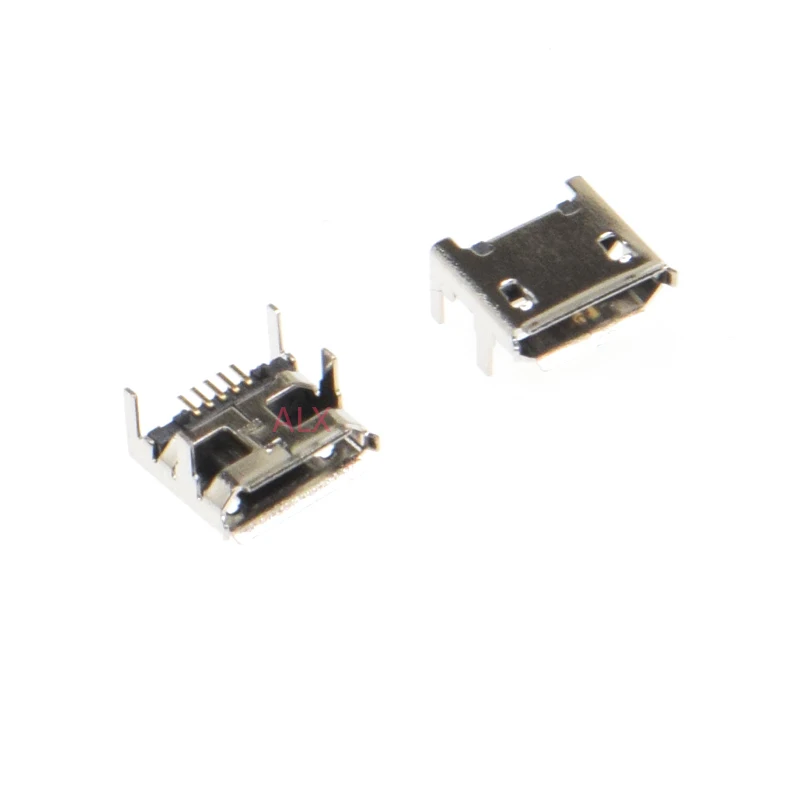

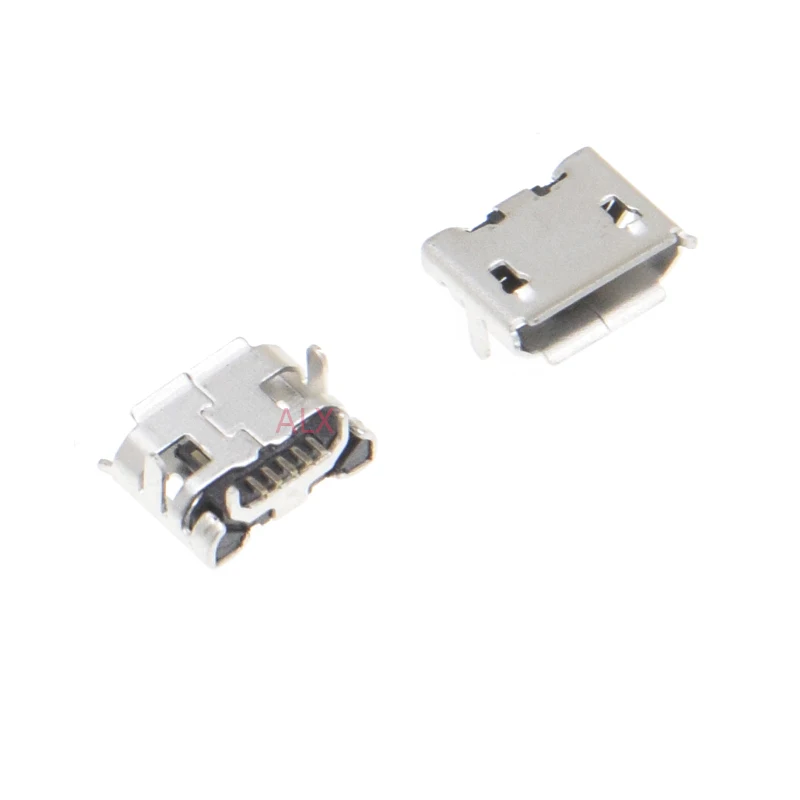

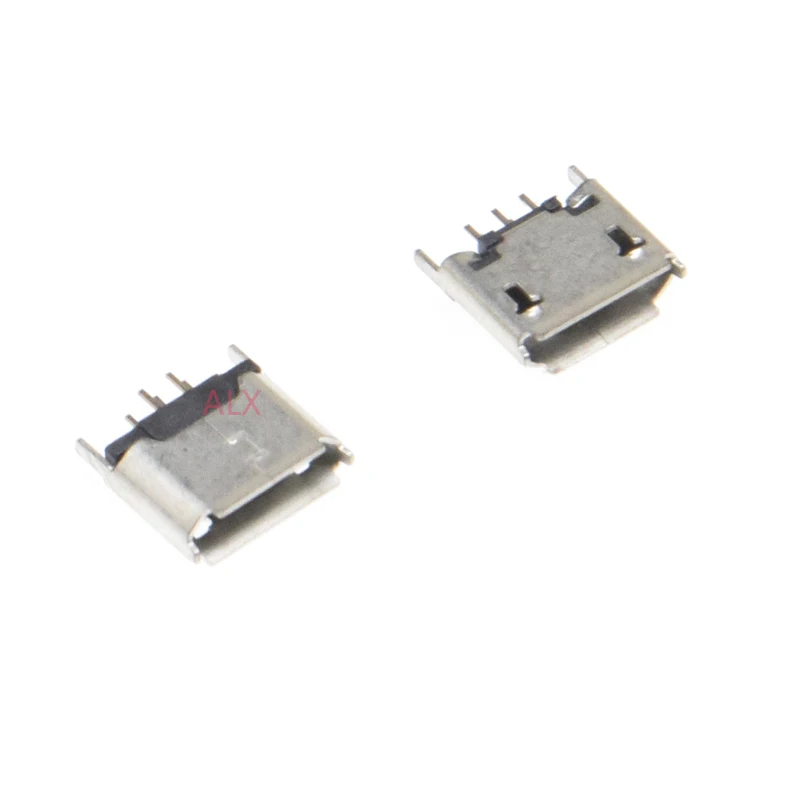

– Micro USB Jack Female Socket Connector , Used for mobile, MP3,MP4,camera repairing
Model: Micro USB 5Pin B type
SPECIFICATIONS:
Material:
Housing: High temperature
thermoplastic with g.f,UL94v-0
Contact: copper alloy,t=0.20mm
Shell: copper alloy,t=0.25mm
Specification:
Current rating: 1 A Max.
Dielectric withstanding
voltage: 100 V(ac) for 1 min.
Contact resistance: 50 mW Max.
Insulation resistance: 100 MW Min.
Total mating force: 3.57 Kgf Max.
Total unmating force: 1.0 Kgf Min.0.81~2.05
Kgf Min.after 10000 insertion/extration cycles
Temperature range: -30%%DC~80%%DC
Additional information
| Color | Micro Usb 8, Micro Usb 7, Micro Usb 10, Micro Usb 9, Micro Usb 4, Micro Usb 3, Micro Usb 6, Micro Usb 5, Micro Usb 2, Micro Usb 1 |
|---|
