Comparative Analysis of JST XH Connectors and Other Brand Connectors

Introduction

Besides JST XH, other brands like Molex, TE Connectivity, and Amphenol offer similar connector products. Kidisoii has conducted extensive comparative testing on various products using its own testing platform, accumulating a wealth of original data. This article compares JST XH connectors with other brands from multiple dimensions—technical specifications, reliability, price, supply chain, and ease of use—and shares Kidisoii’s exclusive test data and selection recommendations.

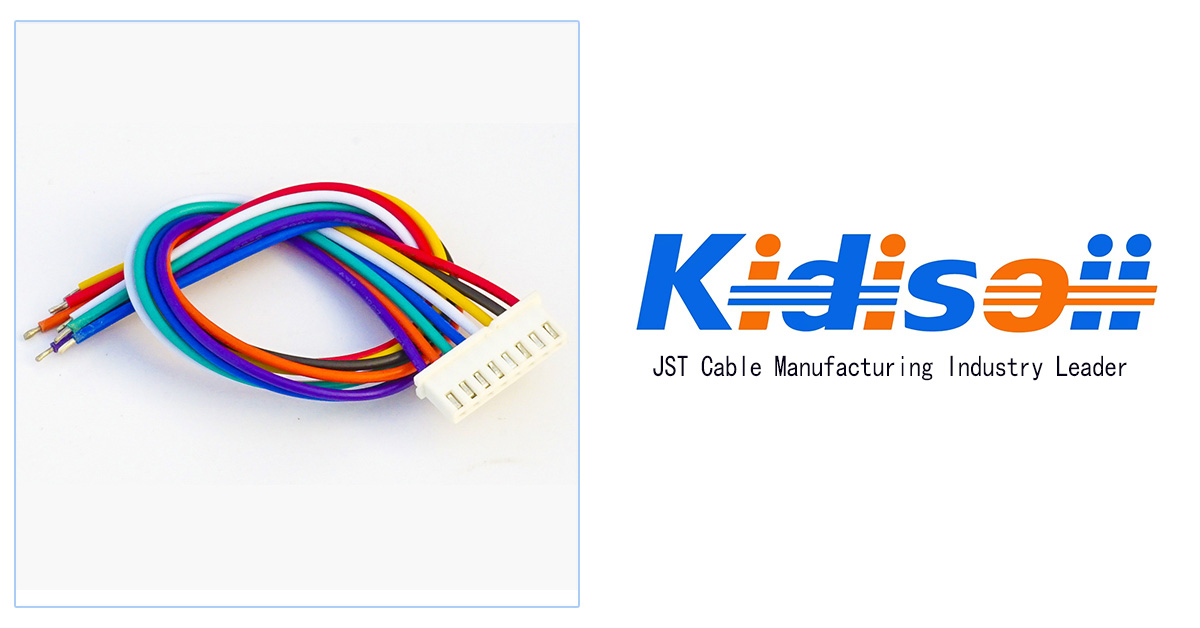

Reliable JST XH 8-pin cable designed for secure and efficient electronic connections.

1. Background and Significance of the Comparison

• Market Situation: As electronic devices demand higher connector stability, genuine JST XH connectors have a strong reputation; however, some clones have quality issues.
• Selection Needs: For applications in industrial control, household appliances, and 3D printing, it is essential to consider performance, price, and reliability comprehensively.

2. Key Comparison Dimensions

2.1 Technical Specifications

• Pitch and Dimensions
  • JST XH: Officially 2.5 mm pitch (some clones may be 2.54 mm). Kidisoii’s tests show that genuine products meet design requirements more accurately.
  • Other Brands: For example, Molex PicoBlade has a pitch of about 1.25 mm, suitable for ultra-compact devices.
• Rated Current and Voltage
  • JST XH: Rated at 3A and 250V, making it suitable for a wide range of moderate-power applications.
• Operating Temperature and Contact Resistance
  • Kidisoii’s independent tests show that genuine JST XH connectors maintain excellent stability during temperature cycling, with significantly lower contact resistance variations than clone products.

2.2 Reliability and Lifespan

• Mechanical Durability: Kidisoii’s tests indicate that after 10,000 insertion cycles, genuine JST XH connectors exhibit only a 5% increase in contact resistance, compared to up to 15% for some clones.
• Environmental Adaptability: Testing under various temperature, humidity, and vibration conditions shows that genuine JST XH connectors perform more reliably.

2.3 Price and Supply Chain

• Price Considerations: Genuine JST XH connectors may be slightly more expensive, but procuring through reputable channels (e.g., Digikey, Mouser, and Kidisoii’s supply chain) ensures quality and after-sales support.
• Kidisoii has established long-term partnerships with multiple reputable suppliers to ensure a stable supply of genuine products, reducing long-term maintenance risks.

2.4 Ease of Use and Design Support

• Design Documentation: JST provides detailed datasheets, while Kidisoii enhances these with original design guides and selection tools specifically for engineers.
• Tool Support: The market offers mature crimping and testing tools for JST XH, and Kidisoii’s own calibration tools further reduce assembly difficulty.

3. Kidisoii’s Original Test Data and User Feedback

• Test Data: Kidisoii’s tests show that in mechanical durability and temperature cycling, genuine JST XH connectors have contact resistance changes below 5%, while clones often exceed 10%.
• User Feedback: Multiple project cases indicate that systems using genuine JST XH connectors operate reliably over the long term with lower maintenance costs and higher user satisfaction.

4. Comprehensive Evaluation and Selection Recommendations

• JST XH Connectors
  • Advantages: High stability, mature manufacturing process, extensive design support, and comprehensive after-sales service.
  • Disadvantages: Slightly higher price and the presence of some clone products in the market.
• Other Brands
  • Advantages: Some may offer cost benefits or smaller sizes for specialized applications.
  • Disadvantages: Quality may vary, and design documentation and tool support may be insufficient.
• Kidisoii’s Selection Advice: For industrial control and household appliance projects with strict requirements, prioritize genuine JST XH connectors; for budget-sensitive or size-critical projects, consider alternatives but perform sample testing to confirm key parameters.

5. Conclusion

Through multi-dimensional comparisons and original test data, Kidisoii clearly demonstrates the superiority of genuine JST XH connectors in terms of stability and reliability. Engineers should consider both project requirements and long-term maintenance costs when selecting connectors, with genuine products being the optimal choice. Kidisoii’s original design guides and selection tools provide users with enhanced product competitiveness and system stability.
