How to Properly Choose JST XH Connectors

Posted by kidisoii

On 04/03/2025

Comments Off

Introduction

Among the myriad connector products available, JST XH connectors are highly regarded for their excellent stability and widespread use. However, the market is full of clones that can easily cause confusion. Based on years of selection experience, Kidisoii has developed a complete selection process. This article provides specific, step-by-step guidance on choosing the right JST XH connector, sharing our practical experience and added value services.

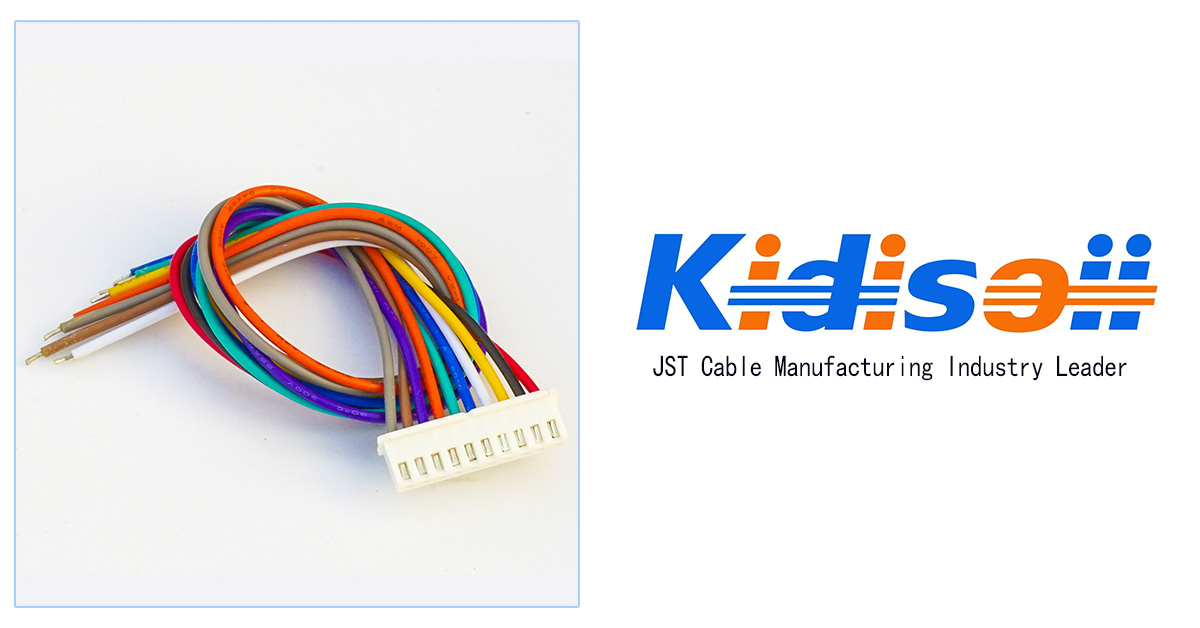

JST XH 10P cable featuring a high-quality 10-pin JST XH connector for stable and secure connections.

Reliable JST XH 10-pin cable designed for precise and durable electronic connections.

1. Preparation Before Purchasing

1.1 Clarify Application Requirements

Working Environment: Determine the ambient temperature, humidity, and vibration conditions.
Electrical Parameters: Specify the current, voltage, and signal requirements to ensure the selected connector meets system needs.
Mounting Style: Decide whether to use through-hole (TH) or surface-mount (SMT) based on your PCB design.

1.2 Create a Requirement List

List all key parameters (pitch, rated current, voltage, operating temperature, contact resistance).
Confirm the PCB drill sizes, mounting method, and board thickness.
Kidisoii offers an online selection tool to help users quickly generate a requirement list.

2. Parameter Analysis and Verification

2.1 Pitch and Dimensions

Pitch: Although the official pitch is 2.5 mm, some products on the market may be 2.54 mm. Kidisoii recommends purchasing genuine products from reputable channels to avoid pitch discrepancies.
Hole Size and Board Thickness: Verify that the PCB design matches the connector’s dimensions to ensure smooth installation.

2.2 Current and Voltage Specifications

Check the product datasheet for the rated current (typically 3A) and voltage (250 V) and leave some margin based on the actual load.

2.3 Operating Temperature and Durability

Ensure the connector can work reliably between –25°C and +85°C.
Kidisoii’s independently developed testing equipment can quickly evaluate the connector’s performance under temperature cycling.

3. Authenticity Verification and Procurement Channels

3.1 Authenticity Verification Tips

Examine the Packaging: Genuine packaging is clearly printed with complete product information and the JST logo.
Compare with Datasheets: Download the official JST datasheet and compare the product specifications.
Procure from Reputable Sources: Prefer suppliers like Digikey, Mouser, or JST Sales America; Kidisoii also provides genuine product guarantees and comprehensive after-sales service.

3.2 Kidisoii’s Selection Support

Kidisoii offers free online selection consulting and a case library that provides customized recommendations for applications in household appliances, 3D printing, remote-controlled models, etc. This helps customers make quick decisions.

4. Purchase Examples and Practical Advice

Example: For an industrial control board project requiring a 4-pin JST XH connector for stable power supply, engineers can use Kidisoii’s selection platform to verify product parameters and purchase genuine samples for testing.
The Kidisoii case library includes numerous successful examples that engineers can reference.

5. Conclusion

Proper selection of JST XH connectors requires clear requirements, precise parameter verification, and purchasing through reputable channels. Kidisoii’s original selection tools and consulting services offer full-process support—from selection to testing—ensuring the optimal connection solution for your project.
