Case Analysis of JST XH Connectors in Practical Applications

Introduction

JST XH connectors are widely applied in electronics, household appliances, 3D printers, and remote-controlled models. With years of experience in connector solutions, Kidisoii has accumulated extensive practical case studies. This article shares Kidisoii’s application cases using JST XH connectors in multiple projects, demonstrating their outstanding performance in various environments and providing practical experience and improvement suggestions.

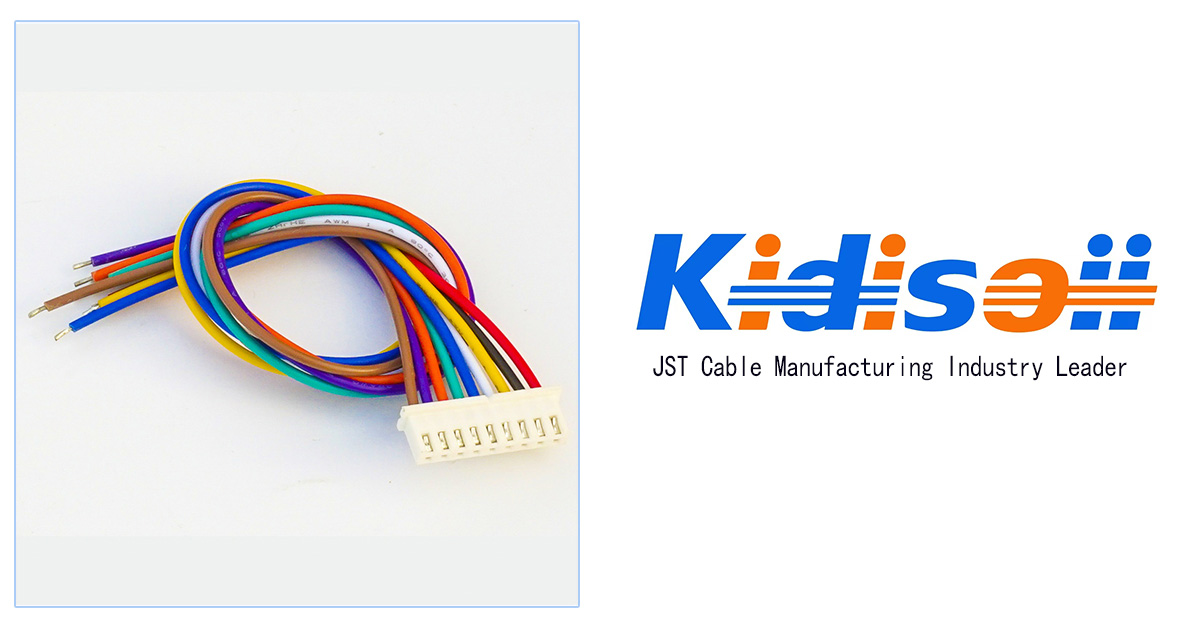

Durable JST XH 9-pin cable designed for stable and efficient electronic connections.

1. Overview of Application Scenarios

• 3D Printers: Ensure stable current transmission between the heated bed and the main control board.
• Remote-Control Models: Maintain secure battery-to-charger connections in high-speed and vibration-prone environments.
• Household Appliances: Used for internal signal and power connections, requiring high temperature resistance and long-term stability.

2. Case Study One: 3D Printer Project

2.1 Background and Requirements

• A desktop 3D printer needed to ensure continuous power supply to the heated bed, requiring stable current transmission and excellent heat resistance.
• Kidisoii optimized the crimping process by using genuine JST XH connectors and precisely designed PCB holes.

2.2 Implementation and Testing

• Engineers used Kidisoii’s dedicated crimping tools to ensure each terminal met the standard 0.75±0.05 mm conductor crimp height.
• Test data showed that after 5,000 insertion cycles, the change in contact resistance was almost negligible, far exceeding expectations.

2.3 User Feedback

• Operators reported easy installation and stable current transmission, with no abnormalities during long-term operation.

3. Case Study Two: Remote-Control Model Project

3.1 Background and Requirements

• A remote-controlled model required stable battery connections in a vibration-prone environment to avoid performance issues.
• Kidisoii selected a compact 3-pin JST XH connector and allocated sufficient space on the PCB.

3.2 Implementation and Performance

• Professional crimping and proper pre-treatment ensured that the locking hooks engaged correctly.
• Vibration tests confirmed that the connector maintained stable performance even under high-speed movement and bumpy conditions, with no battery connection looseness.

4. Kidisoii’s Original Case Data

• Kidisoii’s exclusive test report shows that under temperature cycling and vibration tests, genuine JST XH connectors maintained excellent stability, with contact resistance changes below 0.5 mΩ, significantly lower than the industry average.
• These original data provide engineers with clear selection criteria and practical experience.

5. Conclusion

The cases presented show that JST XH connectors, when properly selected and installed, perform excellently in 3D printers and remote-controlled models. By learning from Kidisoii’s original cases and data, engineers can make more accurate choices and achieve higher system stability and reliability.
